NO.7110121 22AWG 4C SOL Shielded FPLR-CL2R Fire Alarm Cables

22AWG 4/C SOL Shielded FPLR-CL2R

Fire Alarm Cables

NO.7110121

■ Cable Construction:

Conductor:

• 22 AWG Solid Bare Copper

• Nom.Dia:0.025''(0.64mm)

Dielectric:

• Type: Polypropylene

• Dia.over Dielectric: 0.036±0.004''nom.(0.91±0.10mm)

• Drain Wire: 0.51mm Solid Tinned-Copper

• Shield :0.001"(0.025mm) thick Aluminum/Mylar

Color Code:

• Blk

• Red

• Ylw

• Grn

Jacket:

• Type: PVC

• Color: Red

• Dia.over Jacket: 0.125''±0.006''(3.20±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110121 22AWG 4C 75C E××××××(UL) Shielded FPLR-CL2R

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

■ Electrical Properties:

Temperature: Rating -20℃ ~ +75℃

Operating Voltage: 300 Volts max

Capacitance: 20 pf/ft nom

Impedance: 100 Ohms nom

DC Resistance: 17.0 Ohms/M' at 20℃

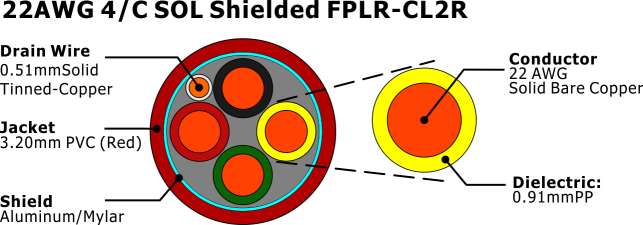

■ Cross Section:

■ Order Information:

Package: Inquired Length on Reel, Pull Box ,Plastic Spool ,Wooden Spool ,Pallet

Delivery Time: Normally 25 days after receiving the deposit.

Brand: HELLOSIGNAL®OEM (Original Equipment Manufacturer)
