UL 1424 FPL Unshielded
hellosignal
7110254
Fire Alarm Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
18AWG 8/C STR Unshielded FPL-DB Fire Alarm Cables NO.7110254 | |||||||
Cable construction : | |||||||
Conductor: | |||||||
18AWG Stranded Bare Copper | |||||||
18 AWG : 7/26, 16/30, 19/30, 41/34, 65/36 | |||||||
Nom.Dia:0.04''(1.02mm) | |||||||
Dielectric: | |||||||
Type:SRPVC | |||||||
Dia.over Dielectric: 0.085±0.004''nom.(2.16±0.10mm) | |||||||
Color Code: | |||||||
1.Blk | 2.Red | 3.Ylw | 4.Grn | ||||
5.Brn | 6.Blu | 7.Ppl | 8.Pnk | ||||
Jacket: | |||||||
Type: PVC (DB-Directly Bury) | |||||||
Color: BLK | |||||||
Dia.over Jacket: 0.375''±0.006''(9.52±0.15mm) | |||||||
Print Legend: | |||||||
HELLOSIGNAL NO.7110254 18AWG 8C 60C E××××××(UL) STR Unshielded FPL-DB SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | |||||||
Electrical Properties : | |||||||
Temperature Rating | -20℃ ~ +60℃ | ||||||
Operating Voltage | 300 Volts max | ||||||
Capacitance | 19 pf/ft nom | ||||||
Impedance | 103 Ohms nom | ||||||
DC Resistance | 6.5 Ohms/M' at 20℃ | ||||||

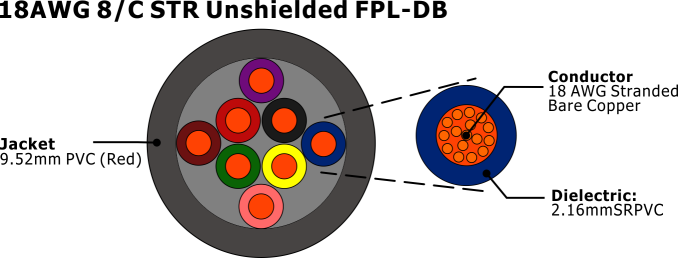

Cross Section : | |||||||
| |||||||
Order Informations : | |||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||||||
Delivery time | Normally 25 days after received the deposit. | ||||||
Brand | HELLOSIGNAL® OR OEM | ||||||
