No.7110251 18AWG 2/C STR Unshielded FPL-DB Fire Alarm Cables

Cable construction :

Conductor:

18AWG Stranded Bare Copper

18 AWG : 7/26, 16/30, 19/30, 41/34, 65/36

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: SRPVC

Dia.over Dielectric: 0.085±0.004''nom.(2.16±0.10mm)

Color Code:

1.Blk

2.Red

Jacket:

Type: PVC (DB-Directly Bury)

Color: BLK

Dia.over Jacket: 0.295''±0.006''(6.6±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110251 18AWG 2C 60C E××××××(UL) STR Unshielded FPL-DB

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +60℃

Operating Voltage

300 Volts max

Capacitance

19 pf/ft nom

Impedance

103 Ohms nom

DC Resistance

6.5 Ohms/M' at 20℃

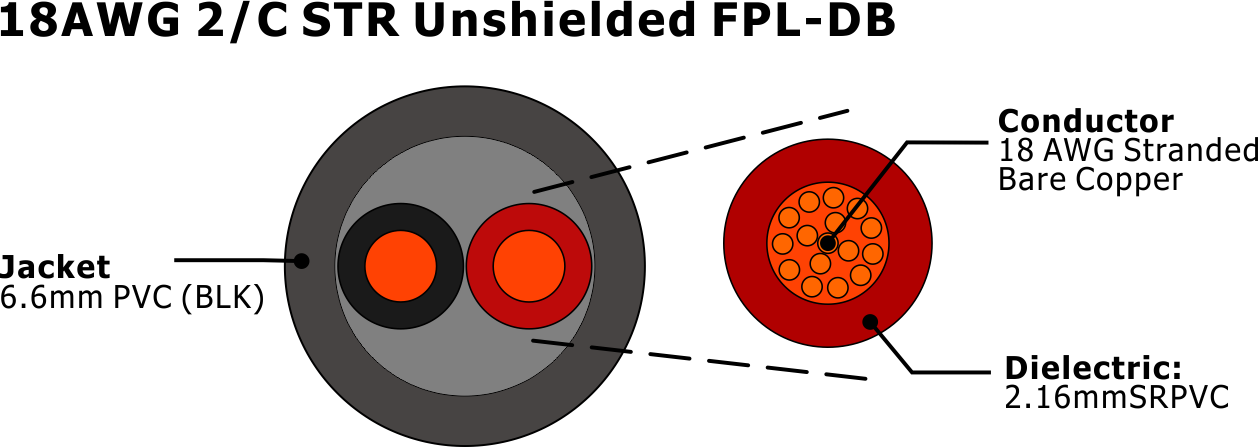

Cross Section :

Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
