UL 1424 FPL Unshielded
hellosignal
7110257
Fire Alarm Cable
75 ohm
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
14AWG 2/C STR Unshielded FPL-DB Fire Alarm Cables NO.7110257 | ||||||||
Cable construction : | ||||||||
Conductor: | ||||||||
14AWG Stranded Bare Copper | ||||||||
14 AWG : 7/22, 19/27, 41/30, 105/34 | ||||||||
Nom.Dia:0.064''(1.63mm) | ||||||||
Dielectric: | ||||||||
Type: SRPVC | ||||||||
Dia.over Dielectric: 0.110±0.004''nom.(2.79±0.10mm) | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | |||||||
Jacket: | ||||||||
Type: PVC (DB-Directly Bury) | ||||||||
Color: BLK | ||||||||
Dia.over Jacket: 0.310''±0.006''(7.87±0.15mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110257 14AWG 2C 60C E××××××(UL) STR Unshielded FPL-DB SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | -20℃ ~ +60℃ | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 23 pf/ft nom | |||||||
Impedance | 84 Ohms nom | |||||||
DC Resistance | 2.5 Ohms/M' at 20℃ | |||||||

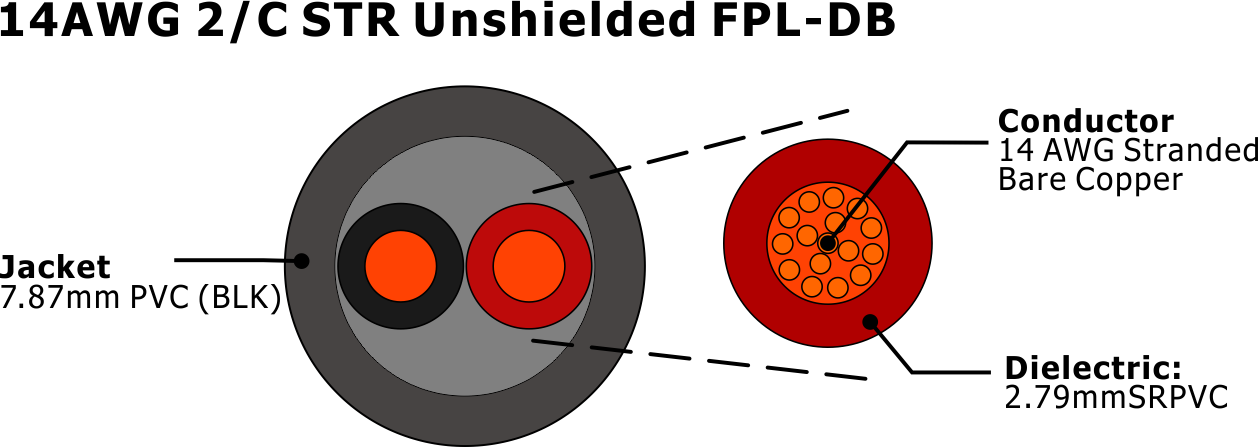

Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
14AWG 2/C STR Unshielded FPL-DB Fire Alarm Cables NO.7110257 | ||||||||
Cable construction : | ||||||||
Conductor: | ||||||||
14AWG Stranded Bare Copper | ||||||||
14 AWG : 7/22, 19/27, 41/30, 105/34 | ||||||||
Nom.Dia:0.064''(1.63mm) | ||||||||
Dielectric: | ||||||||
Type: SRPVC | ||||||||
Dia.over Dielectric: 0.110±0.004''nom.(2.79±0.10mm) | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | |||||||
Jacket: | ||||||||
Type: PVC (DB-Directly Bury) | ||||||||
Color: BLK | ||||||||
Dia.over Jacket: 0.310''±0.006''(7.87±0.15mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110257 14AWG 2C 60C E××××××(UL) STR Unshielded FPL-DB SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | -20℃ ~ +60℃ | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 23 pf/ft nom | |||||||
Impedance | 84 Ohms nom | |||||||
DC Resistance | 2.5 Ohms/M' at 20℃ | |||||||
Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
