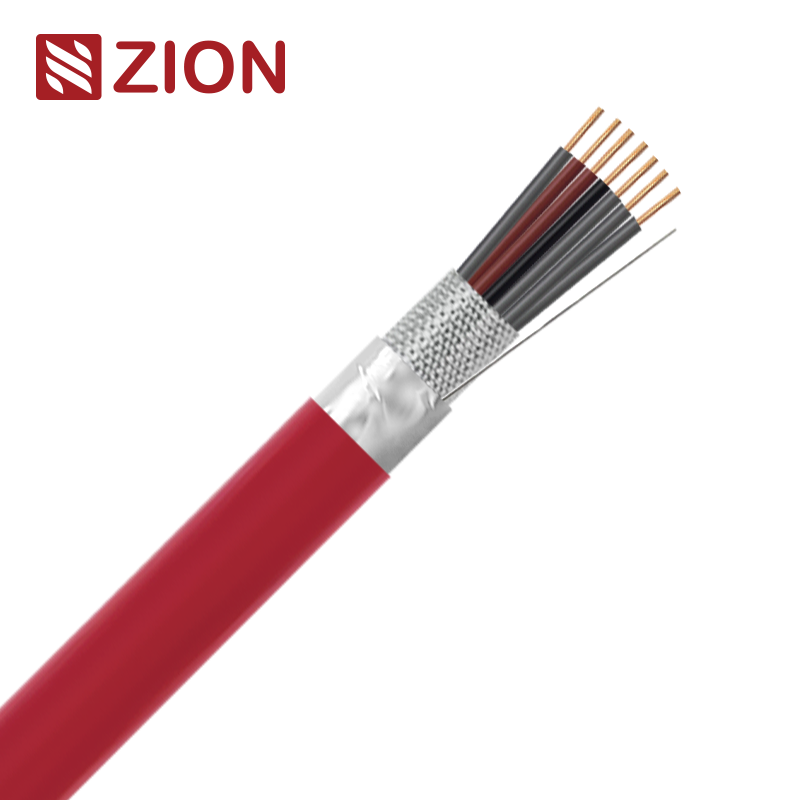

NO.7110467 PH120 12×1.5mm² Fire Alarm Cables

CABLE CONSTRUCTION:

Conductor:

1.5mm(sqmm) Plain annealed copper wire,
class 1,2 or 5 according to EN60228.

Insulation:

Fire resistant silicone rubber
BS 6387 CWZ,EN 50200 PH120,IEC 60331

Dia.over Dielectric:12x(0.0102"(2.6 mm))

Insulation Color:

Brn/Blk/Whi

Flame Barrier:

Fibre Glass Tape

Drain Wire:

0.80 mm Solid tinned copper

Shield:

Aluminum PET (100% Coverage 20% overlapping)

Jacket:

FR-LSZH (Red or White)

Dia.over Jacket: 0.579''±0.006''(14.70±0.15mm)

HFFR EN 50290-2,BS7655 LTS1/LTS3,VDE 0207

Print Legend:

HELLOSIGNAL Fire Alarm Cable PH120 1.5mm² 12 Cores Class N

BC BS 50200:2006 NO.7110467 ××××M/FT

ELECTRICAL PROPERTIES(at20℃):

Min.Bend Radius:

8×Diameter

Min.Insulation resistance:

200 MΩ/km

Max.Working Temperature:

.-30℃~+90℃

Test voitage:

2000 V

Max.Operating voitage:

300 V / 600 V

Max.resistance of Cond:

Class1,2：12Ω/km

Class5：12.9Ω/km

Current Carrying Capacity:

Nominal Capacitance:

Cross Section :

Test Standards

Flame Tests

Insualtion Integrity

Smoke Density

Corrosive Gas Easurement

BS 4066 part 1 & 3

IEC 60331

BS 7622

BS EN 50267-2-2

EN 50266-2-4

BS 6387 CWZ

IEC/EN 61034

IEC 60754-2

IEC 60332-3-24

EN 50200 PH120

HD 606

BS 6425

IEC/EN 60332-1

Order Informations :

Package

100M/Wooden Spool,200M/Wooden Spool,500M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
