1. Divide the route into three review zones

Record where the cable approaches the building, where it penetrates the boundary and where it terminates inside. Include underground ducts, exposed walls, entry rooms, risers and equipment spaces where applicable. A single description such as outdoor cable to cabinet hides important differences along the route.

Keep environmental exposure separate from building-code or project approval. Water resistance, UV resistance and temperature capability address different conditions from flame-performance classification. Neither a black jacket nor a generic indoor/outdoor label establishes all required properties.

2. Identify who confirms the applicable requirements

Ask the project engineer or responsible local specialist to identify the requirements for the actual building and route. Record the jurisdiction, specification reference and any necessary approval. Do not import a permitted entry distance or cable designation from another country or a different occupancy type.

FOA guidance discusses the need to address outside-plant cable when it enters buildings and describes product-specific transition approaches. Use that as a planning prompt, not a substitute for current local requirements. This purchasing checklist deliberately does not prescribe one universal indoor penetration length.

FOA outside-plant installation guidance

3. Compare product evidence with both route environments

Request the exact cable part number and datasheet, together with the required classification or test evidence. Check operating and installation temperature separately where the manufacturer distinguishes them. Confirm whether the construction is suitable for the planned duct, exposed, aerial or indoor pathway.

Low-smoke or halogen-free wording alone does not establish a particular building installation classification. Likewise, an outdoor water-blocking feature does not establish indoor fire performance. Record what each document actually supports and ask for missing evidence before accepting a material substitution.

Outdoor Fiber Deployment Solution

4. Choose an approved transition arrangement

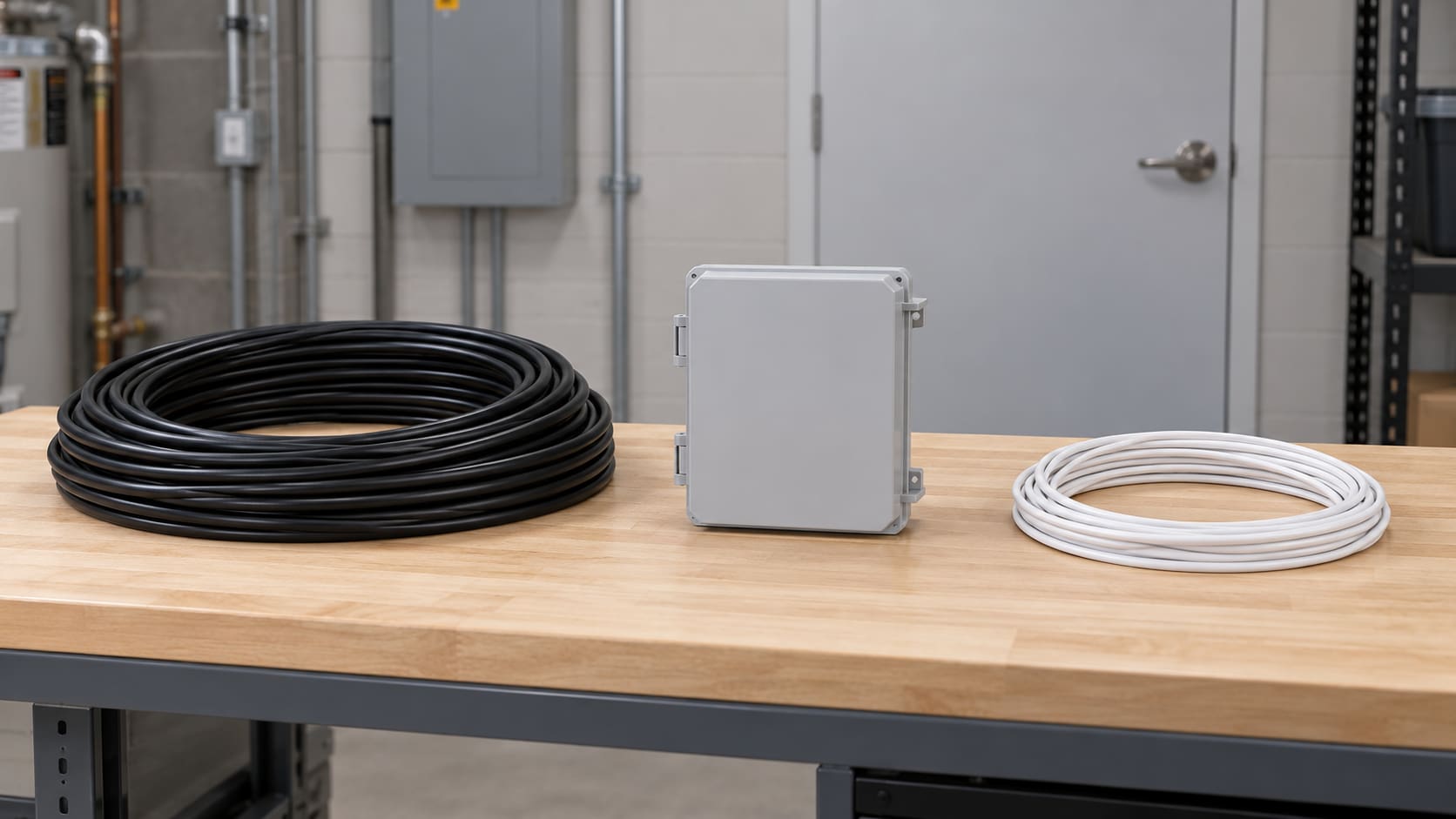

Depending on the design and product evidence, the route may use a cable approved for both environments or transition to a different cable near the entrance. A transition can involve splicing or a connectorized interface, each requiring suitable space, protection and maintenance access.

Some cable designs provide a removable outer jacket for a specified transition procedure. Do not strip the jacket of an ordinary outdoor cable to imitate that design. Obtain the instructions for the exact product and confirm what protection and classification remain after the specified preparation.

5. Review the entry opening and termination hardware

Record cable dimensions, connector protection size where relevant, entry orientation and the available routing space. Select glands, seals and enclosure entries for the actual cable geometry. Plan strain relief and bend management without forcing the cable or its connector through an unsuitable opening.

Weather sealing and firestopping serve different functions. Where a rated boundary is involved, the responsible designer should specify the applicable approved penetration system; an enclosure or generic sealant is not proof of a compliant firestop. For metallic cable elements, confirm any bonding requirements through the electrical design.

6. Confirm the optical interface and acceptance plan

For a fiber transition, specify fiber type, count, connector family and polish, splice or adapter arrangement and the final equipment interface. Include added connections or splices in the optical design. A physically fitting connector does not establish the intended optical compatibility or link performance.

Agree which inspections and tests are required after installation and how results will be identified. Link the route section, enclosure, cable ends and acceptance records. Keep evidence of the approved entry arrangement with the final documentation, especially if a concealed penetration will be inaccessible later.

7. Release a route-based purchasing package

Provide the supplier with the three-zone route table, approved cable requirements, length definitions, endpoint interfaces and the transition bill of materials. Identify who supplies the enclosure, compatible seals, adapters, pigtails or patch cords. Quantities should follow the approved connection arrangement, not a generic kit photograph.

Record open questions as release conditions with an owner. Check the supplier response against the project specification before ordering. ZION product FAQs can support initial product questions; the final selection still depends on the exact product documentation and the local project approval.
