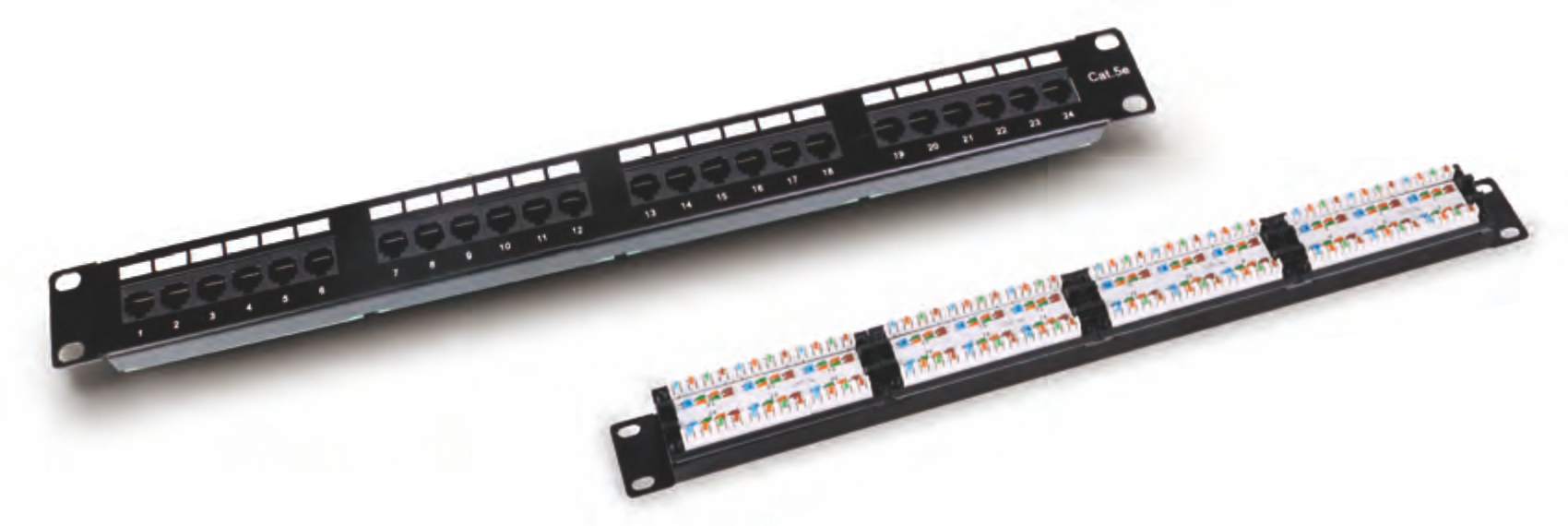

Patch Panels ZCPP197 N5 N6 N7 N8

Cat5e patch panel

Features

Order Information

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ The internal PCB is directly screwed onto the iron panel. The
  whole product is strong and stable without any looseness.
∙ Dual IDC.

Item No.

Description

ZCPP197-24N5-1U5E

Cat5e 19",1U,24 ports

ZCPP197-48N5-2U5E

Cat5e 19",1U,48 ports

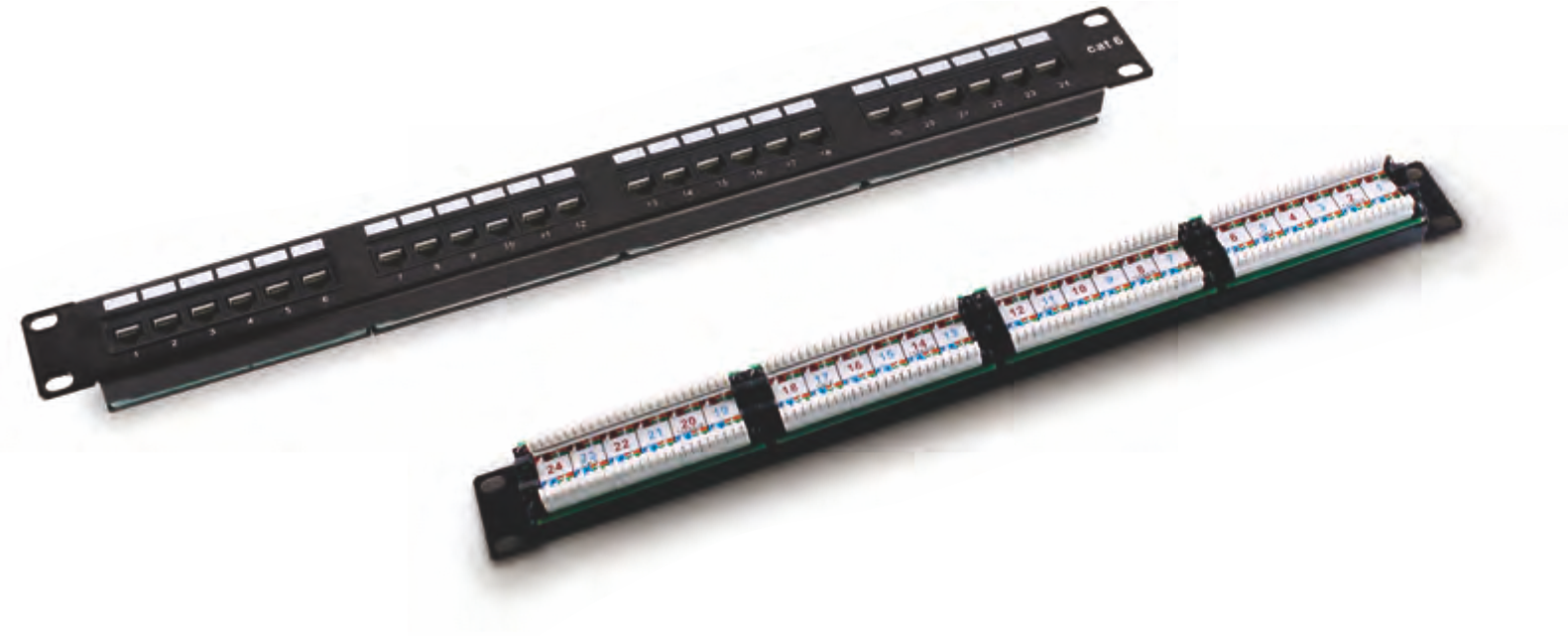

ZCPP197N6

Cat.6 patch panel

Features

Order Information

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ The internal PCB is directly screwed onto the iron panel. The
  whole product is strong and stable without any looseness.
∙ Dual IDC.

Item No.

Description

ZCPP197-24N6-1U6

Cat6 19",1U,24ports

ZCPP197-48N6-2U6

Cat6 19",2U,48 ports

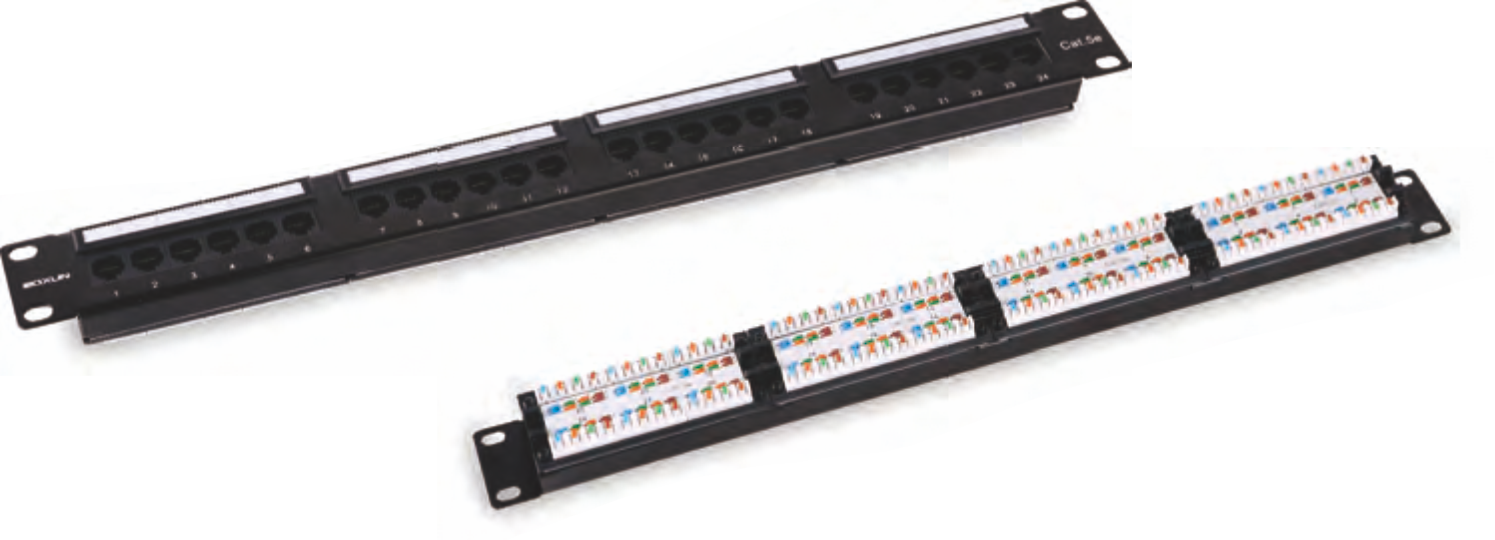

ZCPP197N7

Cat5e patch panel

Features

Order Information

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ The internal PCB is directly screwed onto the iron panel. The
  whole product is strong and stable without any looseness.
∙ Dual IDC.
∙ Slide label field.

Item No.

Description

ZCPP197-24N7-1U5E

Cat5e 19",1U,24 ports

ZCPP197-48N7-2U5E

Cat5e 19",1U,48 ports

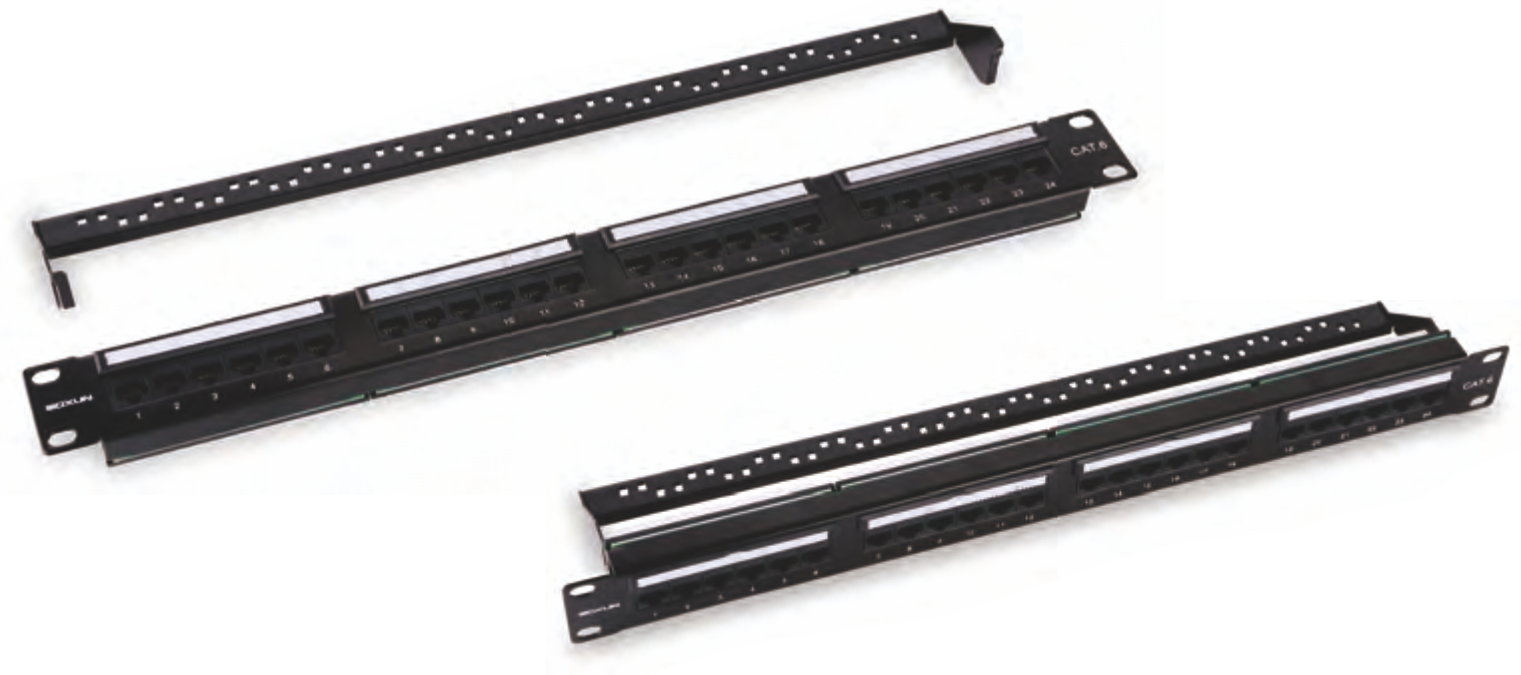

ZCPP197N8

Cat.6 patch panel

Features

Order Information

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ The internal PCB is directly screwed onto the iron panel. The
  whole product is strong and stable without any looseness.
∙ Dual IDC.
∙ Slide label field.

Item No.

Description

ZCPP197-24N8-1U6

Cat6 19",1U,24ports

ZCPP197-48N8-2U6

Cat6 19",2U,48 ports
