24-Port Shielded Copper Cabling Platform

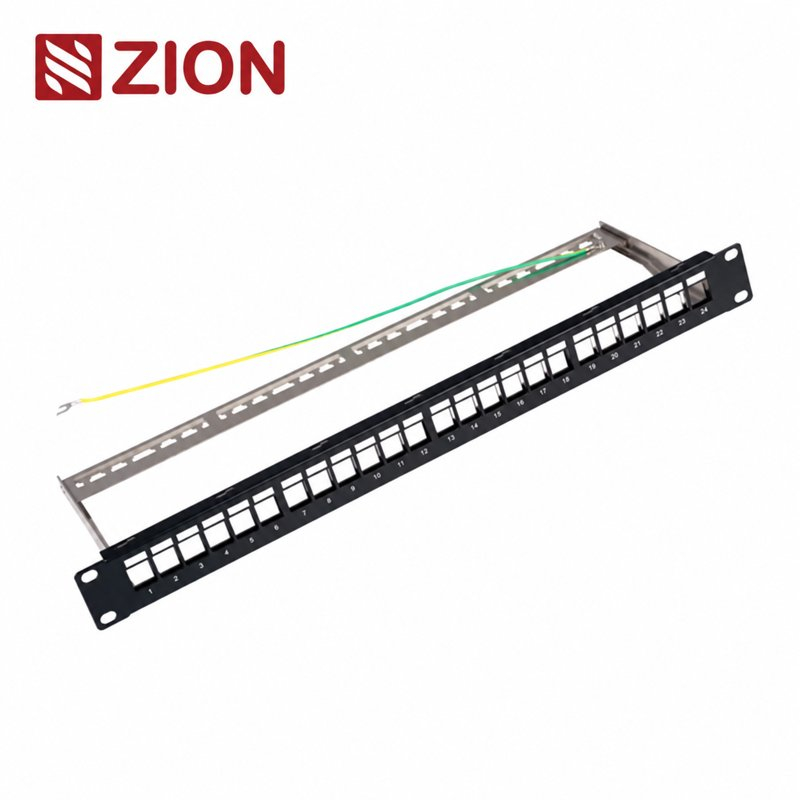

ZCPPF6A-1U24-KJ-B1 is a modular 19-inch 1U patch panel for structured shielded copper cabling. Its 24 snap-in positions accept compatible shielded keystone jacks, enabling Cat5e, Cat6 or Cat6A configurations around the project’s channel requirements.
A black SPCC front panel, silver rear support bar and grounding leads provide a practical platform for cabinet installation, cable organization and shield continuity planning.
Panel Design and Cable Management
The black metal front panel and silver support bar provide a rigid structure for standard rack mounting.
Individual module openings simplify installation, inspection and replacement of compatible shielded keystone jacks.
The rear bar organizes cable routing while grounding leads support shielded-system bonding design.
Key Benefits
Designed for compatible shielded modules and grounded copper-cabling architectures.
Configure the panel with compatible shielded Cat5e, Cat6 or Cat6A keystone jacks.
Snap-in positions let technicians replace individual jacks without changing the full panel.
Front labels and inlaid marks support numbering and ongoing network administration.
Unused openings can accept compatible blank dustproof stoppers for a finished appearance.
The 19-inch 1U format integrates into common network cabinets and equipment racks.
Typical Applications
- Cat6A shielded structured cabling in enterprise equipment rooms.
- Data center rack and cabinet copper termination fields.
- Industrial and commercial networks where shielded links are specified.
- Security, wireless access point and IP device cabling.
- New installations, phased expansion and network retrofit projects.
Selection Guide
Select shielded jacks, cable and patch cords that match the required Cat5e, Cat6 or Cat6A channel.
Verify module width, latch structure and termination depth before committing to a bulk order.
Confirm rack bonding, patch-panel grounding and local installation requirements for the complete shielded system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Empty shielded modular patch panel |
| Model / SKU | ZCPPF6A-1U24-KJ-B1 |
| Rack format | 19-inch, 1U |
| Port capacity | 24 ports |
| Module compatibility | Compatible shielded Cat5e, Cat6 and Cat6A keystone jacks |
| Panel material | SPCC |
| Finish | Black front panel with silver rear support bar |
| Cable management | Rear support bar |
| Grounding | Grounding leads provided on product structure |
| Module mounting | Snap-in structure |
| Port identification | Front labels and inlaid identification marks |
| Unused ports | Compatible with optional blank dustproof stoppers |
| Standard contents | Patch panel and cable-management hardware; keystone jacks not included |
Packing Information
Standard packing is 1 piece per inner box and 10 pieces per carton. The listed inner-box size is 51 × 10 × 5.5 cm, and the listed carton size is 53 × 42.5 × 30.5 cm.
Confirm module configuration, product labels, carton marks, samples and required documentation before production.
RFQ Checklist
Need a configuration check?
Send ZION your cable category, shielded keystone jack, rack layout, grounding plan and project quantity for compatibility review.
FAQ
Are shielded keystone jacks included with this patch panel?
No. The standard product is an empty shielded patch panel, and keystone jack modules are not included in the standard packaging.
Which modules fit model ZCPPF6A-1U24-KJ-B1?
The panel is designed for compatible shielded Cat5e, Cat6 and Cat6A keystone jacks. Confirm module dimensions and latch design before ordering.
Does the panel include cable management?
Yes. The panel includes a silver rear support bar and grounding leads for organized shielded cable routing.
Can unused ports be covered?
Yes. Compatible blank dustproof stoppers can be installed in unused module positions.
What should be included in an RFQ?
Provide the model, required cable category, shielded keystone jack type, empty or loaded configuration, quantity, labeling, grounding and packing requirements.
