Pole-Based Cable Storage Brackets Cable Storage Assembly

1. Use:

Cable Storage Assembly is used for storage of reserved optical fiber cable.
it is divided into inserted type storage and outside coil type storage.

2. Model:

Name

Model

Dimension

Collocation

Suitable Cable Range

Diameter(mm)

Weight(kg)

Cable
Storage
Assembly

ZC-TJY 660-T

660

4.1

Small splint

Applicable to OPGW optical cable

ZC-TJY 900-T

900

7.7

Small splint

Applicable to OPGW optical cable

ZC-TJY 1030-T

1030

11.8

Small splint

Applicable to OPGW optical cable (OD＞15mm）

Cable
Storage
Assembly

ZC-TJY 660-H

660

4.1

Small splint

Applicable to ADSS optical cable

ZC-TJY 900-H

900

7.7

Small splint

Applicable to OPGW optical cable

ZC-TJY 1030-H

1030

11.8

Small splint

Applicable to OPGW optical cable (OD＞15mm）

Explain:
1.T - G for tower - s * for pole - type of stainless steel band hoop
2.When the residual cable frame is used for the installation on the tower, two pairs of small splints are provided.
When the residual cable bracket is used for pole installation, two sets of pole supports are provided.

3. Accessories for Cable Storage Assembly

Support for Pol

Small Splint

Purpose: the pole support for the residual cable frame is used for fixing the residual cable frame on the pole; the small splint is used for fixing the residual cable frame on the tower.

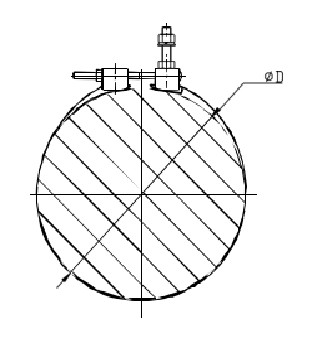

Specification of support for pole of cable support

Name

Model

Core No.

Weight (kg)

Material

Support for Pole

ZC-TJY-H1

150-310

0.48

Stainless Steel Strip

Support for Pole

ZC-TJY-H2

311-460

0.52

Support for Pole

ZC-TJY-H3

461-600

0.57

Support for Pole

ZC-TJY-H4

601-800

0.62

Support for Pole

ZC-TJY-H5

801-1000

0.72

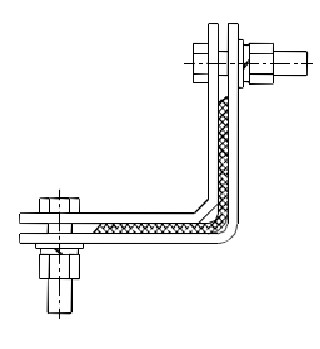

Specification of small splint

Name

Model

Angle Iron Dimension for Iron Tower (mm)

Weight (kg)

Material

Small Splint

ZC-TJB-70

≤70

1.02

Hot dip galvanized steel

Small Splint

ZC-TJB-100

71-100

1.22

Hot dip galvanized steel

Small Splint

ZC-TJB-150

101-150

1.61

Hot dip galvanized steel
