Quick answer

YY, CY, and SY are widely used trade names for flexible control and interconnection cables, but they do not define one universal construction or performance level.

• YYNormally refers to an unscreened multicore control cable.
• CYNormally adds an overall copper-wire braid for electromagnetic screening.
• SYNormally uses an overall galvanised steel-wire braid and is commonly offered for applications exposed to greater mechanical stress.

CY is the usual starting point when EMC screening is required. SY may add mechanical robustness, but its steel braid is not equivalent to the copper screen of CY, is not a substitute for recognised armour, and must not automatically be used as a protective conductor. The final choice must be based on the exact cable datasheet and the installation rules that apply to the project.

What the YY, CY, and SY names actually tell you

The names are useful construction clues, not complete specifications. Products sold under the same family name can differ in conductor class, braid material and coverage, insulation, sheath compound, voltage rating, temperature range, bend radius, oil resistance, flame performance, approvals, and permitted movement.

This distinction is especially important in the UK. Current IET guidance explains that YY, CY, and SY are not governed by a single construction standard listed for general use in BS 7671. When such a cable is specified as part of an electrical installation, the designer must establish that it is suitable and document any required departure or special agreement. A statement such as “generally to” a standard should not be read as full compliance with a construction standard for the complete cable.

Structural and functional comparison

These are typical market constructions. Check the exact ZION part number before dimensions, ratings, environmental performance, or compliance are quoted.

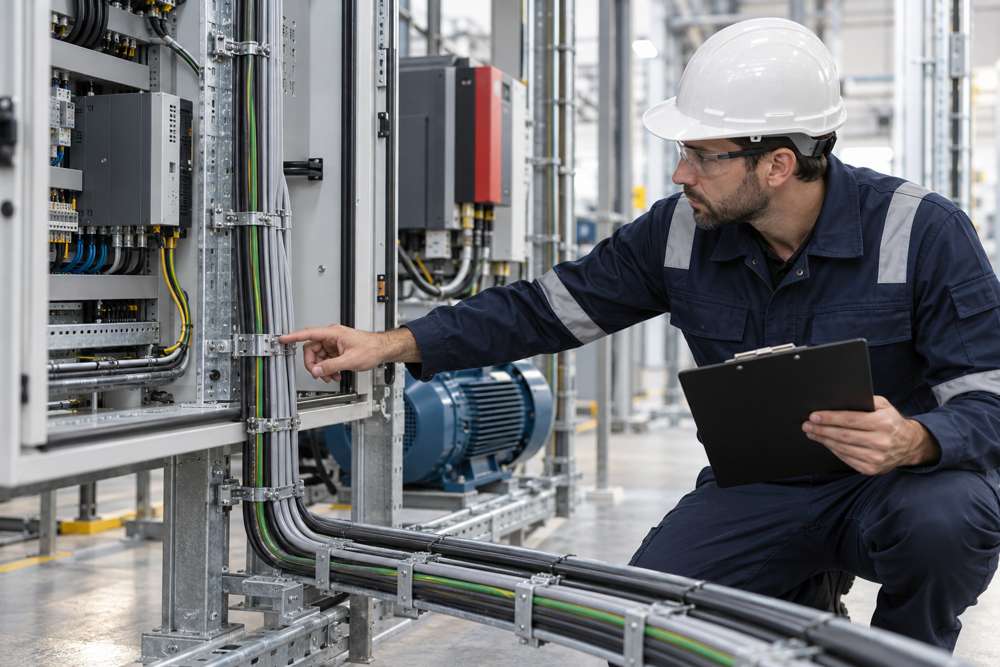

Choose according to the actual risk

When YY may be suitable

YY is a practical candidate for control cabinets, machine interconnections, relay circuits, and discrete I/O where the route is protected and the connected equipment does not require a screened cable. It is often the simplest option to terminate, but an unscreened construction should not be selected until nearby motors, contactors, drives, power conductors, and switching equipment have been considered.

When CY may be suitable

CY is commonly considered for analog measurements, low-level sensor signals, communication or control circuits, and other wiring that may be susceptible to electromagnetic interference. Its effectiveness depends on braid coverage, transfer impedance or other published screening data, cable routing, equipotential bonding, and the termination method.

A copper braid does not eliminate noise by itself. Follow the connected-equipment manufacturer's instructions, keep the screen connection low impedance, and use 360-degree termination where the equipment design calls for it. A long pigtail can significantly reduce high-frequency screening performance.

When SY may be suitable

SY may be considered for machine and plant interconnections exposed to moderate mechanical stress, provided the manufacturer permits the intended environment and movement. The steel-wire braid can add robustness, but the cable should not be described as equivalent to steel-wire-armoured cable unless the exact product is certified and rated for that purpose.

Before specifying SY, identify the actual hazard: abrasion, impact, crushing, pulling force, repeated flexing, outdoor exposure, moisture, burial, or rodent attack. A steel braid does not prove suitability for all of these conditions, and a generic SY cable is not automatically suitable for direct burial or continuous-flex operation.

Important VFD distinction

“Near a VFD” can describe two very different circuits.

• Control, sensor, or communication cable near a drive: a screened CY-type control cable may be appropriate if its electrical ratings and the drive or controller instructions support it.
• Cable between a VFD and a motor: use the cable construction specified by the drive manufacturer. This often requires a symmetrical screened VFD or motor cable, suitable voltage and current ratings, an appropriate protective-earth arrangement, and 360-degree shield bonding. A generic CY or SY control cable should not be treated as an automatic substitute.

Application examples

• Protected control-panel wiring: YY may be sufficient when the equipment documentation permits an unscreened cable.
• Analog signal routed near switching equipment: CY may be appropriate when the screen design, separation, and bonding method are defined.
• Machine interconnection exposed to moderate mechanical stress: SY may be considered when the selected product's datasheet covers the hazard and environment.
• Outdoor, wet, or buried route: select only a cable specifically rated for the exposure; the YY, CY, or SY name alone is not evidence of suitability.
• Moving machine axis or drag chain: use a cable with verified continuous-flex, bend-radius, acceleration, travel, and service-life data. “Flexible” does not mean continuous-flex.

Selection checklist

A defensible selection starts with the circuit and installation, then ends with the exact part-number datasheet.

1. Define the circuit function: power, auxiliary control, analog, digital, communication, encoder, or VFD motor output.
2. Confirm operating voltage, current, core count, conductor size, and protective-conductor requirements.
3. Assess EMC exposure and read the connected-equipment manufacturer's cable and bonding instructions.
4. Identify mechanical hazards individually rather than relying on the presence of a braid.
5. Confirm whether the cable will be fixed, occasionally moved, flexed freely, or continuously flexed under forced guidance.
6. Check temperature, oil, chemicals, UV, water, fire performance, and indoor or outdoor conditions.
7. Verify bend radius, pulling limits, termination hardware, and gland compatibility.
8. Confirm the required construction standard, approvals, CPR classification where applicable, and local installation rules.
9. Review the exact manufacturer datasheet and part number before ordering.

Common specification mistakes

• Calling SY “armoured” without confirming that the selected product meets the project's armour and mechanical-protection requirements.
• Assuming any metallic braid is an effective EMC screen without published data or a termination plan.
• Using the braid as a protective conductor without verifying conductivity, fault-current capability, connection method, and the applicable installation rules.
• Treating a control cable as a VFD motor cable solely because it is screened.
• Assuming PVC, LSZH, outdoor, oil-resistant, or continuous-flex performance from the family name.
• Quoting a voltage, temperature, bend radius, or approval as if it applies to every YY, CY, or SY cable.

Information needed for a ZION recommendation

Provide the circuit type, voltage, current, core count, conductor size, route length, nearby interference sources, required screen termination, movement duty, bend radius, environmental exposure, fire-performance requirement, destination market, and applicable standards. With these details, ZION can compare available part-number data against the application instead of selecting from the family name alone.
