ZC-125/201/511 Fiber Network Unit

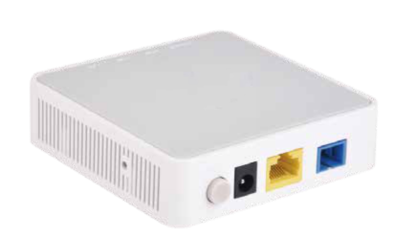

ZC-511XZ

Layer 3 Home Gateway/CPEfeatures with Hardware NAT, supports Route mode, etc

Transmission rate

ZC-511XZ model ONU is a user terminal device independently developed by BTPT
in line with such industrial background.The device has built-in two-layer switching function.

GPON:Uplink 1.244Gbps; downlink 2.488Gbps

EPON:Uplink 1.244Gbps; downlink 1.244Gbps

Standard

GPON working mode Compliance with
EEE802.3ah & itu-t g.984.x standard

lnterfaceparameters

1x10/100/10OOMbps auto adaptive Ethernet interfaces

Wireless

Layer 2 Switching, support 802.1Q VLAN, 802.1P Qos, Bandwidth Control, Spanning Tree, etc

POTS lnterface

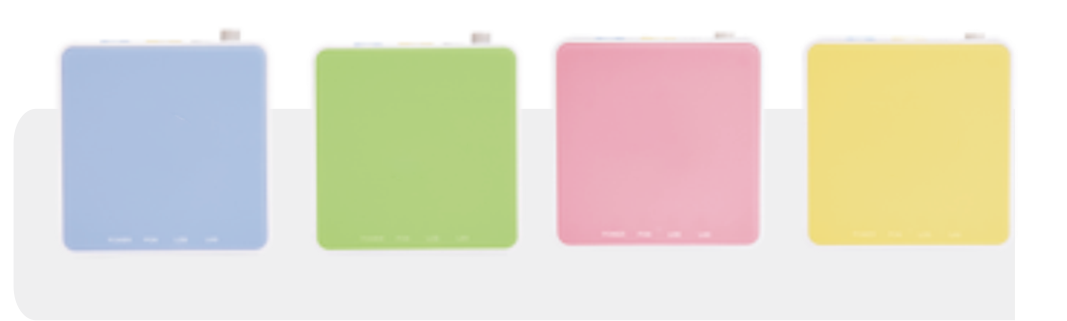

5+ colors available

Supports the configuration of Ethernet interface rates,working modes, MDI/MD1X auto-negotiation mode, andPause flow control

Model Type

SC/UPC

Optical Signal Access

1*EPON

User lnterface

1GE

●

●

●

●

●

●

lndicator Light

POWER/PON / LoS /LAN

LAN

WIFI

PON

LOS

OEM

ODM

Fiber Type

EPON

Ports

EPON

Power

12V DC 0.5A

Power adapter Input

100V~240V AC, 50Hz ~60Hz

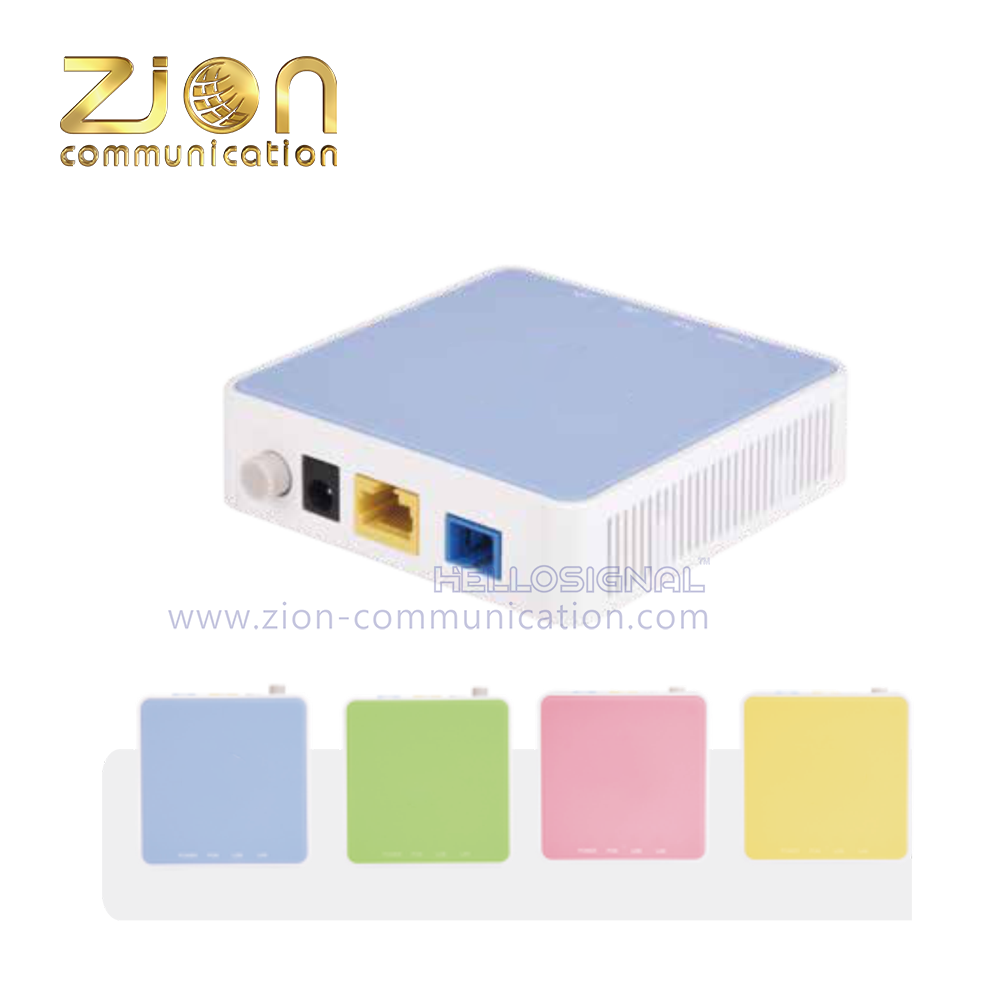

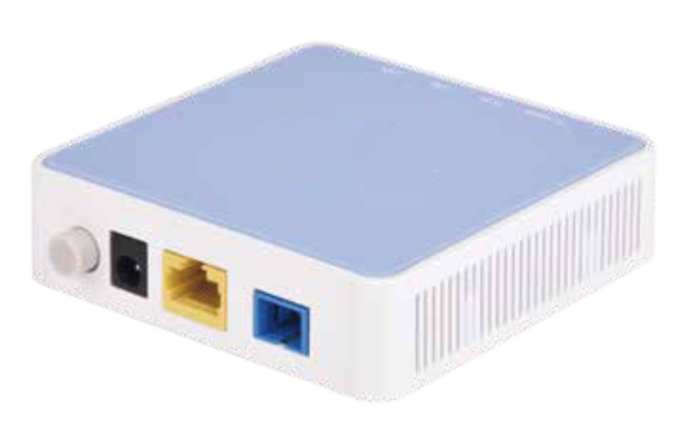

ZC-125E/G

High quality 1 port GE mini epon ONU for fiber optic network

Model Type

SC/UPC

Optical Signal Access

1*EPON

User lnterface

1GE

lndicator Light

POWER/PON / LoS /LAN

Fiber Type

EPON

Ports

EPON

Power

12V DC 0.5A

●

●

●

●

●

●

Power adapter Input

100V~240V AC, 50Hz ~60Hz

LAN

WIFI

PON

LOS

OEM

ODM

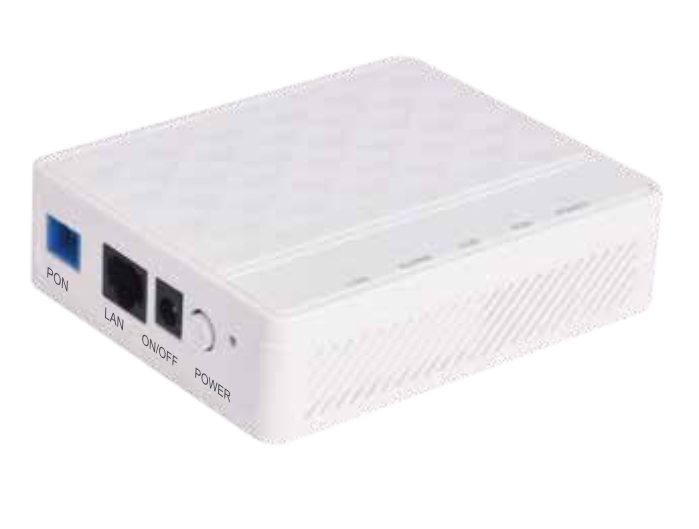

ZC-201GR

Layer 3 Home Gateway/CPE features with HardwareNAT, supports Route mode, etc

Model Type

FTTX Sollutions

Optical Signal Access

1*GPON

User lnterface

1GE

lndicator Light

POWER/PON / LoS /LAN

Fiber Type

GPON

Ports

GPON

Power

12V DC 0.5A

●

●

●

●

●

●

Power adapter Input

100V~240V AC, 50Hz ~60Hz

LAN

WIFI

PON

LOS

OEM

ODM

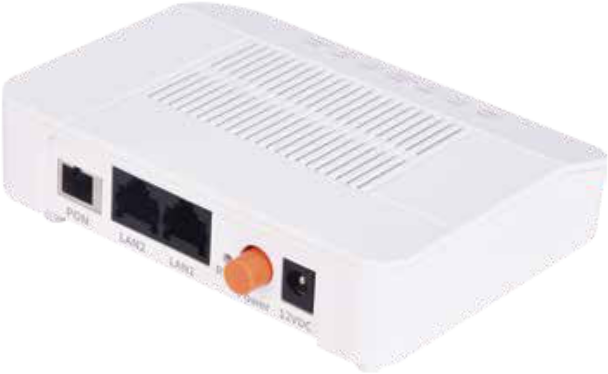

ZC-BCM6821

Layer 3 Home Gateway/CPE features with Hardware NAT,support Multiple WAN,
Route/Bridge mode, etc

Model Type

EPON-ONU-PX20+

Optical Signal Access

1*EPON

User lnterface

2FE

lndicator Light

POWER/PON/LOS/LAN1/LAN2

Fiber Type

EPON

Ports

EPON

Power

12V DC 0.5A

●

●

●

●

●

●

Power adapter Input

100V~240V AC, 50Hz ~60Hz

LAN

WIFI

PON

LOS

OEM

ODM

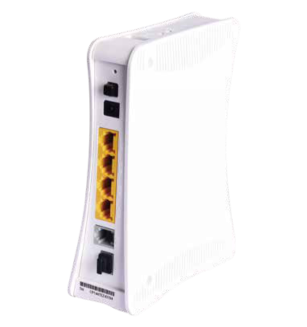

ZC-BCM6838

Provide 300Mbps 2.4GHz Wireless interface,support multiple ssID Settings

POTS Interface

Module type: GPON Class B+SC/PC
Working wavelength: up 1310nm, down 1490nm
TX Optical power value: 0.5~4dBm
RX Optical power sensitivity: -27dBm

Ethernet interface

lnterface type: RJ45
Interface parameters: 1*10/100/1000Mbps and 3*10/10OMbpsor 4*10/10OMbps auto adaptive Ethemnet interfaces

Wireless

Working mode:lEEE802.11 blg/n
Antenna pattern: 2*Built-in antenna
Antenna gain: 3dBi
Wireless bandwidth: Support 2OMHz/40MHz
lnterface rate: Maximum rate 300Mbps
SSID: Up to 4 sSID broadcasts are supported
