ZCFTB-08/12 Fiber OpticTreminal Box

  • Fiber Terminal Box

  • HELLOSIGNAL

  • ZCFTB-08/12

  • Fiber System Equipment

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:
Inquire

Fiber Terminal Box — ZCFTB-08/12

ZCFTB-08H

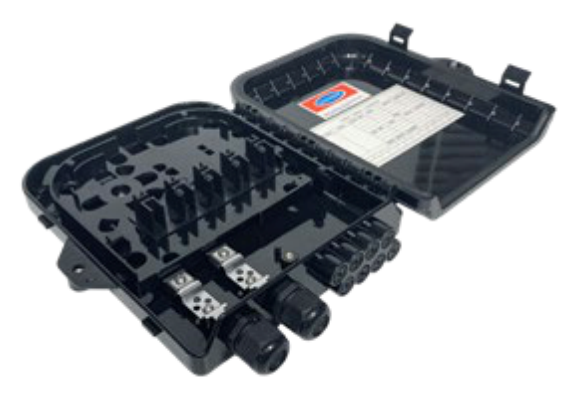

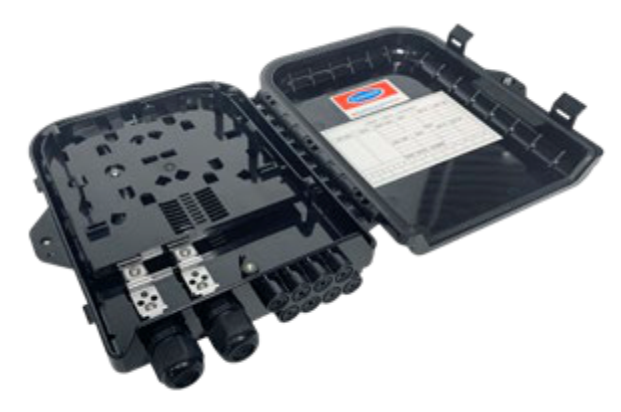

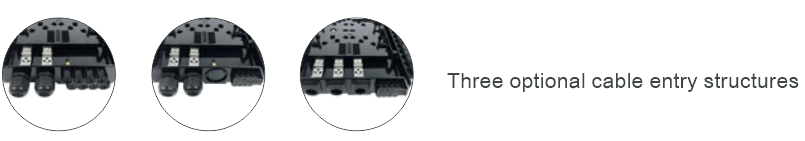

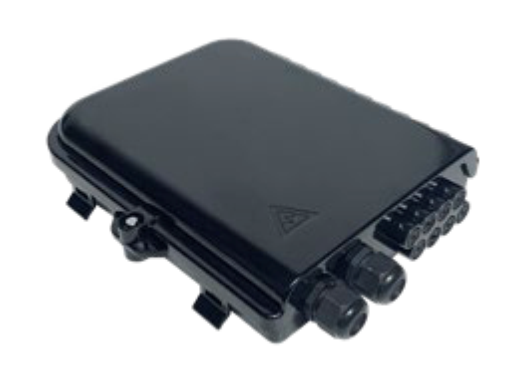

Fiber Termination Box ZCFTB-08HFiber Termination Box ZCFTB-08H 2Fiber Termination Box ZCFTB-08H 3Fiber Termination Box ZCFTB-08H 4

Technical Specifcation

Capacity

8 cores

Accessible Cable Diameter

Φ8-Φ12mm

Material

ABS/PC+ABS

Protection Level

IP55

Dimension, W*H*D(mm)

249*203*53

Input Cable Method

Cutting

Inlets/Outlets

2/8

PLC Splitter

Tube & module type

ZCFTB-12B-1/08B-1

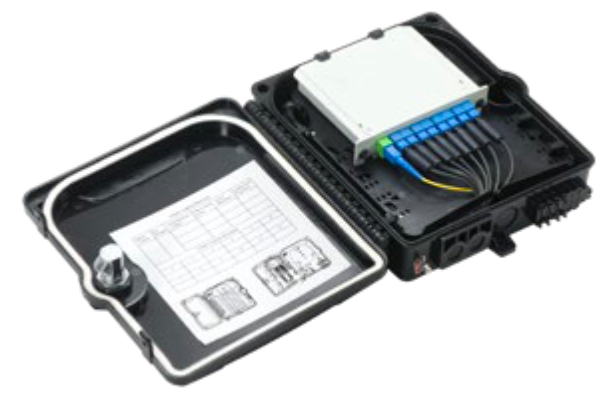

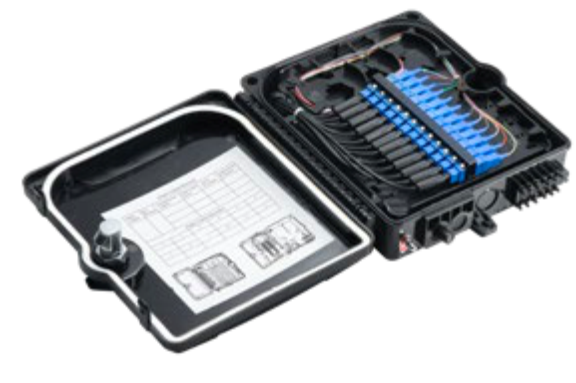

Fiber Termination Box ZCFTB-12BFiber Termination Box ZCFTB-12B 3Fiber Termination Box ZCFTB-12B 2

Technical Specifcation

Capacity

12 cores

Accessible Cable Diameter

Φ7-Φ15mm

Material

ABS/PC+ABS

Protection Level

IP55

Dimension, W*H*D(mm)

230*215*65

Input Cable Method

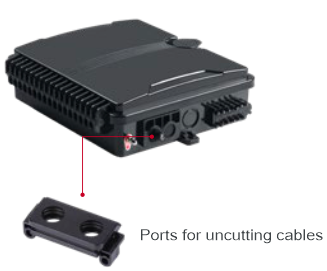

Uncutting

Inlets/Outlets

2/12

PLC Splitter

Tube & module type
