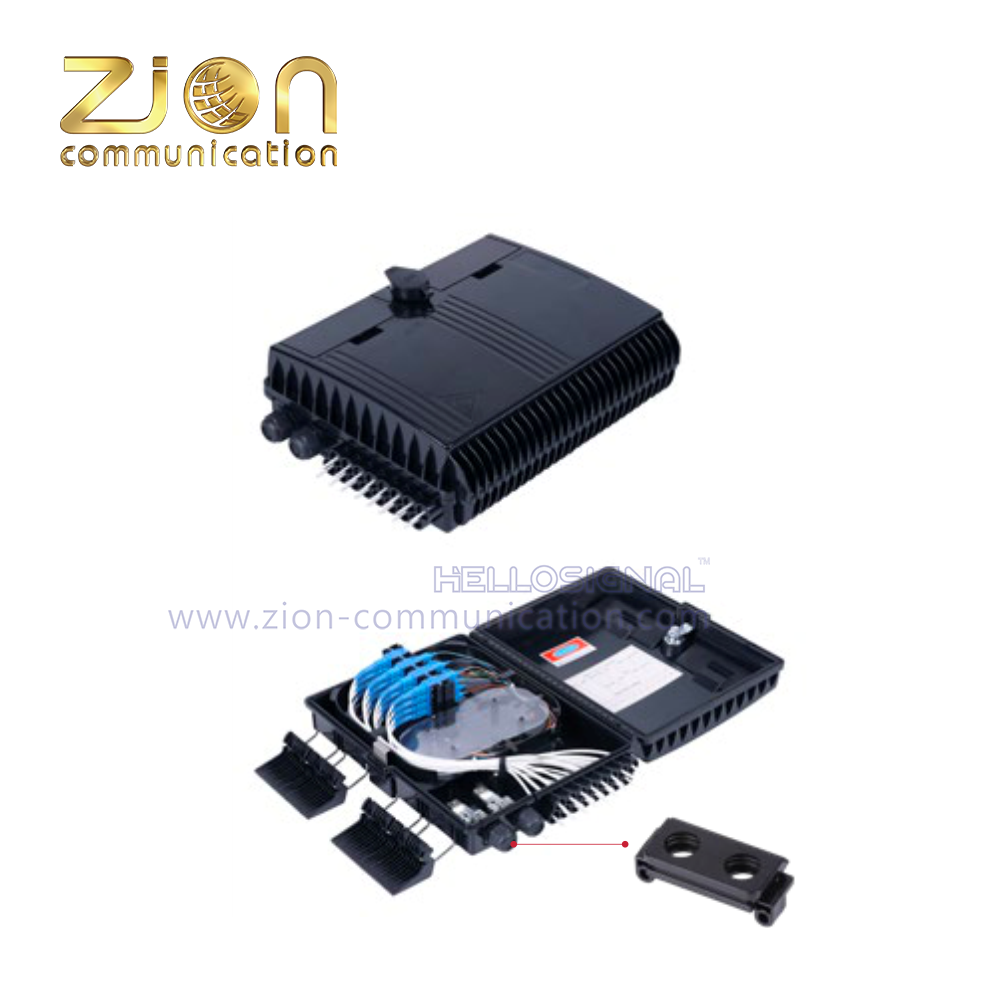

Fiber Terminal Box
HELLOSIGNAL
ZCFTB-16
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Fiber Terminal Box — ZCFTB-16 | ||||||

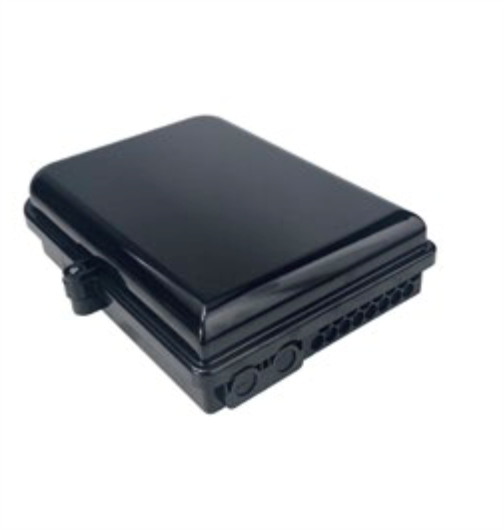

ZCFTB-16I | ||||||
   | ||||||

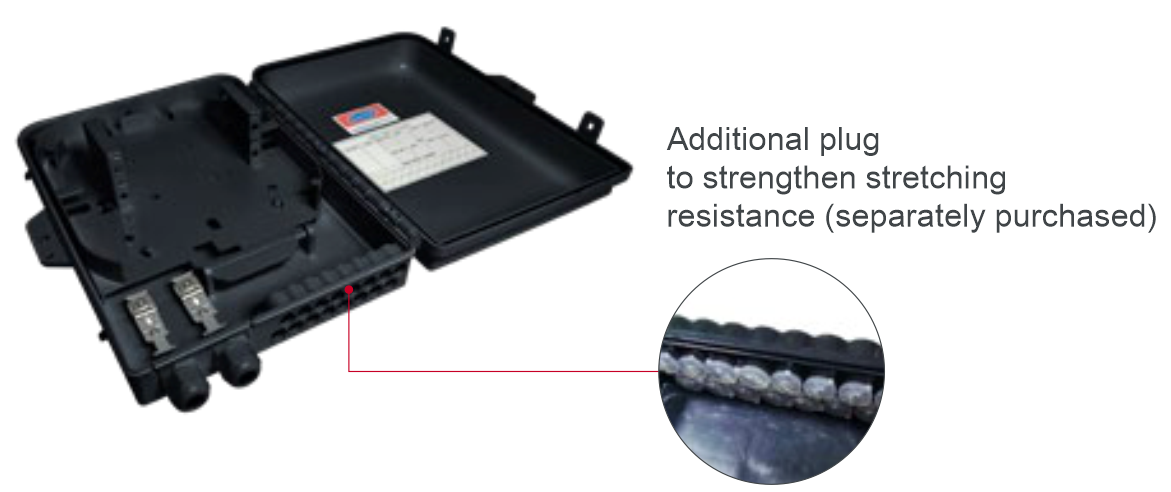

ZCFTB-16I-1 | ZCFTB-16I-2 | |||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ8-Φ18mm | |||
Material | PC+ABS/ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 210*126*50 | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 2/16 | PLC Splitter | Tube & module type | |||

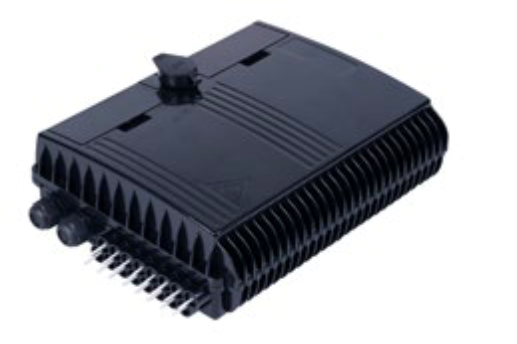

ZCFTB-16B | ||||||
   | ||||||

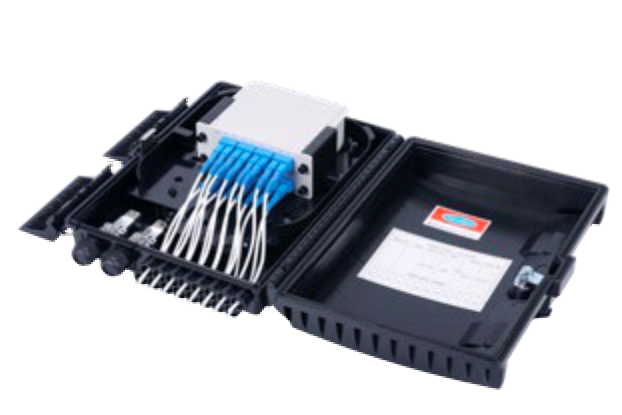

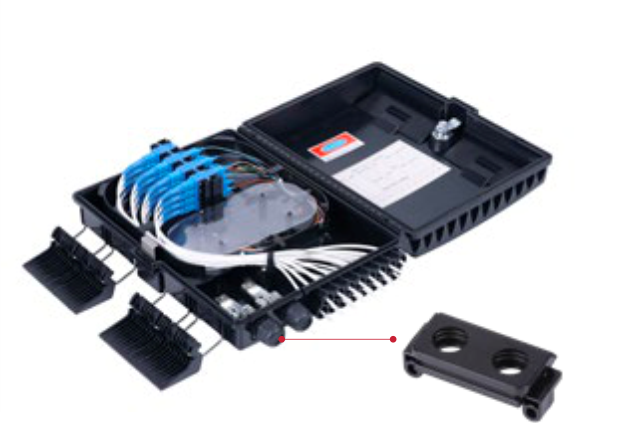

ZCFTB-16B-1 | ZCFTB-16B-2 | |||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ8-Φ12mm | |||
Material | ABS/PC+ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 311*237*104 | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 2/16 | PLC Splitter | Tube & module type | |||

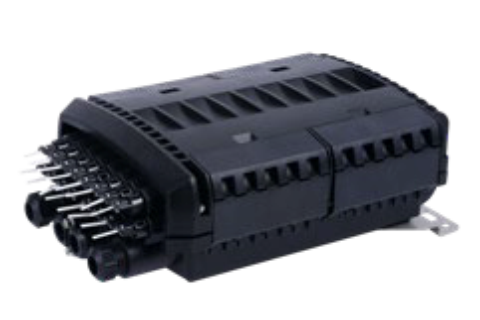

ZCFTB-16C | ||||||
   | ||||||

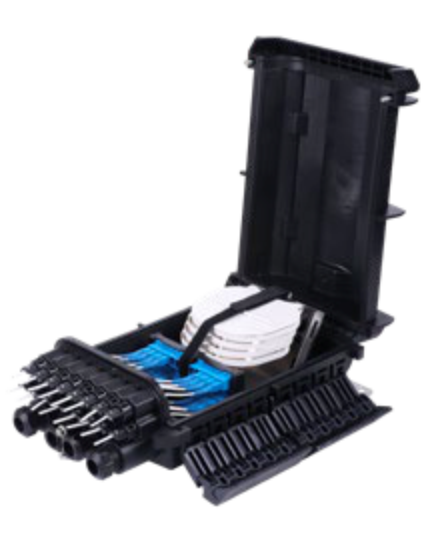

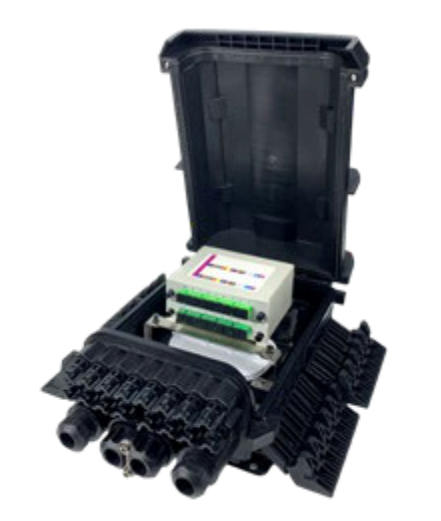

ZCFTB-16C-1 | ZCFTB-16C-4 | |||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ10-Φ18mm | |||
Material | PP+Fiberglass | Protection Level | IP68 | |||
Dimension, W*H*D(mm) | 385*245*155 | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 4/16 | PLC Splitter | Tube & module type | |||

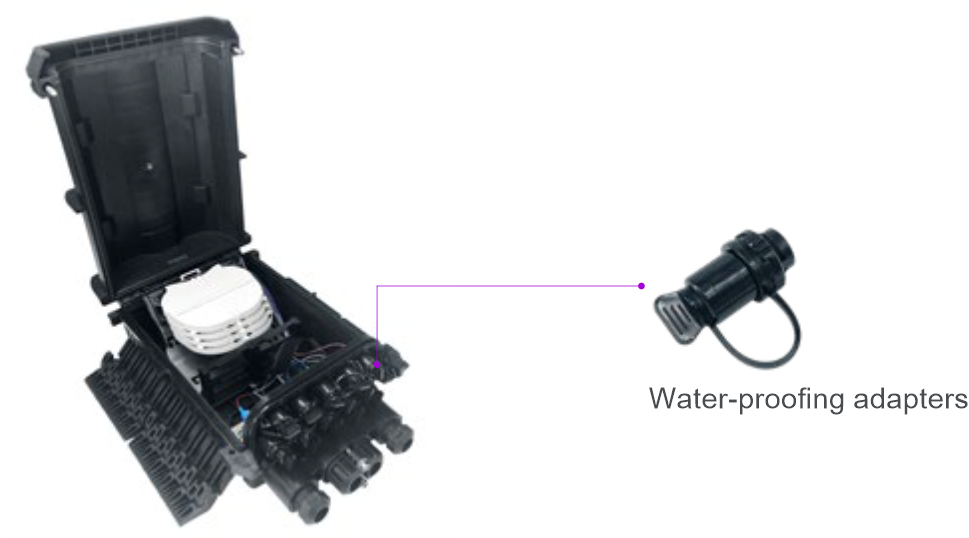

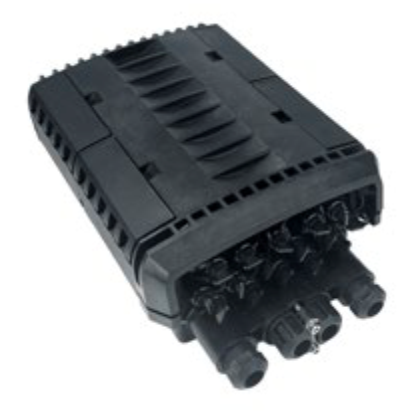

ZCFTB-16C-3 | ||||||
  | ||||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ10-Φ18mm | |||
Material | PP+Fiberglass | Protection Level | IP68 | |||
Dimension, W*H*D(mm) | 385*245*170 | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 4/16 | PLC Splitter | Tube & module type | |||

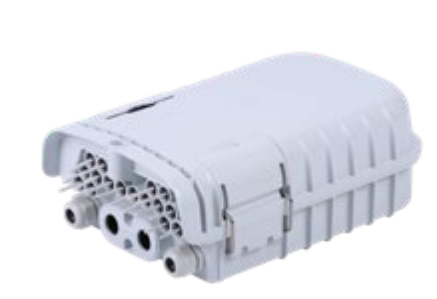

ZCFTB-16D | ||||||
   | ||||||

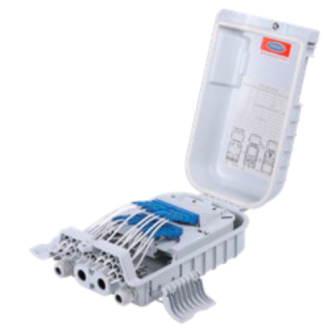

ZCFTB-16D-1 | ZCFTB-16D-2 | |||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ8-Φ12mm | |||
Material | PC+ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 290*180*105 | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 4/16 | PLC Splitter | Tube & module type | |||

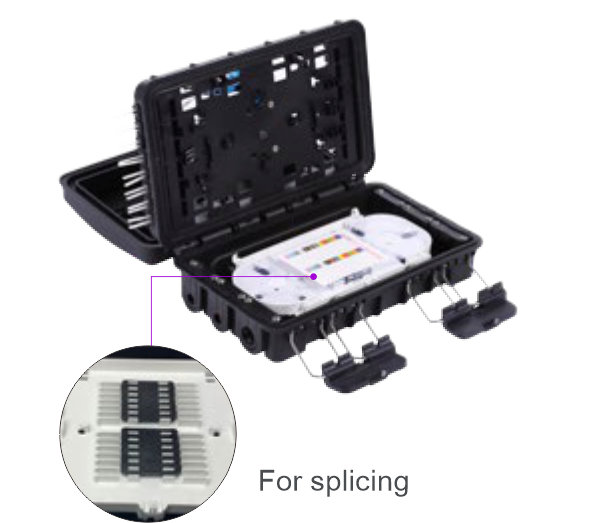

ZCFTB-16N | ||||||
   | ||||||

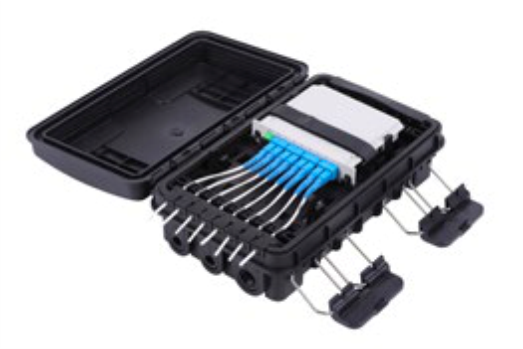

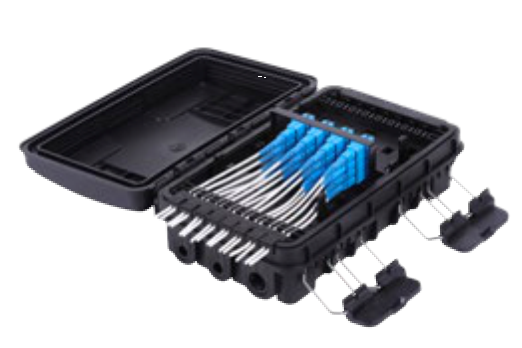

ZCFTB-16N-1 | ZCFTB-16N-2 | |||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ7-Φ13mm | |||
Material | PC+ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 285*180*110mm & | Input Cable Method | Cutting | |||
Inlets/Outlets | 3/3/16 | PLC Splitter | Tube & module type | |||

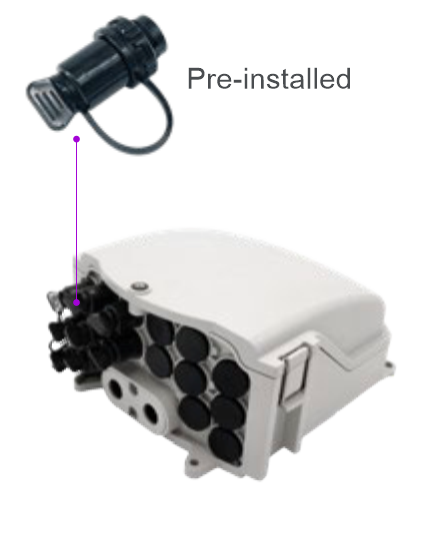

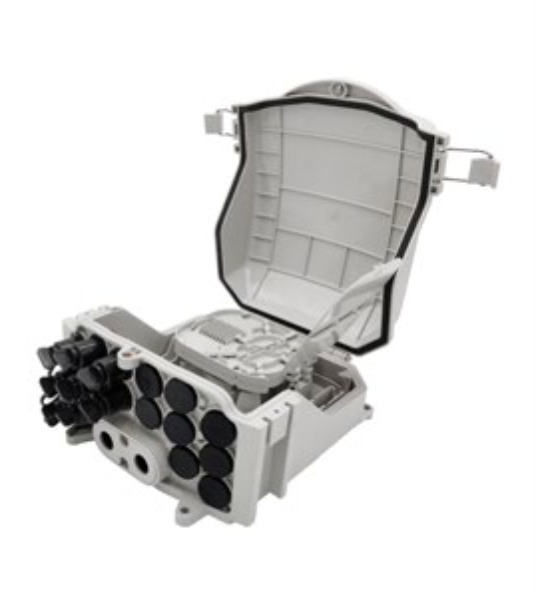

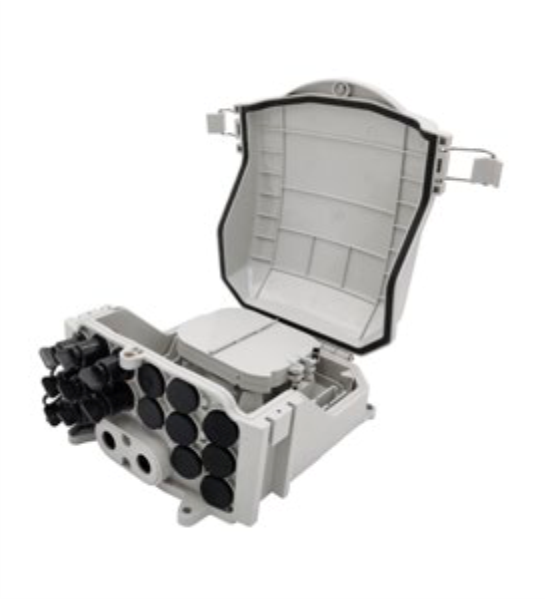

ZCFTB-16M-1 | ||||||
   | ||||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ7-Φ14mm | |||
Material | PC+ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 240*208*115 | Input Cable Method | Uncuting | |||
Inlets/Outlets | 2/16 | PLC Splitter | Tube type | |||

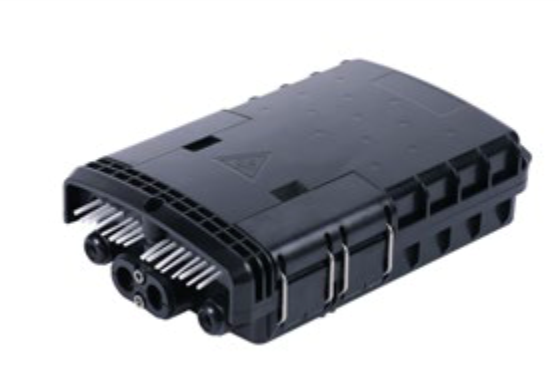

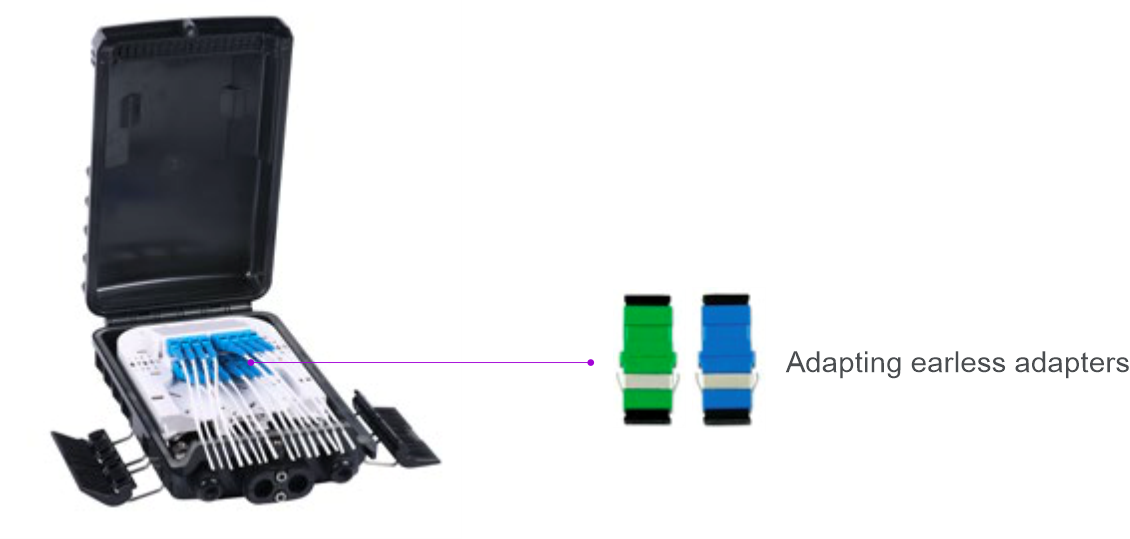

ZCFTB-16W-1 | ||||||
  | ||||||
Technical Specifcation | ||||||
Capacity | 16 cores | Accessible Cable Diameter | Φ8-Φ12&Φ7-Φ14mm | |||
Material | PC+ABS | Protection Level | IP55 | |||
Dimension, W*H*D(mm) | 298*180*83mm | Input Cable Method | Cutting/Uncuting | |||
Inlets/Outlets | 4/16 | PLC Splitter | Tube type | |||
