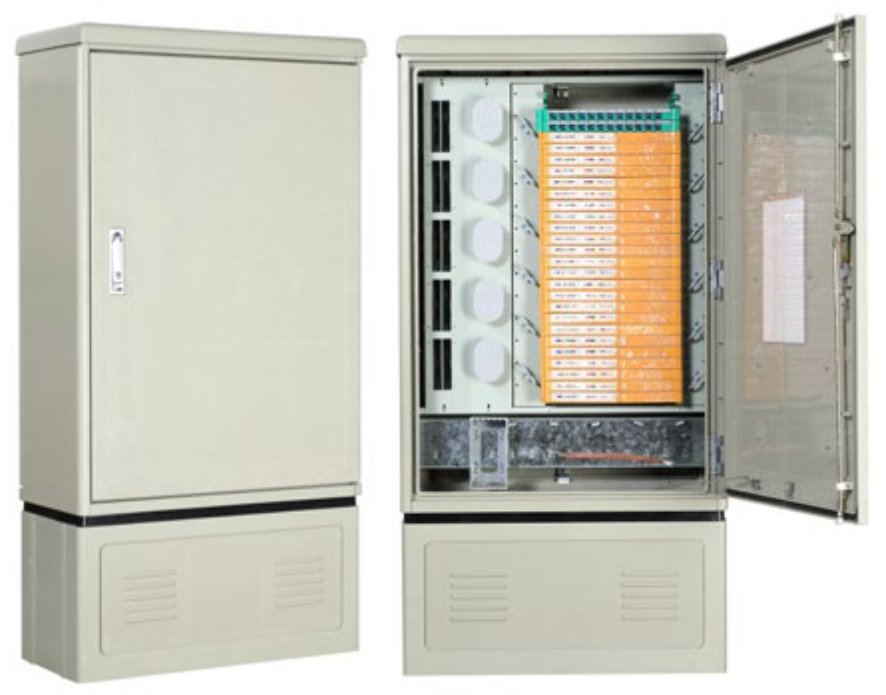

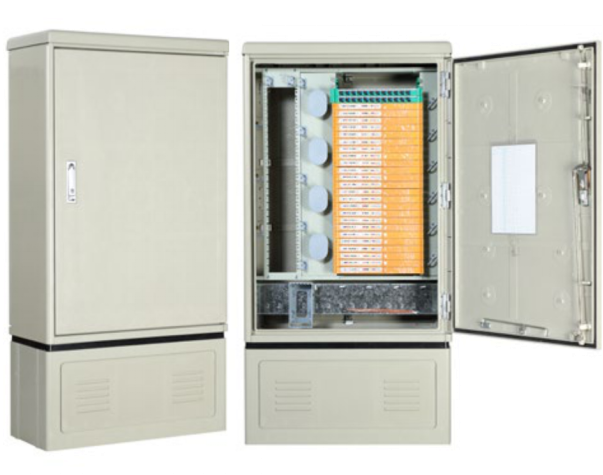

ZCOCC-F288-1/2/3F Fiber Optic Cross Connect Cabinet

 Technical Data

Connector Type:

SC FC

Insulated resistance:

 ≥2*10⁴MΩ/500V(DC)

Atmospheric pressure:

70kpa-106kpa

Mechanical Durability Test:

≥1000 times

Relative humidity:

≤95%(40°C)

Color:

Gray

Operating Temperature:

-40°C~+60°C

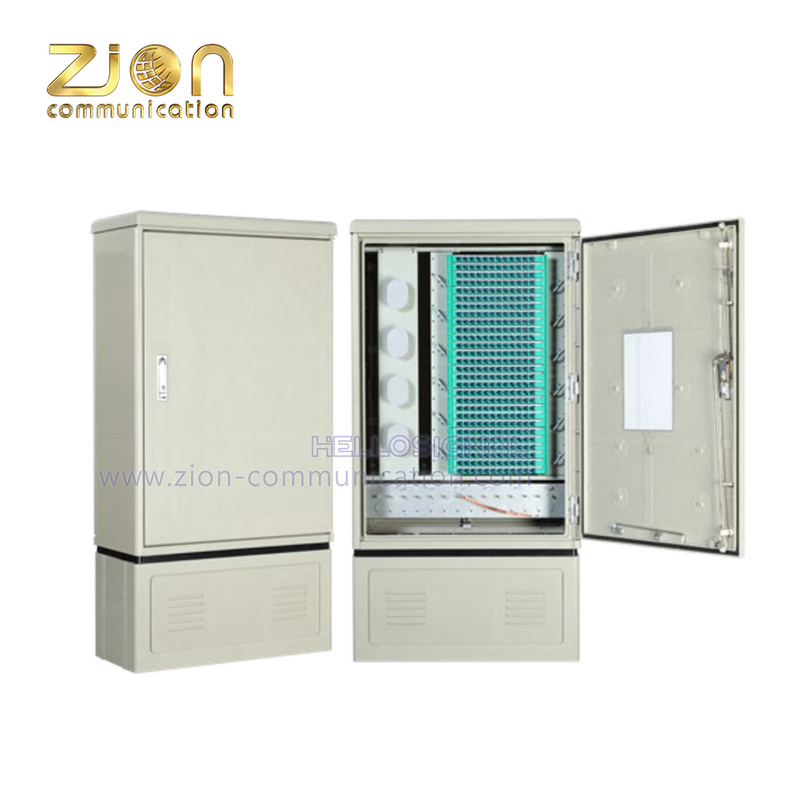

ZCOCC-F288-1F

Detail Information

Material:

SMC

Fiber Optical Splitter：

N/A

Dimension,
W*H*D(mm)：

1450*755*350

Number of Trunk
Distribution Modules：

2

Capacity：

288F

Number of Branch
Distribution Modules：

24

Door Type：

Single-Sided front door

Installation：

Floor standing

Material:

SMC

Fiber Optical Splitter：

26*1:8 module PLC splitter

Dimension,
W*H*D(mm)：

1450*755*350

Number of Trunk
Distribution Modules：

2

Capacity：

288F

Number of Branch
Distribution Modules：

24

Door Type：

Single-Sided front door

Installation：

Floor standing

Material:

SMC

Fiber Optical Splitter：

26*1:8 cassette PLC splitter

Dimension,
W*H*D(mm)：

1450*755*350

Number of Trunk
Distribution Modules：

2

Capacity：

288F

Number of Branch
Distribution Modules：

24

Door Type：

Single-Sided front door

Installation：

Floor standing
