Fiber Optic Enclosure
HELLOSIGNAL
ZCSC-D144/240/360/480
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
OPTIC SPLICE CLOSURE — ZCSC-D144/240/480 | ||||||||||||

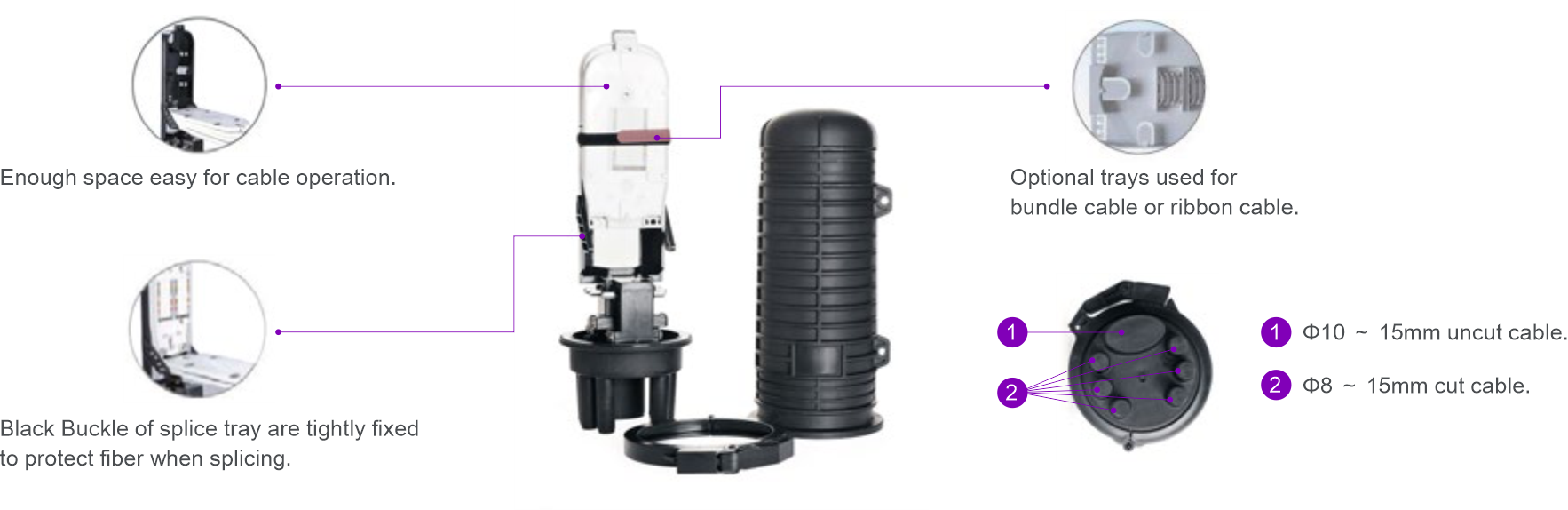

ZCSC-D144-03 | ||||||||||||
| ||||||||||||
Technical Specifcation | ||||||||||||
Model No | ZCSC-D144-03 | Dimension (mm) | 525*Φ225 | Inlets/Outlets | ||||||||
Max Capacity | Bundle cable:144F | Max Splice Trays | 4*36F | 1/6 | ||||||||
Ribbon cable:432F | 6*72F | Protection Rate | ||||||||||
Meterial | PP | Cable Port Sealing | Heat Shrinkable | IP68 | ||||||||
ZCSC-S240-01 | ||||||||||||
| ||||||||||||
Technical Specifcation | ||||||||||||
Model No | ZCSC-D240-01 | Dimension (mm) | 480*Φ260 | Inlets/Outlets | ||||||||
Max Capacity | Bundle cable:240F | Max Splice Trays | 10*24F | 1/6 | ||||||||
Ribbon cable:720F | 10*72F | Protection Rate | ||||||||||
Meterial | PP | Cable Port Sealing | Heat Shrinkable | IP68 | ||||||||

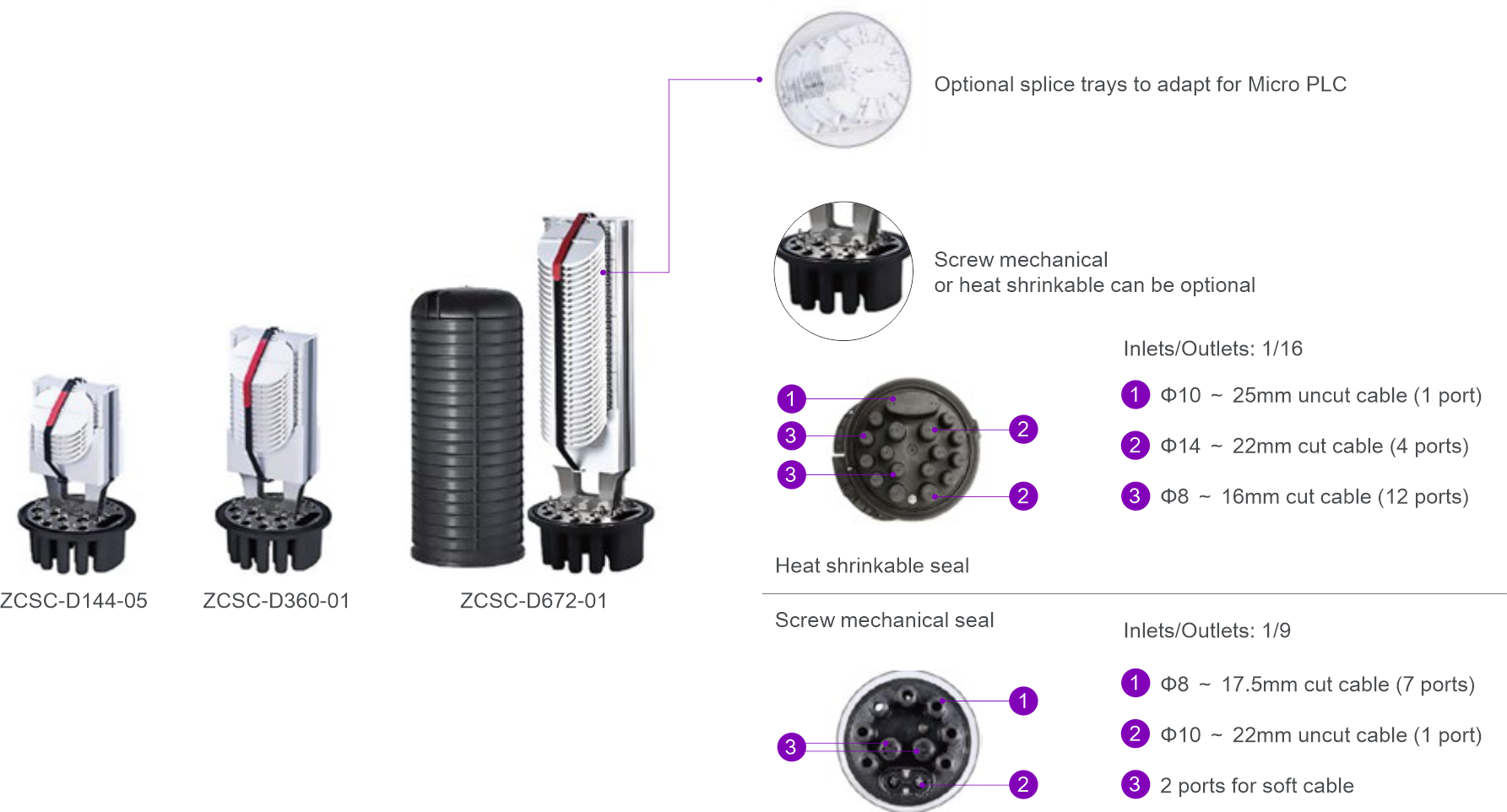

ZCSC-D360-01 | ||||||||||||
| ||||||||||||
Technical Specifcation | ||||||||||||
Model No | Max capacity | Max splice trays | Material | Dimension | Protection | Type of PLC | ||||||
ZCSC-D144-05 | 144F | 12*12F/24*6F | PP | 400*Φ270 | IP68 | 2*1:4/1*1:8 | ||||||
ZCSC-D360-01 | 360F | 30*12F/60*6F | 500*Φ270 | |||||||||
ZCSC-D672-01 | 672F | 56*12F | 625*Φ270 | |||||||||

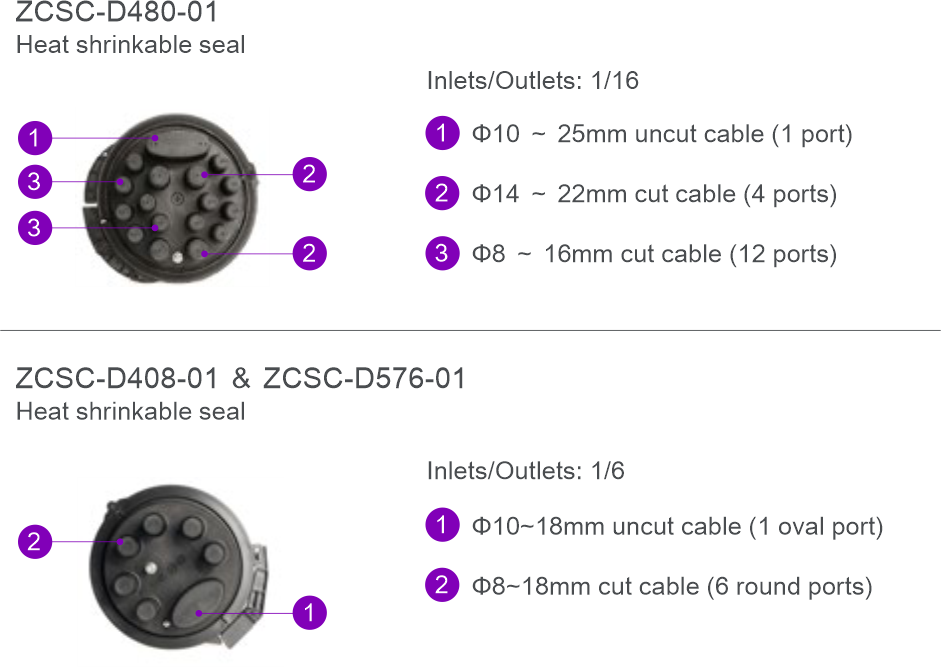

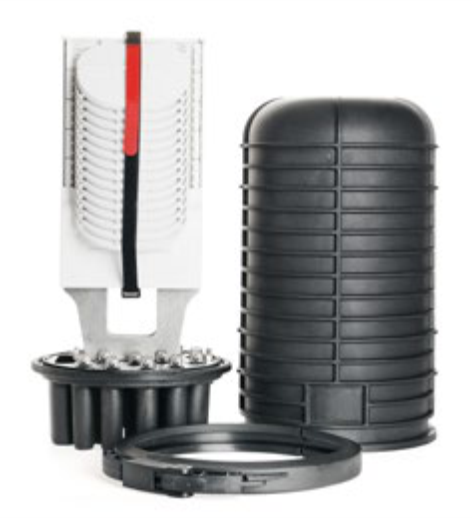

ZCSC-S480-01 | ||||||||||||
  | ||||||||||||
Technical Specifcation | ||||||||||||
Model No | Max capacity | Max splice trays | Material | Dimension | Protection Level | |||||||
ZCSC-D408-01 | 408F | 34*12F | PP | 480*Φ270 | IP68 | |||||||
ZCSC-D480-01 | 480F | 40*12F | 500*Φ270 | |||||||||
ZCSC-D576-01 | 576F | 48*12F | 600*Φ270 | |||||||||
