Fiber Optic Enclosure
HELLOSIGNAL
ZCSC-S048/96/120
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
OPTIC SPLICE CLOSURE — ZCSC-S048/096/120 | |||

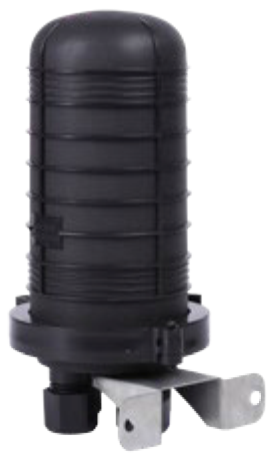

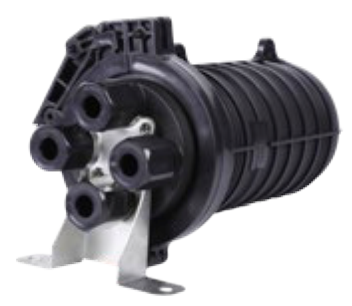

ZCSC-S048-1
| |||
| |||
Technical Specifcation | |||
Max Capacity | 48F | Inlets/Outlets | 2/2 |
Material | PP/PC | Accessible Cable Diameter | Round:Φ16mm |
Max Splice Trays | 4*12F | Protection Rate | IP68 |
Dimension (mm) | 300*Φ118 | Cable Port Sealing | Screw Mechanical |

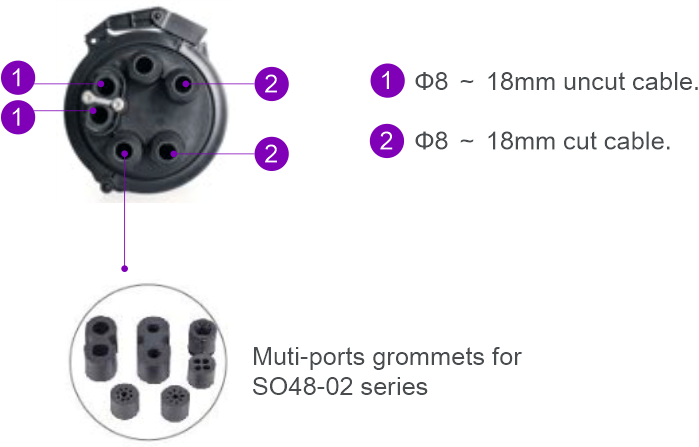

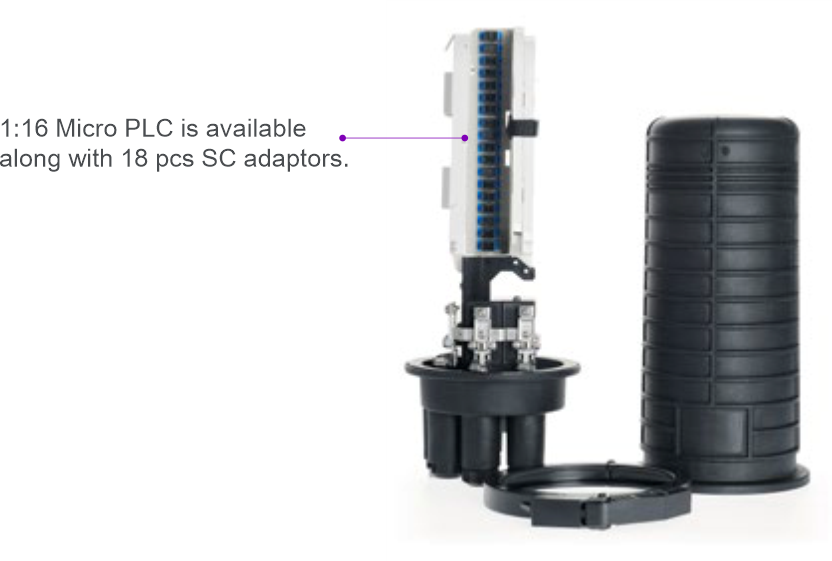

ZCSC-S048-2 | |||
  | |||
Technical Specifcation | |||
Max Capacity | 48F | Inlets/Outlets | 2/4 |
Material | PP | Type of PLC | 1:16 Micro PLC |
Max Splice Trays | 4*12F | Protection Rate | IP68 |
Dimension (mm) | 400*Φ260 | Cable Port Sealing | Screw Mechanical/Heat Shrinkable |

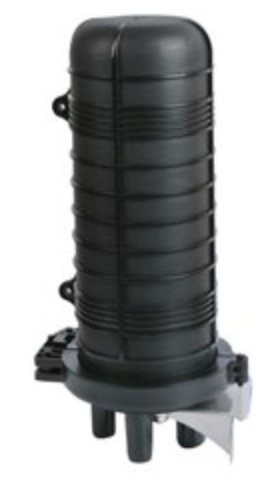

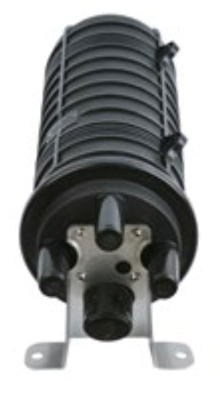

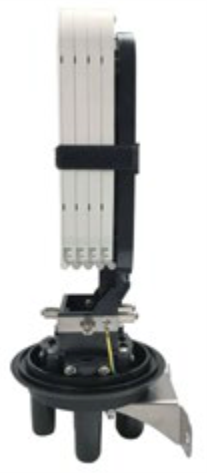

ZCSC-S096-01 | |||
| |||
Technical Specifcation | |||
Max Capacity | 96F | Inlets/Outlets | 1/3 |
Material | PP/PC | Accessible Cable Diameter | Oval:Φ26mm;Round:Φ21mm |
Max Splice Trays | 4*24F | Protection Rate | IP68 |
Dimension (mm) | 410*Φ135 | Cable Port Sealing | Heat Shrinkable |

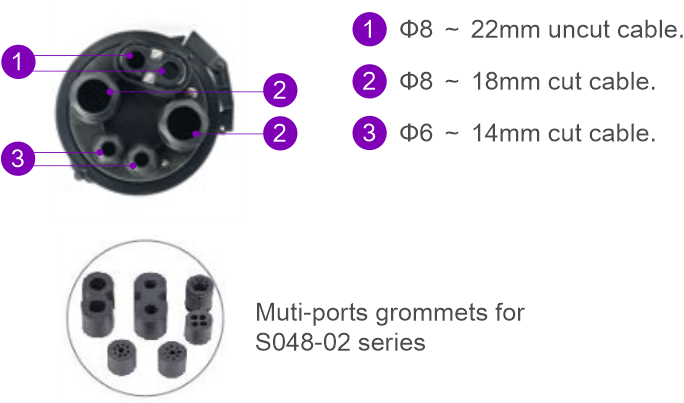

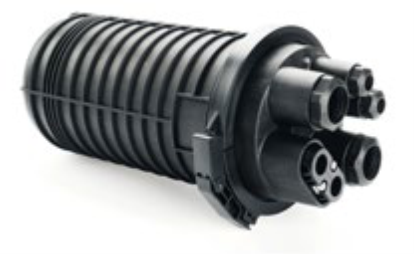

ZCSC-S120-01 | |||
  | |||
Technical Specifcation | |||
Max Capacity | 120F | Inlets/Outlets | 1/4 |
Material | PP | Type of PLC | 1*1:32/2*1:16 Micro PLC |
Max Splice Trays | 5*24F | Protection Rate | IP68 |
Dimension (mm) | 480*Φ260 | Cable Port Sealing | Screw Mechanical/Heat Shrinkable |
