0.35mm Copper Clad Aluminum Wire
HELLOSIGNALTM OR OEM
7000014
CE/ROHS/ISO9001/SGS
0.35mm
wooden tray, plastic reel, or according to the clients' request
500kgs
Normally 25 days after received the deposit.
NINGBO OR SHANGHAI
T/T,L/C
0.35mm Copper Clad Aluminum Wire
Nomial diameter Φ /mm: 0.35mm
Diameter difference ±mm: ±0.004mm
Copper content %: 27 %
Density (20 ℃) g／cm3: 3.3 g／cm3
Intensity test of the soft state ≥N: ≥11 N
Tensile strength of soft-state≥N／mm2: ≥120 N／mm2
Hard measured intensity ≥N: ≥25 N
Tensile strength of hard-state≥N／mm2: ≥270 N／mm2
Resistivity (20℃) ≤Ω.km／mm2: ≤27.5 Ω.km／mm2
Measured resistance (20 ℃) ≤Ω／km: ≤285Ω／km
Conductivity (20 ℃) ≥% : ≥63 %
Soft-state elongstion≥%: ≥12 %
Hard elongation≥%: ≥15 %
Technical Parameters: Based on customer’s requirements
Package: Please advise spool size or special requirements
Delivery Time: Normally 20-25 days after receiving the deposit
Application: Used for braid shielding & cable conductor (single or stranded) in coaxial cables, power cables, signal cables, network cables, data cables, enameled wires, etc.
More Information: Please contact us
Skype: stephen689205
QQ: 2488273792
WhatsApp: +86 15868821925
| 0.35mm Copper Clad Aluminum Wire | ||
| Construction Parameters: | ||
| Nomial diameter Φ /mm | 0.35mm | |
| Diameter difference ±mm | ±0.004mm | |
| Copper content % | 27 % | |
| Density (20 ℃) g／cm3 | 3.3 g／cm3 | |
| Intensity test of the soft state ≥N | ≥11 N | |
| Tensile strength of soft-state≥N／mm2 | ≥120 N／mm2 | |
| Hard measured intensity ≥N | ≥25 N | |
| Tensile strength of hard-state≥N／mm2 | ≥270 N／mm2 | |
| Electrical Characteristics: | ||
| Resistivity (20℃) ≤Ω.km／mm2 | ≤27.5 Ω.km／mm2 | |
| Measured resistance (20 ℃) ≤Ω／km | ≤285Ω／km | |
| Conductivity (20 ℃) ≥% | ≥63 % | |
| Soft-state elongstion≥% | ≥12 % | |
| Hard elongation≥% | ≥15 % | |

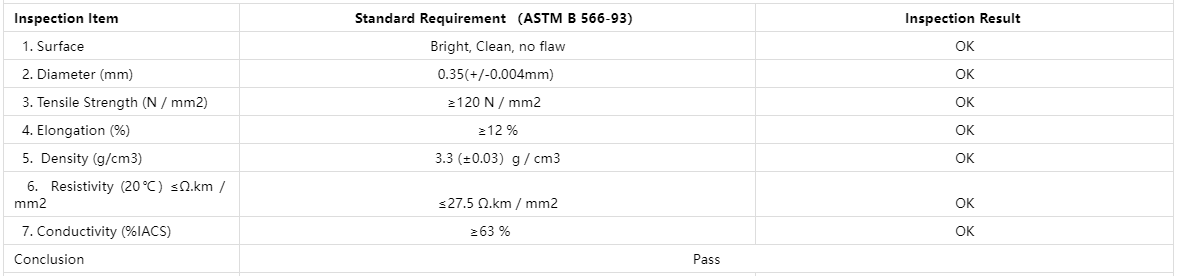

| Product Inspection: | ||
| Inspection Item | Standard Requirement （ASTM B 566-93） | Inspection Result |
| 1. Surface | Bright, Clean, no flaw | OK |
| 2. Diameter (mm) | 0.35(+/-0.004mm) | OK |
| 3. Tensile Strength (N／mm2) | ≥120 N／mm2 | OK |
| 4. Elongation (%) | ≥12 % | OK |
| 5. Density (g/cm3) | 3.3 (±0.03）g／cm3 | OK |
| 6. Resistivity (20℃) ≤Ω.km／mm2 | ≤27.5 Ω.km／mm2 | OK |
| 7. Conductivity (%IACS) | ≥63 % | OK |
| Conclusion | Pass | |
| Order Informations: | ||
| Technical Parameter | based on customer’s requirements | |
| Package | Please advise the spool size or your special requirements | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| Application | braid shielding & cable conductor (single or stranded) for coaxial cable, power cable, signal cable, network cable, data cable, enameled wire etc | |
| More informations | please contact with us. | |
| Online Service: | ||
| Skype | stephen689205 | |
| 2488273792 | ||
| 86 15868821925 | ||
| http://www.zion-cca.com | ||
| https://zioncommunication.en.alibaba.com/ | ||
