0.81mm Copper Clad Aluminum Wire

The CCA wire is made up by using pure aluminum wire as core. It adopts the advanced coating and welding technology in the world. Plating copper concentrically on the concentric line of aluminum, realizes metallurgy combination between copper coating and aluminum. Threr will be no falking off during the heat treatment or mechanical workout. the CCA is a best new bimetal wire instead of pure copper wire. Producible scope:t the diameter is from Φ01.0mm to Φ3.00mm. Product Fearures: shiny & uniformity unlform copper layer, excellent electrical conductivity, bear bending, good tensile strength, excellent welding and corrosion, with the great light specific gravity, and savings resources of copper. Main Application: flexible coaxial cable, a variety of audio and video cable,vehicle single cable, network cable,data transmission cables and so on. Can be used in the above cables: cable conductor, braiding and shielding, the single wire conductor and other conductors.

  • 0.81mm Copper Clad Aluminum Wire

  • HELLOSIGNALTM OR OEM

  • 7000020

  • CE/ROHS/ISO9001/SGS

  • 0.81mm

  • wooden tray, plastic reel, or according to the clients' request

  • 500kgs

  • Normally 25 days after received the deposit.

  • NINGBO OR SHANGHAI

  • T/T,L/C

Availability:
Inquire

0.81mm Copper Clad Aluminum Wire


■ Construction Parameters:

Nominal Diameter: 0.81 mm

Diameter Difference: ±0.008 mm

Copper Content: 27%

Density (20℃): 3.3 g/cm³

Soft-State Intensity Test (Min): ≥61 N

Soft-State Tensile Strength (Min): ≥120 N/mm²

Hard Measured Intensity (Min): ≥139 N

Hard-State Tensile Strength (Min): ≥270 N/mm²



■ Electrical Characteristics:

Resistivity (20℃) (Max): ≤27.5 Ω·km/mm²

Measured Resistance (20℃) (Max): ≤53.3 Ω/km

Conductivity (20℃) (Min): ≥63%

Soft-State Elongation (Min): ≥12%

Hard-State Elongation (Min): ≥15%

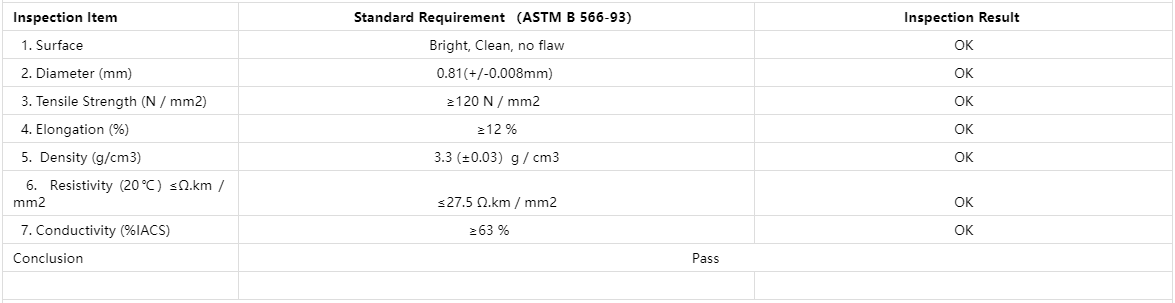

■ Product Inspection:

0.81mm Copper Clad Aluminum Wire



■ Order Information:

Technical Parameters: Based on customer’s requirements

Package: Please advise spool size or special requirements

Delivery Time: Normally 20-25 days after receiving the deposit

Application: Used for braid shielding & cable conductor (single or stranded) in coaxial cables, power cables, signal cables, network cables, data cables, enameled wires, etc.

More Information: Please contact us
