0.4mm Copper Clad Aluminum Wire

The CCA wire is made up by using pure aluminum wire as core. It adopts the advanced coating and welding technology in the world. Plating copper concentrically on the concentric line of aluminum, realizes metallurgy combination between copper coating and aluminum. Threr will be no falking off during the heat treatment or mechanical workout. the CCA is a best new bimetal wire instead of pure copper wire. Producible scope:t the diameter is from Φ01.0mm to Φ3.00mm.

Product Fearures: shiny & uniformity unlform copper layer, excellent electrical conductivity, bear bending, good tensile strength, excellent welding and corrosion, with the great light specific gravity, and savings resources of copper.
Main Application: flexible coaxial cable, a variety of audio and video cable,vehicle single cable, network cable,data transmission cables and so on. Can be used in the above cables: cable conductor, braiding and shielding, the single wire conductor and other conductors.

  • 0.4mm Copper Clad Aluminum Wire
  • HELLOSIGNALTM OR OEM
  • 7000015
  • CE/ROHS/ISO9001/SGS
  • 0.4mm
  • wooden tray, plastic reel, or according to the clients' request
  • 500kgs
  • Normally 25 days after received the deposit.
  • NINGBO OR SHANGHAI
  • T/T,L/C

Product Description

0.4mm Copper Clad Aluminum Wire




Construction Parameters:
 Nomial diameter Φ /mm0.4mm
 Diameter difference ±mm±0.005mm
 Copper content %27 %
 Density (20 ) gcm33.3 gcm3
 Intensity test of the soft state N15 N
 Tensile strength of soft-stateNmm2120 Nmm2
 Hard measured intensity N33 N
 Tensile strength of hard-stateNmm2270 Nmm2






Electrical Characteristics:
  Resistivity (20Ω.kmmm227.5 Ω.kmmm2
  Measured resistance (20 Ωkm218Ωkm
  Conductivity (20 %  63 %
  Soft-state elongstion%12 %
  Hard elongation%15 %

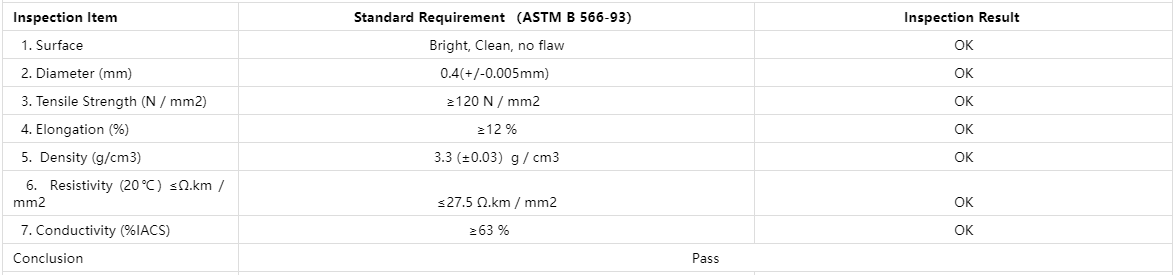

Product Inspection:
Inspection Item Standard Requirement ASTM B 566-93Inspection Result
  1. Surface Bright, Clean, no flawOK
  2. Diameter (mm)0.4(+/-0.005mm) OK
  3. Tensile Strength (Nmm2) 120 Nmm2  OK
  4. Elongation (%)12 %OK
  5.  Density (g/cm3)3.3 (±0.03gcm3OK
  6.  Resistivity (20Ω.kmmm227.5 Ω.kmmm2OK
  7. Conductivity (%IACS)63 %    OK
ConclusionPass



Order Informations:
  Technical Parameterbased on customer’s requirements
  PackagePlease advise the spool size or your special requirements
  Delivery timeNormally 20-25 days after received the deposit.
  Applicationbraid shielding & cable conductor (single or stranded) for coaxial cable, power cable, signal cable, network cable, data cable, enameled wire etc
  More informations please contact with us.
