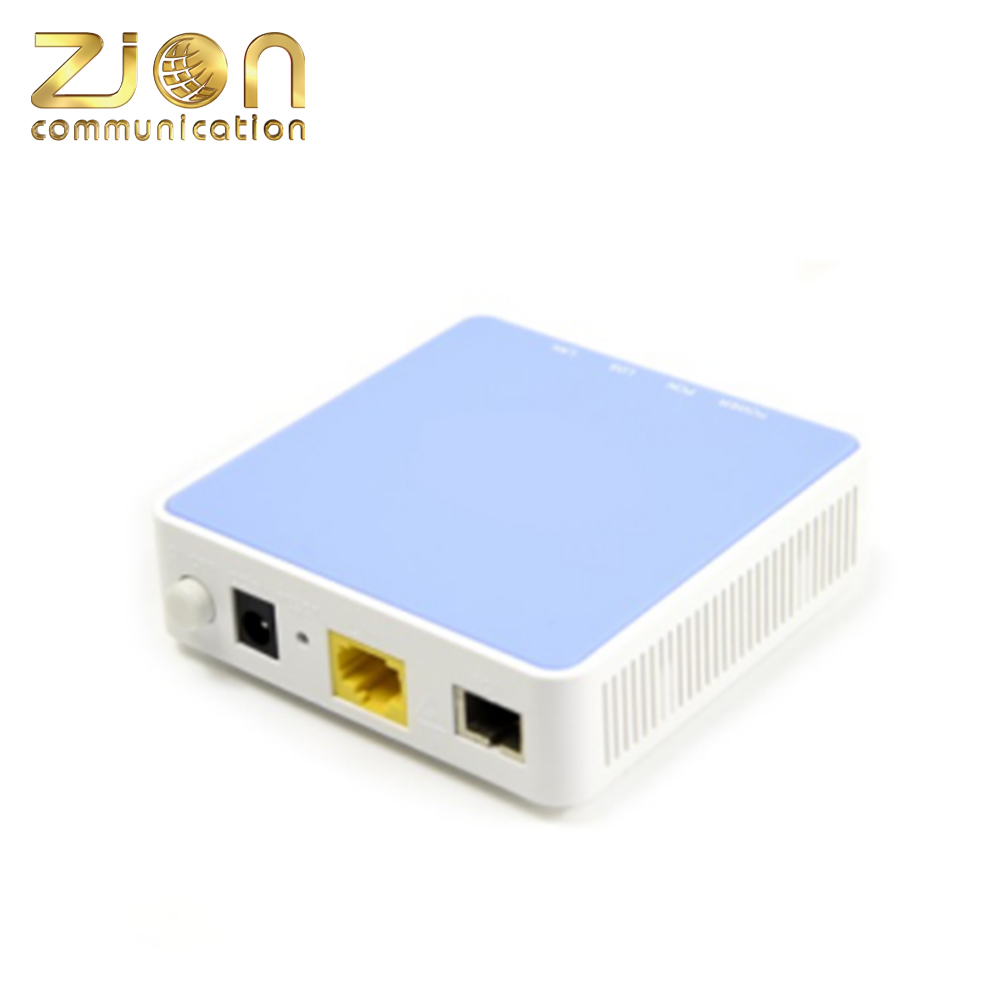

511XZ ONU FTTH GPON optical network unit

Product introduction

PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

511XZ model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function . It is compact and compact, and is an FTTH optical network unit with high performance and low power consumption. 511X ONU can automatically switch EPON/GPON working mode and can be used in EPON/GPON network, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Product features :

● GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x standard

● GPON:8 T-CONTs,32 GEM Ports

● EPON working mode compliant with IEEE 802.3ah specification and OAM protocol

● Supports the WEB configuration function

● Support SFU and HGU types, can switch to use each other

● Chipset: ZTE Chipset

● HGU type,Support PPPoE/ Static IP/ DHCP

● Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc

● Layer 3 Home Gateway/CPE features with Hardware NAT, supports  Route mode, etc

● Supports the configuration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control

● Provides performance statistics on all Ethernet lines

● Support multicast IGMP snooping

● Supports the L2 wire speed forwarding

● Supports the AES-128 algorithm for data encryption of downlink data

Product Specification :

Hardware Specifications

Size（L*W*H）

90mm (L) ×90mm (W) ×24mm (H)

Optical signal access

EPON/GPON

User interface

1GE

Indicator light

POWER/PON/LOS/LAN

Button

Power switch Button, Reset Button

Weight

95g

Power adapter input

100V～240V AC，50Hz～60Hz

PowerSupply requirement

12V DC，0.5A

Power consumption

<6w

Working temperature

-10°C ~ +45°C

Environment humidity

5% ~ 95% (Non-condensing)

PON Interface

Module type

SC/UPC

Working wavelength

up 1310nm，down 1490nm

TX Optical power value

0.5～4dbm

RX Optical power sensitivity

 -27dBm

Transmission distance

0～20km

Transmission rate

GPON:Uplink 1.244Gbps；downlink 2.488Gbps

EPON:Uplink 1.244Gbps；downlink 1.244Gbps

Ethernet interface

Interface type

 RJ45

Interface parameters

 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces

Order Informations：

Marking

Per customer's request

Package

Per customer's request

Delivery time

Normally 25 days after received the deposit.

Brand

OEM
