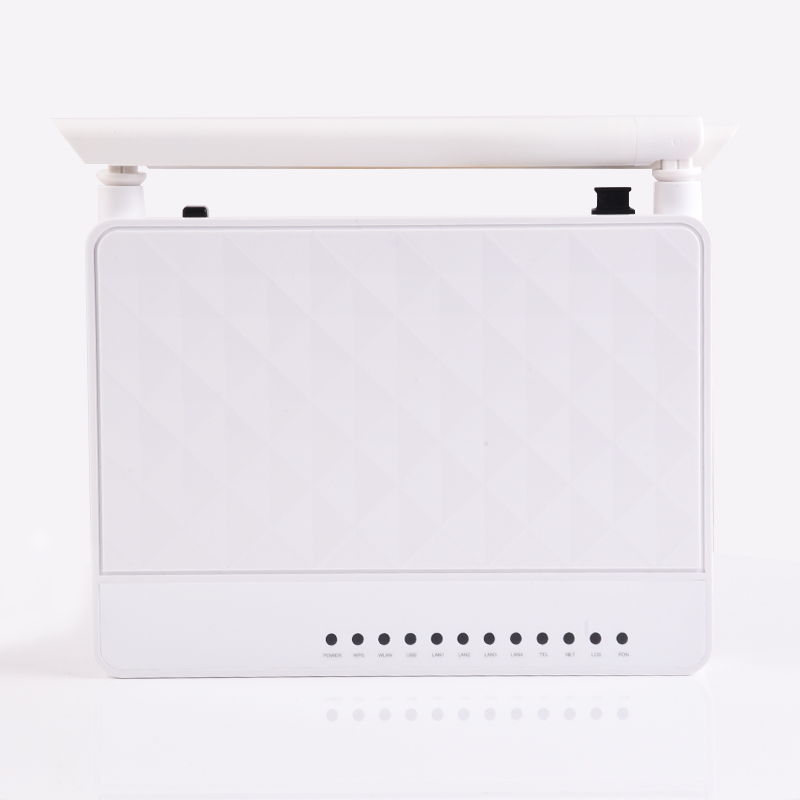

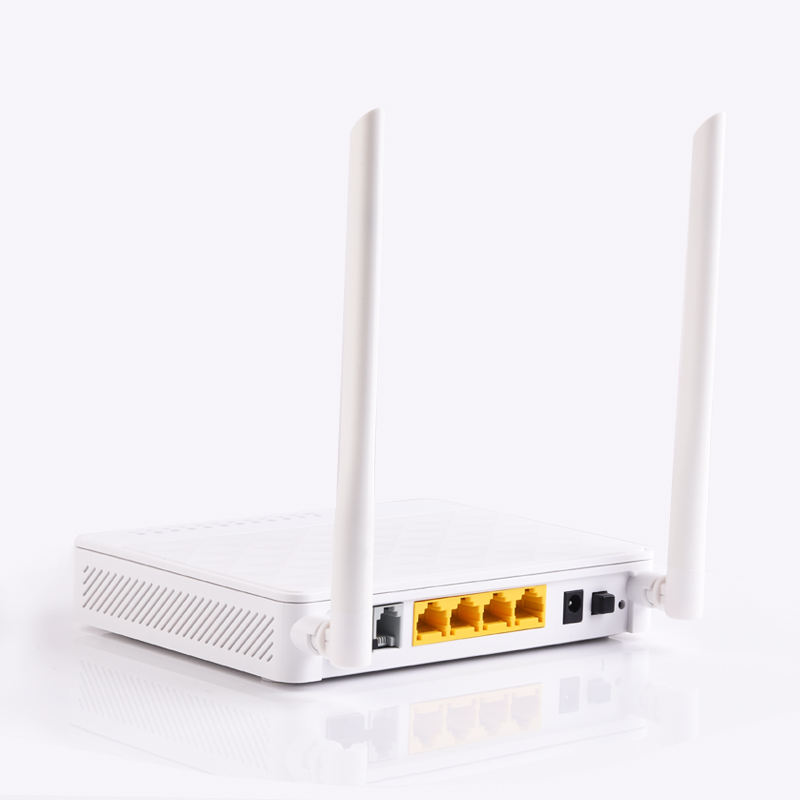

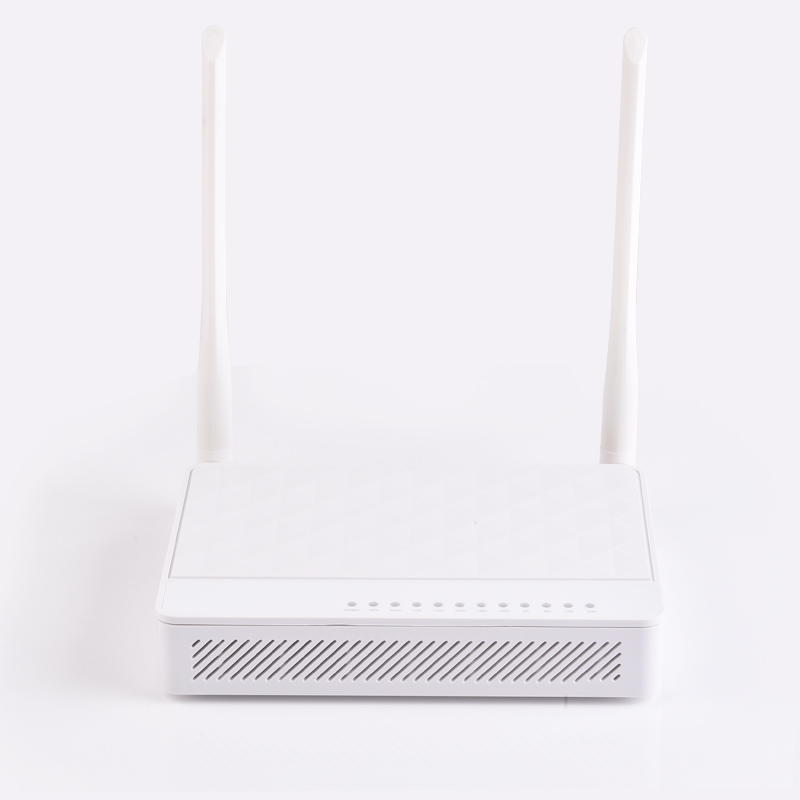

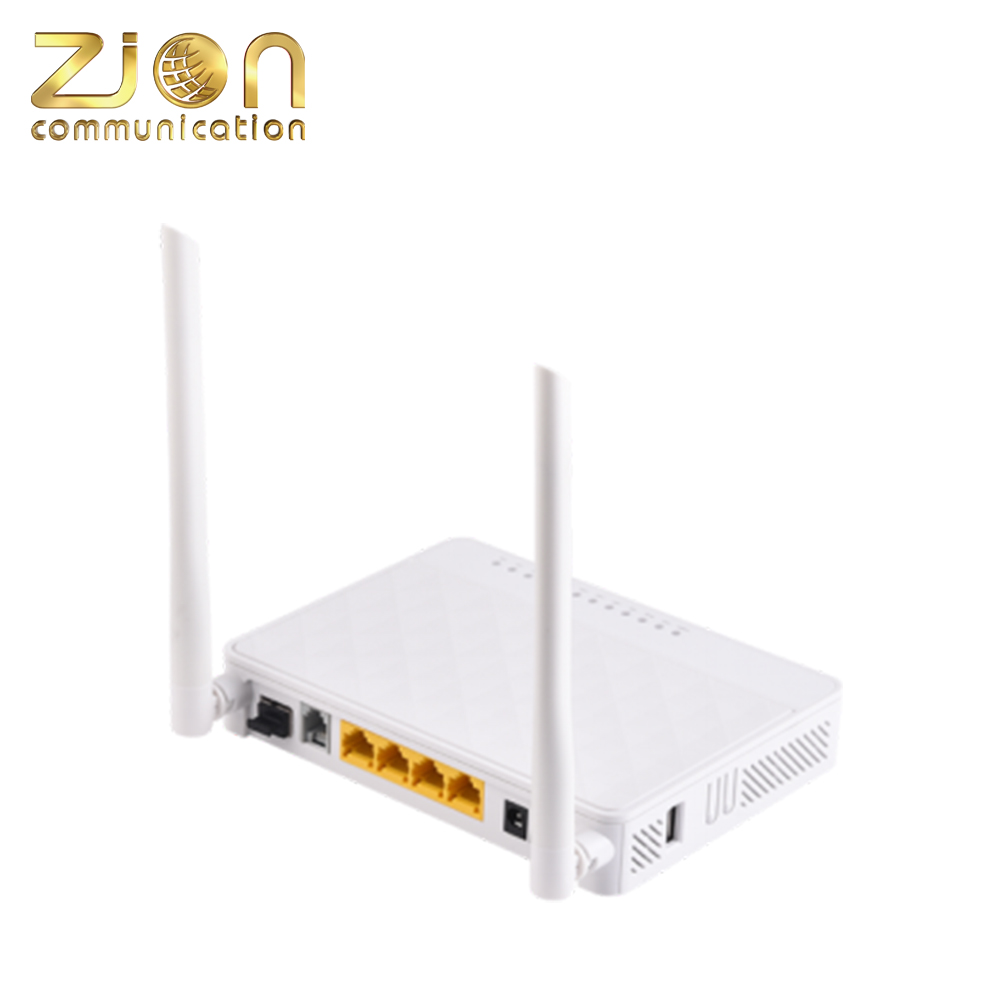

601EB ONU FTTH GPON optical network unit

Product introduction

PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

601EB model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH EPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Product features :

● Compliant with IEEE 802.3ah specification and OAM protocol

● Integrate OAM and TR-069 remote configuration and maintenance

● Compatible with Huawei,ZTE and Fiberhome OLT

● Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc

● Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, etc

● Support PPPoE/ Static IP/ DHCP

● Support IPv4, IPv6 and IPv4/IPv6

● Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering

● Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping

● Qos supports PQ, WRR, and CAR queue scheduling

● Provide 300Mbps 2.4GHz Wireless , support multiple SSID Settings,

● Support DDSN, ALG, DMZ and UPNP

● Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909

Product Specification :

Hardware Specifications

Size（L*W*H）

165mm (L) *162mm (W) *28mm (H)

Optical signal access

1*EPON

User interface

1GE+3FE+VOIP+2.4G WLAN+1USB

Or  4FE+VOIP+2.4G WLAN+1USB

Indicator light

POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/
TEL/INTERNET/LOS/PON

Button

Power switch Button, Reset Button, WLAN Button, WPS Button

Weight

300g

Power adapter input

100V～240V AC，50Hz～60Hz

PowerSupply requirement

12V DC，1.5A

Power consumption

<10w

Working temperature

-10°C ~ +45°C

Environment humidity

5% ~ 95% (Non-condensing)

PON Interface

Module type

SFP PX20+ SC/PC

Working wavelength

up 1310nm，down 1490nm

TX Optical power value

0.5～4dBm

RX Optical power sensitivity

 -27dBm

Transmission distance

0～20km

Transmission rate

Uplink 1.244Gbps；downlink 1.244Gbps

Ethernet interface

Interface type

 RJ45

Interface parameters

1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive Ethernet interfaces

Product Specification :

Wireless

Working mode

IEEE 802.11 b/g/n

Antenna pattern

2T2R External antenna

Antenna gain

5dBi

Wireless bandwidth

Support 20MHz/40MHz

Interface rate

Maximum rate 300Mbps

SSID

Up to 4 SSID broadcasts are supported

POTS interface

Interface type

1* RJ11

Voice agreement

SIP

Codecs

G.711/G.723/G.726/G.729

Integrated circuit protocol

Gr-909 protocol is applicable

Order Informations：

Marking

Per customer's request

Package

Per customer's request

Delivery time

Normally 25 days after received the deposit.

Brand

OEM
