Alarm Cable Shielded 0.2mm2(sectional area)

Conductor: 0.5mm Solid Conductor Material: Copper, Tinned Copper, CCA, TCCA Insulation: PVC Drain Wire: 0.5mm Solid Rip Cord Jacket: PVC White or as customers need
  • Shielded Alarm Cable 0.2mm2(sectional area)

  • hellosignal

Availability:

Product Description

Shielded Alarm Cable 0.2mm2

Applications
Wiring Burglar & Security alarms, public address systems,intercoms, telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.
Construction
Conductor0.50mm TC/BC/CCA/TCCA
ShieldedAL/PE FOIL
Insulation 0.95mm PVC
Drain WireTC/BC/CCA/TCCA
Rip CordCotton Wire
Outer jacketPVC(RoHs) flame retardant

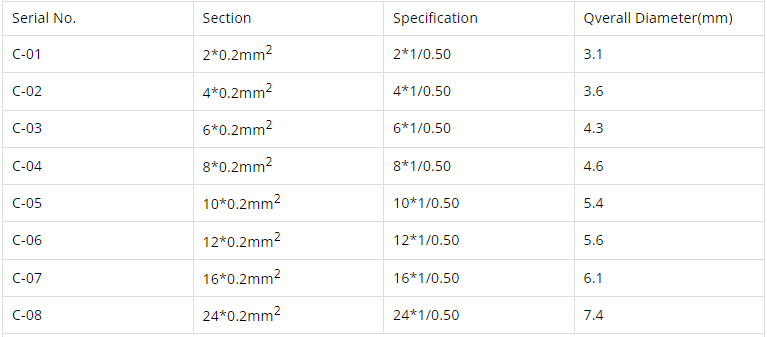

Structure of single shielded 0.2mm2 soft alarm cable
Serial No.SectionSpecificationQverall Diameter(mm)
C-012*0.2mm22*1/0.503.1
C-024*0.2mm24*1/0.503.6
C-036*0.2mm26*1/0.504.3
C-048*0.2mm28*1/0.504.6
C-0510*0.2mm210*1/0.505.4
C-0612*0.2mm212*1/0.505.6
C-0716*0.2mm216*1/0.506.1
C-0824*0.2mm224*1/0.507.4
Order Informations:
  MarkingHELLOSIGNAL 0.2mm2 Shielded Alarm Cable XXX M  (or Per customer's request)
  Inner Package100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer PackageCarton, Color Box, Pallet (or Per customer's request)
  Delivery timeNormally 15 days after received the deposit.
  BrandHELLOSIGNAL® OR OEM


Production Process Flow

#1 Insulation Line 1
Insulation Line 1

#2 Insulation Line 2
Insualtion Line 2
#3 Twisting Machine 1
Twisting Machine 1
#4 Twisting Machine 2
Twisting Machine 2
#5 Jacket Line
Jacket Line
#6 Testing Room1
Testing Room 1
#7 Testing Room2
Testing Room 2
#8 Loading Container

Container
