Alarm Cable unshielded 0.22mm2(sectional area)

Conductor: 7/0.2mm Stranded Conductor Material: Copper, Tinned Copper, CCA, TCCA Insulation: PVC Drain Wire: 7/0.2mm Stranded Rip Cord Jacket: PVC White or as customers need
  • Alarm Cable unshielded 0.22mm2(sectional area)

  • hellosignal

Availability:

Product Description

Alarm Cable unshielded 0.22mm2


Applications
Wiring Burglar & Security alarms, public address systems,intercoms, telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.

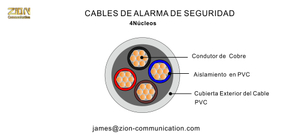

Construction
Conductor7 x 0.20mm TC/BC/CCA/TCCA
Shielded
Insulation 0.95mm PVC
Drain WireTC/BC/CCA/TCCA
Rip CordCotton Wire
Outer jacketPVC(RoHs) flame retardant
Structure of single shielded 0.22mm2 soft alarm cable
Serial No.SectionSpecificationQverall Diameter(mm)
B-012*0.22mm22*7/0.203
B-024*0.22mm24*7/0.203.5
B-036*0.22mm26*7/0.204.1
B-048*0.22mm28*7/0.204.5
B-0510*0.22mm210*7/0.205.2
B-0612*0.22mm212*7/0.205.4
B-0714*0.22mm214*7/0.205.8
B-0820*0.22mm220*7/0.206.8
B-0930*0.22mm230*7/0.208.4
B-1040*0.22mm240*7/0.2010
B-112*0.5+2*0.22mm22*16/0.20+2*7/0.203.9
B-122*0.5+4*0.22mm22*16/0.20+4*7/0.204.5
B-132*0.5+6*0.22mm22*16/0.20+6*7/0.204.9
B-142*0.5+8*0.22mm22*16/0.20+8*7/0.205.7
B-152*0.5+10*0.22mm22*16/0.20+10*7/0.206
B-162*0.5+12*0.22mm22*16/0.20+12*7/0.206.3
B-172*0.75+2*0.22mm22*24/0.20+2*7/0.204.2
B-182*0.75+4*0.22mm22*24/0.20+4*7/0.204.9
B-192*0.75+6*0.22mm22*24/0.20+6*7/0.205.3
B-202*0.75+8*0.22mm22*24/0.20+8*7/0.206.2
Order Informations:
  MarkingHELLOSIGNAL 0.22mm2 Unshielded Alarm Cable XXX M  (or Per customer's request)
  Inner Package100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer PackageCarton, Color Box, Pallet (or Per customer's request)
  Delivery timeNormally 15 days after received the deposit.
  BrandHELLOSIGNAL® OR OEM

Production Process Flow

#1 Insulation Line 1
Insulation Line 1

#2 Insulation Line 2
Insualtion Line 2
#3 Twisting Machine 1
Twisting Machine 1
#4 Twisting Machine 2
Twisting Machine 2
#5 Jacket Line
Jacket Line
#6 Testing Room1
Testing Room 1
#7 Testing Room2
Testing Room 2
#8 Loading Container

Container
