CANBus Cable

CANBus Cable

Application

Widely used in many bus systems,apply to bulid up network for
automation technology, combination control and controller,etc,
such as textile industry,construction machineryindustry,medical industry.










Cable Construction

Conductor: Stranded bare copper wire

Insulation: Foam PE

Cabling: PET tape wrapping

Shield: TC braid

Jacket: see attached list

Color: Purple(similar to RAL 4001)










Cable Construction

UV, Oil and grease resistance

High braiding coverage,excellent Anti-EMI performance

Abrasion resistance,Anti-hydrolysis

Torsion resistance,Easy bending


Cross Section

 CANBus Cable.CANBus Cable..

Technical data

Temperature range

 .-40℃ to 80℃


Test voltage

1500V 1min,no breakdown

Peak voltage

250V

Characteristic impedance

120±15 Ohm

Min bending radius

15x cable diameter

Loop conductor DC resistance at 20

≤164 ohm/km

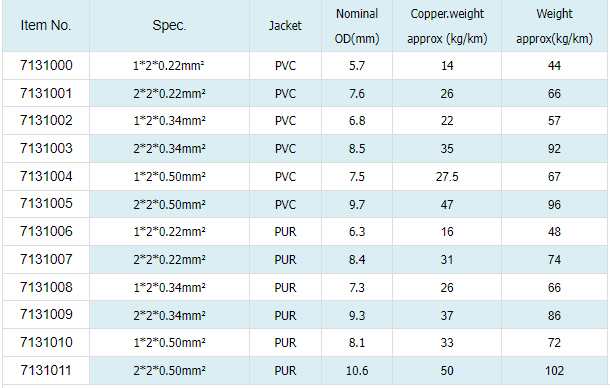

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7131000

1*2*0.22mm²

PVC

5.7

14

44

7131001

2*2*0.22mm²

PVC

7.6

26

66

7131002

1*2*0.34mm²

PVC

6.8

22

57

7131003

2*2*0.34mm²

PVC

8.5

35

92

7131004

1*2*0.50mm²

PVC

7.5

27.5

67

7131005

2*2*0.50mm²

PVC

9.7

47

96

7131006

1*2*0.22mm²

PUR

6.3

16

48

7131007

2*2*0.22mm²

PUR

8.4

31

74

7131008

1*2*0.34mm²

PUR

7.3

26

66

7131009

2*2*0.34mm²

PUR

9.3

37

86

7131010

1*2*0.50mm²

PUR

8.1

33

72

7131011

2*2*0.50mm²

PUR

10.6

50

102


Order Informations

Marking

HELLOSIGNAL Industrial CANBus Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
