INTERBUS Cable

  • INTERBUS Cable
  • hellosignal
  • 7131100

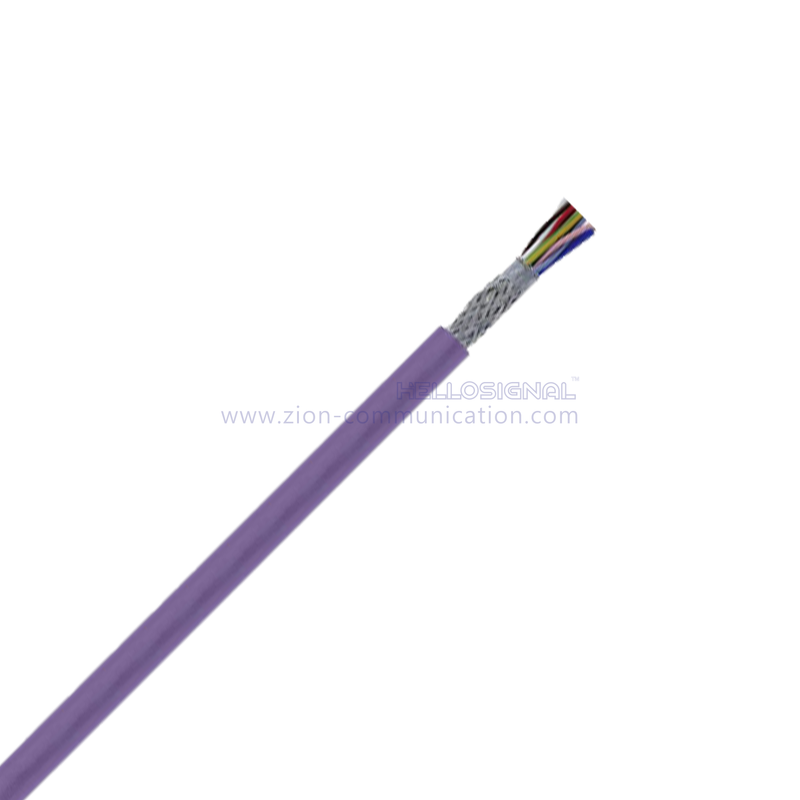

INTERBUS Cable

INTERBUS Cable INTERBUS Cable.

Application

Cable widely used in many industrial field bus system,
such as automobile,tobacco,warehouse,papermaking,food&beverage.

Cable Construction

Conductor: Stranded bare copper wire

Insulation: PE

Shield: BC braid

Jacket: see attached list

Color: Green or purple


Cable Construction

Oil and grease resistance

Torsion resistance,Easy bending

High braiding coverage,excellent Anti-EMI performance

UV and Abrasion resistance,Anti-hydrolysis

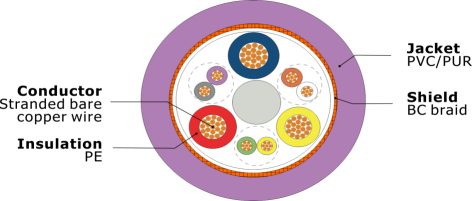

Cross Section

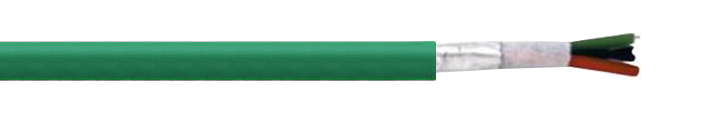

INTERBUS Cable..

 INTERBUS Cable...

Technical data

Temperature range

 .-40℃ to 80℃

Test voltage

1500V 1min,no breakdown

Characteristic impedance

110±15 Ohm

Min bending radius

10x cable diameter

Loop conductor DC resistance at 20

3P≤159.8 ohm/km      3C≤44 ohm/km


Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7131100

3*2*0.25mm²

PVC

7.5

32.5

63.5

7131101

3*2*0.25mm²

PUR

7.5

32.5

61

7131102

3*2*0.25mm²+3*1mm²

PVC

8.3

64

94

7131103

3*2*0.25mm²+3*1mm²

PUR

8.3

64

98


Order Informations

Marking

HELLOSIGNAL Industrial INTERBUS Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
