DeviceNet Cable

  • PROFIBUS-DP Cable
  • hellosignal
  • 7131300

Product Description

DeviceNet Cable

DeviceNet Cable

Application

Used in DeviceNet Bus system,connect industrial equipment
in automation process.It is a lower cost network solution
with opening network standard.

Cable Construction

Conductor:  Stranded tinned copper wire

Insulation1: Foam PE

Insulation2PVC

Drain wire: Tinned copper wire

Shield: AL/Mylar screen and TC braid

Jacket: see attached list


Cable Construction

Oil and grease resistance

Torsion resistance,Easy bending

Fire resistance meets IEC60332-1

High braiding coverage,excellent Anti-EMI performance

UV and Abrasion resistance,Anti-hydrolysis

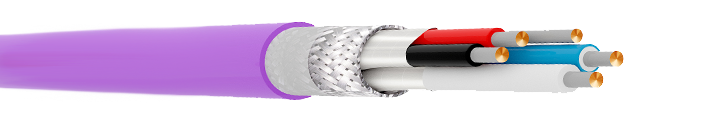

Cross Section

DeviceNet Cable..

Technical data

Temperature range

 .-40℃ to 80℃

Test voltage

1500V 1min,no breakdown

Characteristic impedance

120±15 Ohm

Min bending radius

10x cable diameter

Conductor resistance at 20

24AWG≤91.8 ohm/km

Insulation resistance at 20

24AWG≥1000MΩ.Km

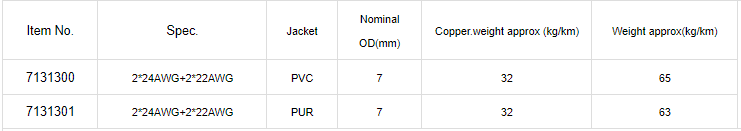

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7131300

2*24AWG+2*22AWG

PVC

7

32

65

7131301

2*24AWG+2*22AWG

PUR

7

32

63


Order Informations

Marking

HELLOSIGNAL Industrial DeviceNet Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.



▉ DEVICENET CABLE SELECTION

This range forms part of Zion communication comprehensive BUS cable networking portfolio. Please contact us to discuss the specific cable requirements of your DeviceNet application or other network cable requirements including ethernet cables, Profibus and Profinet cables.
