CC-Link Cable

  • CC-Link Cable
  • hellosignal
  • 7131200

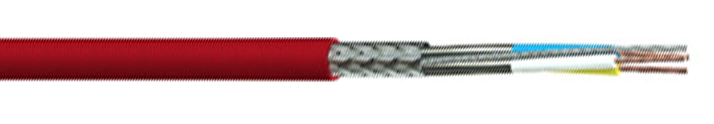

CC-Link Cable

CC-Link Cable

Application

Used to test sensor and propeller,with this cable,
CC-Link system can handle control data and information data quickly.
Apply to Automobile industry,Hotel monitor systems.

Cable Construction

Conductor: Stranded bare copper wire

Insulation: Foam PE

Drain wire: Tinned copper wire

Shield: AL/Mylar screen and TC braid

Jacket: see attached list

Color: Red


Cable Construction

Oil and grease resistance

AL/Mylar and copper wire braid,excellent Anti-EMI performance

Abrasion resistance,Anti-hydrolysis


Cross Section

 CC-Link Cable.

Technical data

Temperature range

 .-40℃ to 80℃

Test voltage

1500V 1min,no breakdown

Characteristic impedance

110±15 Ohm    110±6 Ohm5MHz

Min bending radius

15x cable diameter

Loop conductor DC resistance at 20

≤76 ohm/km

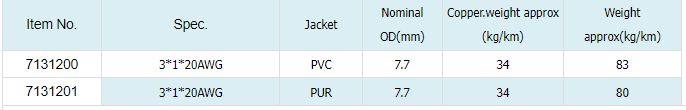

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7131200

3*1*20AWG

PVC

7.7

34

83

7131201

3*1*20AWG

PUR

7.7

34

80


Order Informations

Marking

HELLOSIGNAL Industrial CC-Link Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
