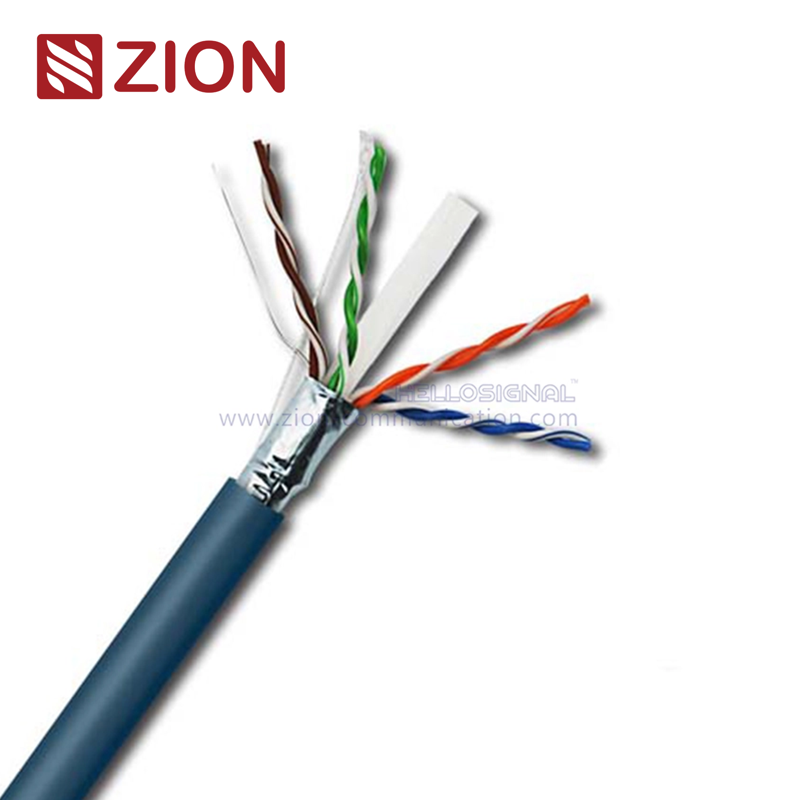

CAT 6A Network Cable
| Application: | ||||||
| Telephony Voice Wiring,10 Base-T,100 Base-T4 | ||||||
| UL Subject 444,EIA/TIA568 & ISO/IEC 11801 | ||||||
| Construction: | ||||||
| Center conductor | 4x2x0.573mm Bare Copper | |||||
| Dielectric | 1.05mm PE | |||||
| Drain Wire | 0.5mm Tinned Copper | |||||
| Shield | AL/PE Foil | |||||
| Rip | Cotton | |||||
| Outer jacket | 7.4mm PVC | |||||
| Electrical Characteristics at 20 °C | ||||||
| Conductor resistance (Max.) | 9.38 Ω/100m | |||||
| Insulation resistance (Min.) | 5000 MΩ.km | |||||
| Capacitance | < 330 pF/100m | |||||
| Impedance | 100 Ω (± 5%) | |||||
| Transport and storage temperature | 0 +50 °C | |||||
| Operating temperature | -20 +60 °C | |||||
| Performance Characteristics: | ||||||
| Frequency | Attenuation (Max.) | Near End (dB) | ACRF (dB/100m) | PS-NEXT | PS-ACRF | Return Loss |
| 1 MHz | 2.1 dB/100m | 74.3 | 67.8 | 72.3 | 64.8 | 20 dB |
| 10 MHz | 5.9 dB/100m | 59.3 | 47.8 | 57.3 | 44.8 | 25 dB |
| 16 MHz | 7.5 dB/100m | 43.7 | 56.2 | 54.2 | 40.7 | 25 dB |
| 20 MHz | 8.4 dB/100m | 54.8 | 54.8 | 52.8 | 38.8 | 25 dB |
| 25 MHz | 9.4 dB/100m | 53.3 | 39.8 | 51.3 | 36.8 | 24.3 dB |
| 62.5 MHz | 15.0 dB/100m | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 dB |
| 100 MHz | 19.1 dB/100m | 44.3 | 27.8 | 42.3 | 18.8 | 20.1 dB |
| 200 MHz | 27.6 dB/100m | 27.6 | 21.8 | 37.8 | 18.8 | 18.0 dB |
| 300MHz | 34.3 dB/100m | 34.3 | 18.3 | 35.1 | 15.3 | 16.8 dB |
| 500MHz | 45.3 dB/100m | 45.3 | 13.8 | 31.8 | 10.8 | 15.2 dB |
| * PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene | ||||||
| Order Informations: | ||||||
| Marking | HELLOSIGNAL CAT 6A XXX M (or Per customer's request) | |||||
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |||||
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |||||
| Delivery time | Normally 15 days after received the deposit. | |||||
| Brand | HELLOSIGNAL® OR OEM | |||||
