Endoscope cable
hellosignal
859802
Product Description
◆Application | ◆Technical data | ||||||||||
This cable is used to connect the endoscopes and other medical facilities to examine organs of human. | ● Temperature range | ||||||||||
-15℃ to 80℃ | |||||||||||

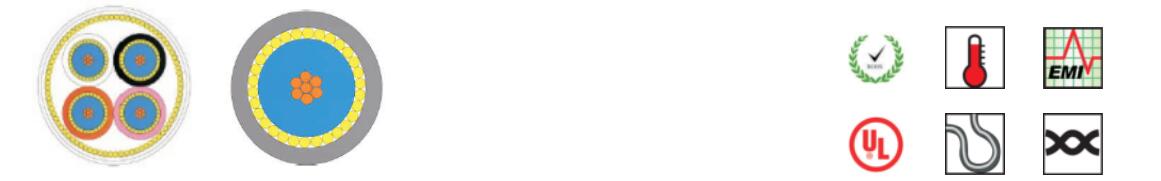

◆Cable Construction | ● Conductor DC resistance at 20℃ | ||||||||||
Conductor: stranded alloy conductor | ≤7500 ohm/km | ||||||||||
Insulation: Fluoroplastic | ● Min bending radius | ||||||||||
Shield1: Tinned copper alloy | 15X cable diameter | ||||||||||
Shield2: Cu metalized polyester tape | ● Characteristic impedance | ||||||||||
Shield3: Tinned copper | 50±5 Ohm | ||||||||||
Jacket1: PET tape | ● Insulation resistance | ||||||||||
Jacket2: PET | ≥1000M ohm.km | ||||||||||
Jacket3: PET/AC | ● Dielectric strength | ||||||||||
◆Product Feature | AC 500V/min | ||||||||||
Torsion resistance,Easy bending | |||||||||||
Excellent Anti-EMI performance | |||||||||||
Excellent transmission performance | |||||||||||
Product List | |||||||||||
Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
859802 | 4*42AWGMCC | PET/AC | 1 | 18 | 31 | ||||||
Order Informations: | |||||||||||
Marking | HELLOSIGNAL Endoscope Cable XXXFT/M | ||||||||||
Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
More informations | please contact with us. | ||||||||||
Brand | HELLOSIGNALTM OR OEM |
