Probe Cable for Ultrasound Equipment
hellosignal
859801
Product Description
◆Application | ◆Technical data | ||||||||||
Used in Ultrasound equipment | ● Temperature range | ||||||||||

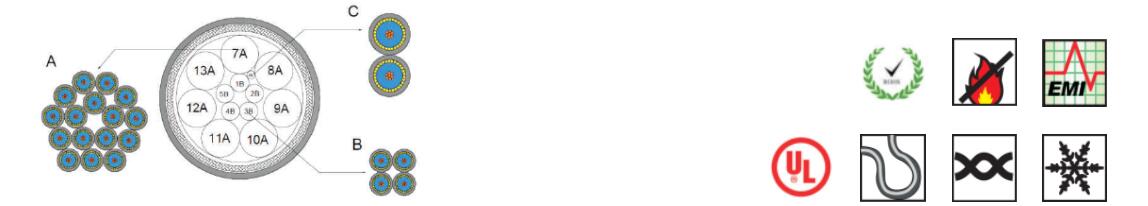

◆Cable Construction | -15℃ to 80℃ | ||||||||||
Conductor: stranded alloy conductor | ● Center conductor resistance at 20℃ | ||||||||||
Insulation: Fluoroplastic | Max 5000 ohm/km | ||||||||||
Shield1: alloy wire | ● Rated voltage | ||||||||||
Jacket1: PET | 30V | ||||||||||
Tape: PET | ● Characteristic impedance | ||||||||||
Shield2: alloy wire | 50±5 Ohm | ||||||||||
Jacket2: PVC | ● Insulation resistance | ||||||||||
◆Product Feature | Min 1000M ohm.km | ||||||||||
This micro-coaxial cable,with excellent extensive fire resistance, bending | ● Dielectric strength | ||||||||||
and twisting,anti-EMI and perfect high speed signal transmission,are | AC 500V,1min | ||||||||||
perfect for using in hinges on portabl devices. | ● Capacitance | ||||||||||
| 1kHz:110±20nF/m | ||||||||||
| ● Attenuation | ||||||||||
| Max0.61dB/m | ||||||||||
Product List | |||||||||||
Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
859801 | 7*16*40AWG+5*4*40AWG+2*40AWG | PVC | 8 | 31.5 | 68 | ||||||
Order Informations: | |||||||||||
Marking | HELLOSIGNAL Probe Cable for Ultrasound Equipment XXXFT/M | ||||||||||
Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
More informations | please contact with us. | ||||||||||
Brand | HELLOSIGNALTM OR OEM |
