High-Temperature Low-Loss Medical Coaxial Cable
hellosignal
859807
| ◆Application | ◆Technical data | ||||||||||
| Apply to the scalpel | ● Temperature range | ||||||||||

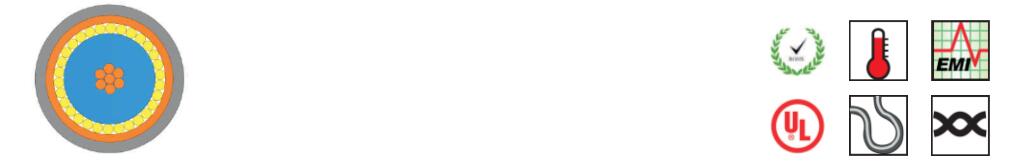

| ◆Cable Construction | -15℃ to 90℃ | ||||||||||
| Conductor: stranded conductor | ● Conductor resistance (Double bridge) | ||||||||||
| Insulation: Fluoroplastic | Max. 300 ohm/km | ||||||||||
| Shield:Cu metalized polyester tape and silver-coated annealed copper | ● Rated voltage | ||||||||||
| Jacket: Fluoroplastic | 30V | ||||||||||
| ◆Product Feature | ● Characteristic impedance | ||||||||||
| Soft and flexible,small frictional resistance, amooth and round appearance | 50±3 Ohm | ||||||||||
| Ergonomics,small size,light weight,high flexibility and intuitive security | ● Insulation resistance | ||||||||||
| Durability，flexibility and reliability，resistant to abrasion，sharp stretch， | Min 1524 Mohm.km | ||||||||||
| scratch，torsion，etc. | ● Dielectric strength | ||||||||||
| Sterlization requirements：suitable for EtO(ethylene oxide) ,autoclaving, cold | AC 1000V/min | ||||||||||
| treatment, CIDEX(glutaraidehyde)soaked, IPA(isopropyl alcohol)to | ● Capacitance | ||||||||||
| clean,etc. | 1kHz：Nom.95nF/m | ||||||||||
| | ● Attenuation(Max) | ||||||||||
| Product List | 2.0 dB/m (2.5GHz) | ||||||||||
| Item NO. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859807 | 29AWG | 1.2 | 1.7 | 3.6 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL High-Temperature Low-Loss Medical Coaxial Cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
