Medical Flexible Cable
hellosignal
859806
Product Description
◆Application | ◆Technical data | ||||||||||
Apply to the scalpel | ● Temperature range | ||||||||||

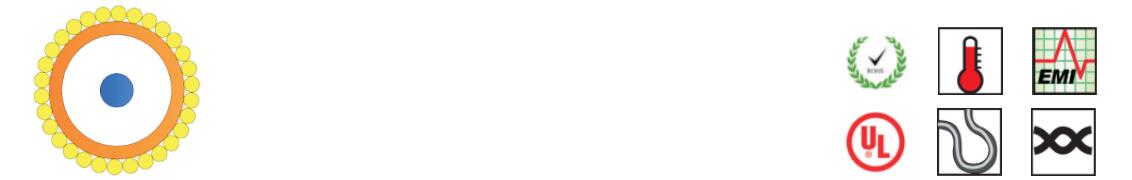

◆Cable Construction | -15℃ to 90℃ | ||||||||||
Conductor: stranded conductor | ● Conductor resistance (Double bridge) | ||||||||||
Insulation: Fluoroplastic | Max. 300 ohm/km | ||||||||||
Shield:Cu metalized polyester tape and silver-coated annealed copper | ● Rated voltage | ||||||||||
◆Product Feature | 30V | ||||||||||
Soft and flexible,small frictional resistance, amooth and round appearance | ● Characteristic impedance | ||||||||||
Ergonomics,small size,light weight,high flexibility and intuitive security | 50±3 Ohm | ||||||||||
Durability,flexibility and reliability,resistant to abrasion,sharp stretch,scratch,torsion,etc. | ● Insulation resistance | ||||||||||
Min 1524 Mohm.km | |||||||||||
Sterlization requirements:suitable for EtO(ethylene oxide) ,autoclaving, cold treatment, CIDEX(glutaraidehyde)soaked, IPA(isopropyl alcohol)to clean,etc. | ● Dielectric strength | ||||||||||
AC 1000V/min | |||||||||||
● Capacitance | |||||||||||
| 1kHz:Nom.95nF/m | ||||||||||
| ● Attenuation(Max) | ||||||||||
| 2.0 dB/m (2.5GHz) | ||||||||||
Product List | |||||||||||
Item NO. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx(kg/km) | |||||||
859806 | 29AWG | 1.18 | 1.9 | 4.6 | |||||||
Order Informations: | |||||||||||
Marking | HELLOSIGNAL Medical Equipment Cable XXXFT/M | ||||||||||
Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
More informations | please contact with us. | ||||||||||
Brand | HELLOSIGNALTM OR OEM |
