F/FTP CAT 6A Twisted Pair Installation Cable
| Construction | ||||||||
| Conductor: | 23 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | Skin Foam Skin | |||||||
| Insulation Colors: | Blue,White/Blue ; Orange,White/Orange | |||||||
| Green,White/Green; Brown,White/Brown | ||||||||
| Shield: | Individual Pair shield, Al/Pet Foil, Foil face out | |||||||
| Rip Cord: | Cotton | |||||||
| Overall Shield | Al/Pet Foil | |||||||
| Out Jacket: | 8.0 ±0.3 mm | |||||||
| Application | Electrical Characteristics | |||||||
| Suitable for structured premises cabling; | Impedance: | 4 - 100MHz 100±15 Ohms | ||||||
| Transmission of digigal & analogue voice & data signals; | 100 - 200MHz 100±22 Ohms | |||||||
| Especially suitable for all Class FA applications; | 200 - 1000MHz 100±32 Ohms | |||||||
| ISDN, Ethernet 10 Base-T,Fast Ethernet 100Base-T, | Max.Conductor DC Resistance 20℃ | 8.7 Ohms/100m | ||||||
| Gigabit Ethernet 1000Base-T,10G Base-T.(IEEE 802.3); | ||||||||
| Token Ring 4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, | Res. unbalance (%) | Max. 2.5 | ||||||
| ATM 155Mbits/s.(IEEE 802.5). | Pair to Ground Capacitance Unbalance | 330 pF/100m | ||||||
| Standard | ||||||||
| IEC / ISO 61156-5 ; ISO / IEC 11801; ANSI / TIA568C.2 | Transfer Impendance | Max 10 mOhms/m @100Mhz | ||||||
| Order Information | Installation temp. | 0 - 50℃ | ||||||
| PVC / CMX / CM / CMR / CMP / LSZH / LDPE | Operation temp. | -20 - 60℃ | ||||||
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20.0 | 2.1 | 570.0 | 45.0 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 5.9 | 545.0 | 45.0 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25.0 | 7.5 | 543.0 | 45.0 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.4 | 542.0 | 45.0 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.5 | 540.0 | 45.0 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.0 | 539.0 | 45.0 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.1 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 27.6 | 537.0 | 45.0 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 34.3 | 536.0 | 45.0 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 40.1 | 536.0 | 45.0 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 536.0 | 45.0 | 33.8 | 31.8 | 13.8 | 10.8 |
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL F/FTP CAT 6A XXX (or Per customer's request) | |||||||

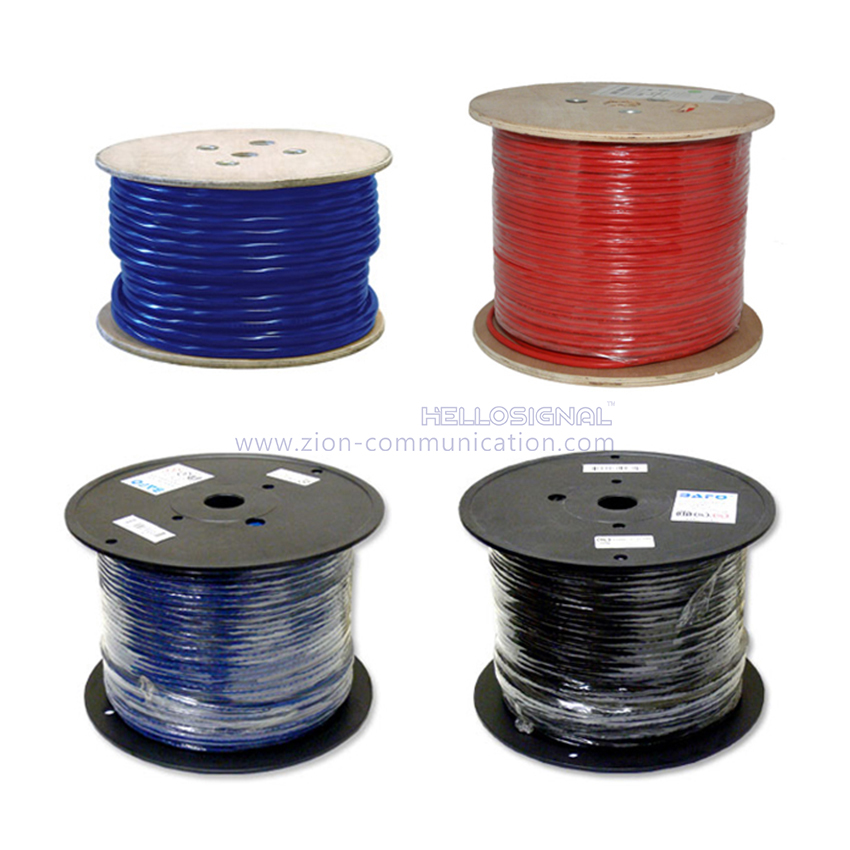

| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
