A resilient offshore link is an engineered chain, not simply a subsea cable. This guide shows how to define the passive fiber path, isolate common-mode risks, assign interfaces, and prepare an RFQ that can be tested and restored.
Offshore oil and gas operations increasingly depend on continuous, high-capacity communications for production data, process monitoring, video, voice, cybersecurity tools, remote engineering, and operational support. The fiber system is therefore more than a cable between a platform and the coast.
Every connection in this chain is a physical interface, a contractor handover, or a potential common-mode failure. Two fiber pairs can still lose service after a single excavator cut, flooded chamber, ODF fire, or landing-station power failure.
Dedicated offshore fiber networks are increasingly planned as shared operational infrastructure with room for expansion, multiple assets, and onshore integration. Petrobras projects in Brazil have been described as trunk-and-branch systems connecting groups of production platforms to two cable landing stations, while projects in Guyana and the Gulf of Mexico show the same need to link offshore facilities with onshore operations and geographically separated landings.1235
Projects differ by owner, geography, and design, but the common lesson is stable: connectivity must be planned for operational integration and future assets, rather than treated as an isolated cable purchase.
Procurement should begin with service and risk definitions. Cable construction, fiber count, and topology should follow from the services that must survive a fault and the recovery objectives that apply to them.
Important: A communications network used by production operations is not automatically suitable for safety instrumented or emergency shutdown functions. Functional-safety, hazardous-area, and operator-specific requirements need separate assessment by qualified engineers.
The architecture should preserve separation from offshore assets to the operational application. Water depth, repair strategy, future tie-ins, physical route risks, and the consequence of a branch or trunk failure all affect the appropriate design.
The subsea segment may be point-to-point, trunk-and-branch, ring, or dual-homed. Specify repeatered or repeaterless design; trunk, branching-unit, and platform-spur arrangement; fiber type and allocation; route-section protection; shore-end treatment; platform hang-off and termination; repair philosophy; and provisions for future platforms or subsea monitoring.
ITU-T G.978 and G.976 provide useful baselines for submarine cable characteristics and test methods, but the final design must reflect the owner specification, marine survey, installation method, and local regulatory conditions.67 Armor should follow route risk: shallow water, anchorage zones, fishing activity, rocky seabed, and platform approaches may require greater protection than deep-water sections.
The landing area transitions between marine and terrestrial infrastructure. Define the marine/terrestrial demarcation, beach-joint ownership, cable-entry sealing, drainage, flood protection, pulling and bend-radius controls, continuous fiber numbering, and splice-test responsibilities. Treat the landing station as an operational site with the space, power, cooling, fire protection, security, and environmental monitoring required to manage the handoff.8

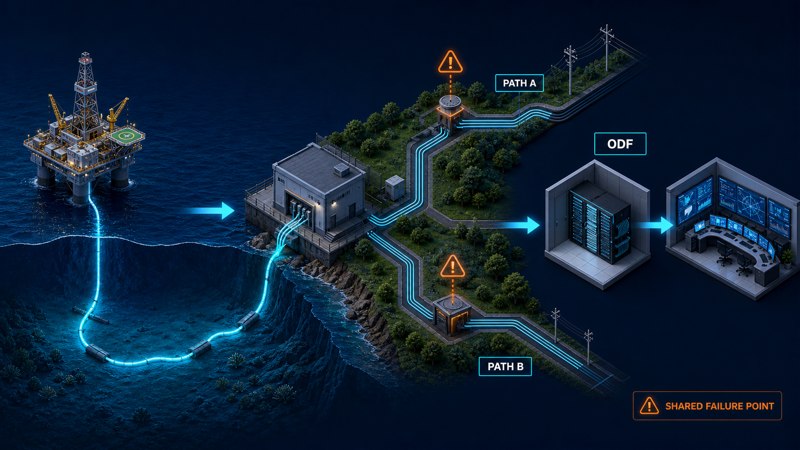

True route diversity must be tested against physical maps and site plans. Path A and Path B should not quietly share a beach manhole, cable entry, duct bank, bridge, rail or road crossing, handhole, building entrance, fire compartment, ODF, active chassis, power supply, or upstream carrier. Where full separation is impossible, document the shared-risk segment and consider an alternative path for minimum operational communications.
The ODF controls fiber identity, splicing, patching, testing, and restoration. Separate and label working, protection, spare, and future fibers; define connector type and polish; protect bend radii and cable routing; provide suitable access and patch-cord management; and retain permanent identifiers matching route, joint, splice, and test records. One fiber ID should carry from the offshore asset through every joint and ODF port to the control-center equipment.
At the control center, preserve outside-plant separation into active transmission, routing, security, and operational systems. A resilient Path A/B service may require separate building entrances, ODFs, transmission shelves, power systems, network devices, security zones, and WAN dependencies. Verify failover at service level: optical continuity alone does not prove that routing, applications, authentication, time synchronization, and displays will recover.

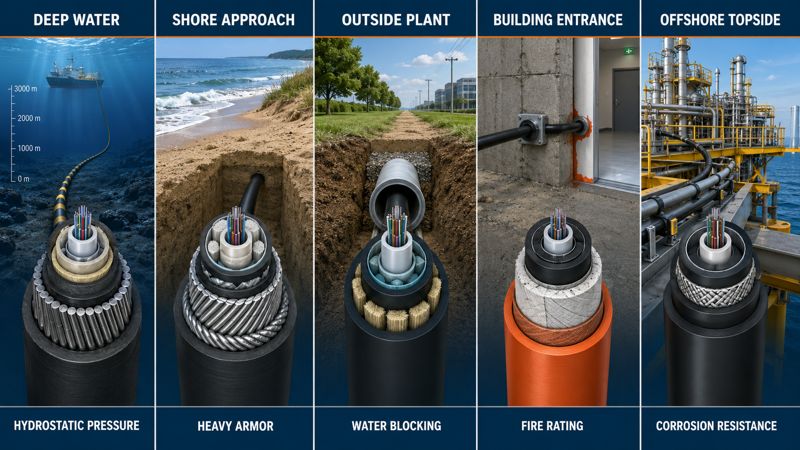

One cable family rarely fits the complete route. A procurement package normally combines several constructions through engineered transition points.
| Route zone | Typical requirement | Procurement focus |
|---|---|---|
| Deep-water subsea | Pressure resistance, longitudinal water blocking, tensile performance, long design life | System-qualified submarine cable and joints |
| Shallow water / shore approach | External-aggression risk from anchors, fishing, abrasion, coastal activity | Armor level, burial design, shore protection |
| Terrestrial outside plant | Duct, direct-buried, aerial, or water-crossing exposure | Crush, impact, moisture, UV, rodents, fire transition, local code |
| Building entrance | Outdoor-to-indoor transition and fire zoning | Approved transition cable or defined transition splice |
| Landing/control room | High-density routing and maintainability | ODF, splice trays, adapters, patch cords, labels, cable management |
| Offshore topside | Salt, vibration, oil/mud exposure, fire performance, hazardous-area constraints | Marine/offshore approval and operator specification |
IEC 60794-3 covers outdoor cable applications, while IEC 60794-1-1 provides generic cable requirements. IEC 60794-1-210:2026 defines a hydrostatic-pressure method for underwater optical cables.91011 Offshore environmental and hazardous-area conditions also require project-specific review under applicable operator and IEC 61892 requirements.121314
“Fiber count: 24” is not a complete capacity requirement. An RFQ should show the allocation for working transmission, protection or restoration, branches, network management, future dark fibers, tests or monitoring, and unassigned engineering spares.
Tie future capacity to a concrete scenario such as additional FPSOs, a new landing point, more video workloads, or distributed acoustic sensing. Otherwise, nominal spare fibers may not be accessible at the branch or ODF where they are needed. Specify fiber type end to end: G.652.D is common for general single-mode infrastructure, while bend-insensitive G.657 variants can suit constrained routing and patching where splicing, attenuation, mode-field, and transmission compatibility are checked.
Multi-contractor delivery creates risk at boundaries. Assign one accountable party and defined handover evidence for every interface.
| Interface | Required handover evidence |
|---|---|
| Subsea cable to beach joint | Joint record, fiber map, OTDR traces, optical-loss record, as-laid data |
| Beach manhole to landing station | Route drawing, duct record, pulling log, splice record, sealing inspection |
| Landing ODF to terminal equipment | Port schedule, connector inspection, patching record, link-loss result |
| Landing station to terrestrial Path A/B | Geographic diversity drawing, joint schedule, separate acceptance results |
| Facility entrance to control-center ODF | Firestop record, cable-ID continuity, route drawing, loss budget |
| Passive fiber to active network | Interface type, optical power limits, alarm test, service-failover result |
The matrix should also identify the party responsible for connector cleaning, launch and receive cords, refractive-index settings, native test-file retention, and resolution of differences between contractors.

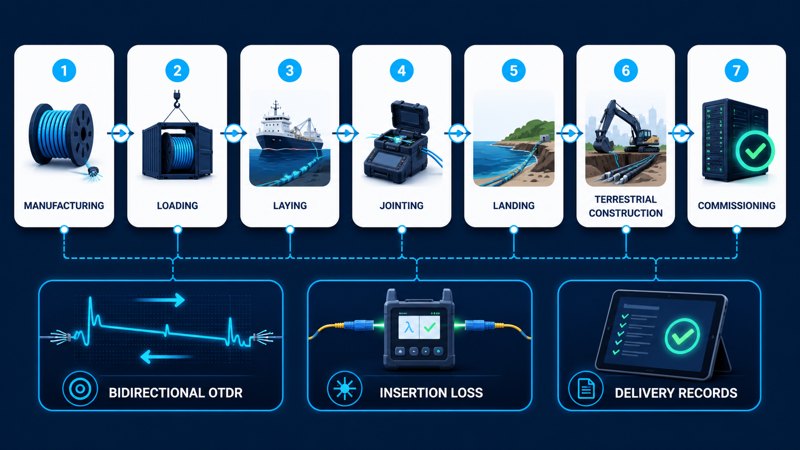

Testing is not a final-stage event. Capture baseline measurements after manufacturing, loading, installation, jointing, landing, terrestrial construction, and final commissioning so that damage or excess loss can be located in time.
ISO/IEC 14763-3:2024 provides current procedures for testing installed optical fiber cabling in premises environments and is relevant to landing-station and control-center portions of the system.15

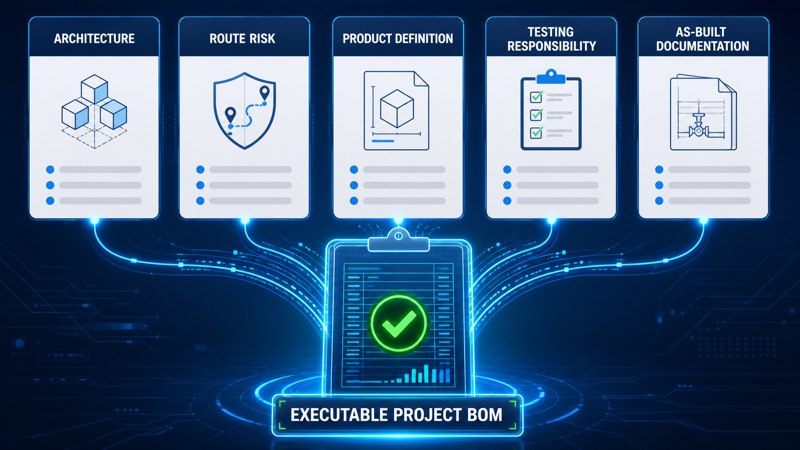

Before issuing an RFQ, ensure the package makes the engineering decisions, interface boundaries, and evidence requirements visible to every bidder.
A project-specific passive BOM may include submarine trunk and branch sections; branching units and joints; shore-end protection; beach manhole hardware; land cable; terrestrial Path A and B cables; ducts and handholes; outdoor and indoor closures; landing-station and control-center ODFs; splice trays, pigtails, adapters, patch cords, and cable managers; building-entry and firestop materials; required grounding or bonding accessories; commissioning test cords and cleaning kits; and strategic repair spares.
Keep the wet plant as a specialist submarine-system package. Terrestrial cables, ODFs, and passive connectivity can be separate lots only when the interface specifications, quality controls, warranty boundaries, and end-to-end tests are tightly managed.
Two cable IDs are not redundant when both routes share a duct, bridge, manhole, entrance room, or ODF.
Deep water, shore approach, terrestrial duct, building entrance, and offshore topside require different mechanical, chemical, fire, and installation decisions.
Dark fiber in a trunk has limited value when the branching architecture cannot connect it to a future platform.
Connector type, frame capacity, splice layout, and labeling affect the full fiber map and the acceptance plan.
Native OTDR traces and instrument configuration data are needed for later comparison, fault localization, and warranty review.
A healthy backup fiber does not prove applications will switch correctly or that the backup path has independent power and active equipment.
Redundancy requires separation beyond fiber pairs. Check Path A and Path B for shared beach entries, ducts, handholes, building entrances, ODFs, active equipment, power systems, and carrier dependencies.
Specify an allocation plan, not only a total fiber count. Identify working, protection, branch, management, future, test, and engineering-spare fibers, and connect spare capacity to an accessible expansion scenario.
Use lifecycle baselines and, where applicable, continuity and polarity checks, connector inspection, bidirectional insertion-loss and OTDR testing, splice-loss review, required dispersion tests, service failover tests, and final as-built records with native test files.
Prepare service objectives, route and environmental data, segment-by-segment product requirements, fiber allocation, interface ownership, test methods and thresholds, restoration expectations, and required final documentation.
For project support, prepare the route survey, asset and service list, required availability, fiber allocation, segment environments, interface schedule, quantities, drawings, delivery window, and testing requirements.
