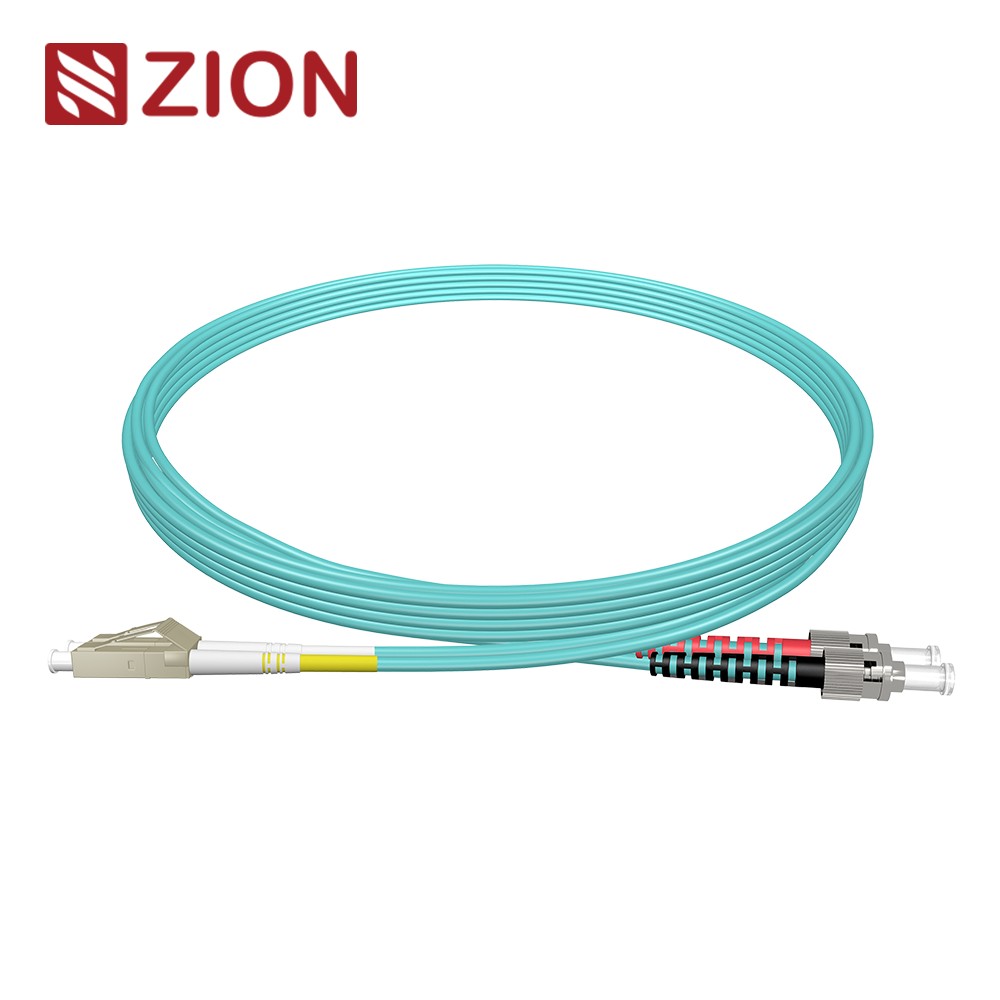

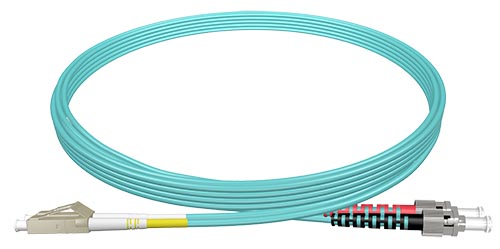

LC to ST fiber patch cord
HELLOSIGNAL
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
This LC-ST multimode fiber optic patch cord is a high-quality, industry-standard product built for providing high-speed optical communications in diverse professional network settings. This duplex patch cord, fitted with OM3 grade multimode fiber and a durable aqua jacket, is specially built for short and medium-distance connections that are not exceeding either one inch or one foot.
The dual deployment of the LC-ST connector pair endows the tool with broad connectivity in networking and telecom equipment, coalescing the modern-day LC interfaces and traditional ST ports. The duplex design makes it possible to have bilateral communications; thus, it is usable in faster data exchange, i.e., two-way communication.
Connector Types
LC, which is female, and the counterpart is ST, which is male.
Fiber Type
OM3 Multimode modalities (50/125 µm).
Duplex Configuration
Implements a twin fiber capacity with respect to send and receive performance.
Length
1 Meter (patch panel cables used in racks and other usually-length-related connections are standard-length-based).
Jacket Color
Aqua (this is the color of OM3 strands most widely used).
Jacket Material
Deteriorating PVC or LSZH (Low Smoke Zero Halogen); both options exist.
High Performance
Low Insertion Loss (≤ 0.3 dB) and High Return Loss (≥ 30 dB).
Tested for Quality
100 percent of the factory tested for insertion loss and back reflection.
Protective Dust Caps
Dust caps that come with the device are removable and purpose-manufactured to protect the connectors from dust when not in use.
Connector Boot Size
The boot size analyzed and concluded is 3 mm for making the connections secure and strain-relieved.
This LC-ST OM3 multimode duplex patch cord is the best fit for:
Data Centers and Server Rooms: Connectivity of a high density of connections interlinking switches, servers, and patch panels.
High-Speed LAN and Campus Networks: The distribution links are truly dependable for the backbone infrastructure, building, and campus design.
Backbone Cabling and Equipment Interconnection: Robust fiber backbones interconnecting the main network equipment.
Telecom Rooms and FTTH Termination Points: Fiber termination and distribution equipment interaction with a seamless connection.
Patch Panels and Switch Connections: Involves patching flexibilities with an organized network layout.
Multimode Optical Testing and Lab Environments: Most suitable for the laboratories when the testing setups depend on multimode fiber connectivity.
Parameter | Specification |
Fiber Type | OM3 Multimode (50/125 µm) |
Connector A | LC (female) |
Connector B | ST (male) |
Fiber Mode | Multimode |
Cable Configuration | Duplex |
Length | 1 Meter |
Jacket Color | Aqua |
Insertion Loss | ≤ 0.3 dB (typical) |
Return Loss | ≥ 30 dB |
Jacket Material | PVC or LSZH |
Operating Temperature | -20°C to +70°C |
Country of Origin | China |
■ OEM/ODM service for you
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable

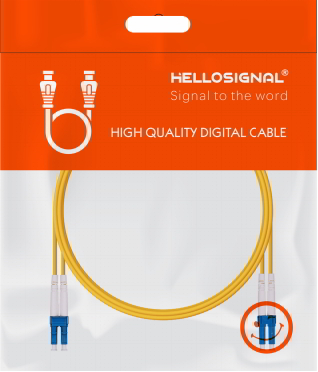

• Label/PE bag/Carton design
• Different Color & Different Lengths Available
