Understanding that patch cords are not the only item for building top-notch network systems, a lot more items are needed for the task at hand. For the whole cable assembly solution to be given, there is a variety of accessories ensuring the best connectivity situation, the most efficient cable management, and the nicest capability of easy scaling. This guide breaks down the key accessories you need—including patch panels, fiber pigtails, adapters, loopbacks, and more.

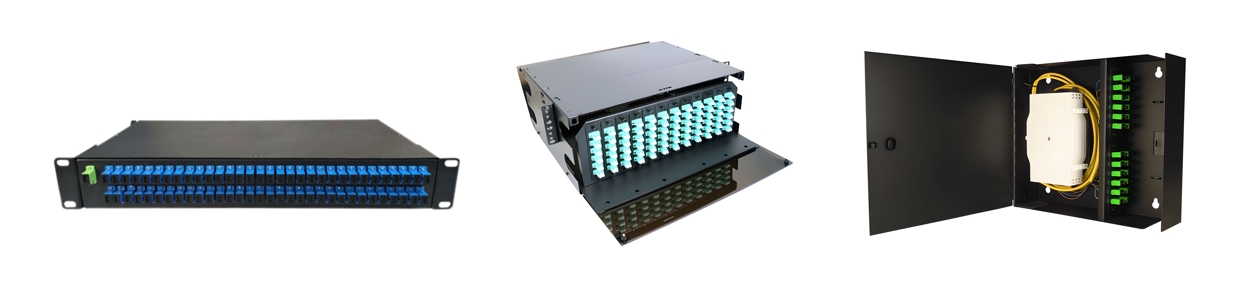

Patch panels play a major role by providing the interface for connections between networking equipment and cable infrastructure. This is because they come with features for managing patch cords. They are not only aesthetically pleasing but also enhance performance.
Feature | Fiber Patch Panel | Copper Patch Panel | Pre-Terminated Panel | High-Density Panel |
Connector Type | SC, LC, ST, FC | RJ45 | SC/LC + pigtails | SC, LC |
Installation | 1U, 2U rack-mount | Wall-mount, rack | Plug & play | Space-efficient |
Best for | FTTH, ODF, backbone cabling | LAN, telecom | Quick setups | Data centers |
Capacity | 12–144 cores | 12–48 ports | Factory-configured | Up to 96/144 ports |
Pro Tip: Select modular patch panels if your need for consistent upgrade or modification of port configuration.

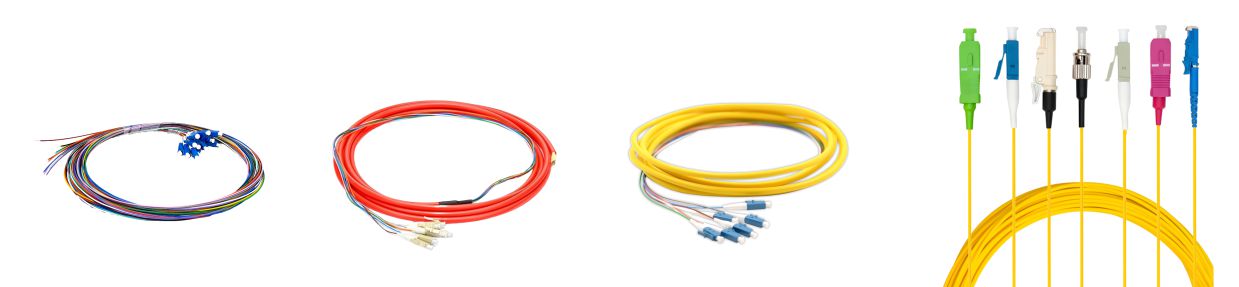

Relying on fiber optic pigtails, which patch panels are connected with using fusion splicing or mechanical splicing, ensures that installation time and reliability are achievable.
Feature | Details |
Cable Type | Singlemode (G.652D, G.657A), Multimode (OM1–OM4) |
Connector | SC/APC, LC/UPC, FC, ST |
Fiber Count | 1, 6, 12, 24-core options |
Jacket Type | PVC / LSZH / Armored |
Use Case | ODF, rack mount panel, splice closures |
Customization Available: Terminated pre-pigtails labeled and/or color-coded for convenience and rapid identification.

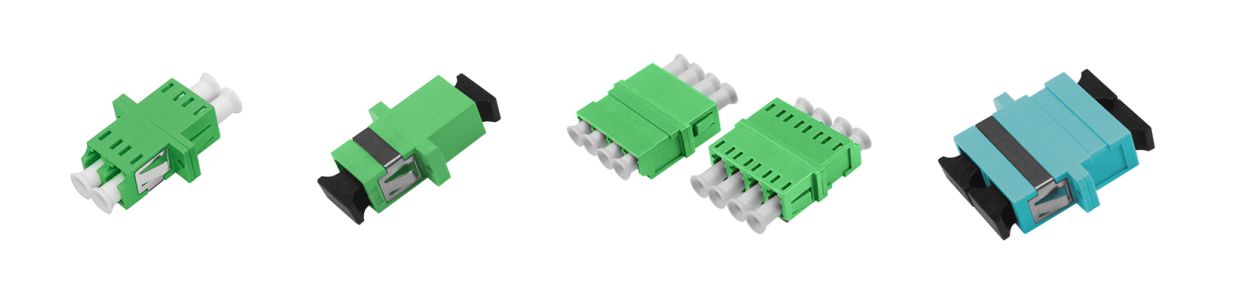

The fiber adapters, hence, having a small footprint became the prime fixture where fiber connectors align to minimize insertion loss and reflection, which are found most commonly on panels and as well wall boxes.
Adapter Type | Description | Use Case | Sleeve Material |
SC-SC Duplex | Click-in, stable | LAN, ODF | Ceramic |
LC-LC Simplex | Compact, ideal for high-density | Data centers | Ceramic |
FC-FC | Threaded connection | Industrial use | Phosphor bronze |
SC-LC Hybrid | Cross-connector | Upgrades/conversions | Ceramic |
MPO/MTP | 12/24-fiber arrays | High-speed networks | Ceramic |
Each time you use connectors, always ensure they're equipped with caps or shutters aimed at preventing contamination.
Jumbled cables lead to distortion of signals, inadequate airflow, and a complicated maintenance. Cable management tools offer a solution by ensuring the maintenance of a professional and scalable environment.
Tool | Function | Mounting Style |
Horizontal Cable Manager | Route patch cords across rack | 1U/2U rackmount |
Vertical Cable Manager | Support cables along rack height | Side-mounted |
Cable Ties / Velcro | Bundle cables neatly | Adjustable |
Brush Panels | Protect airflow while routing cables | Front panel |
Labeling Kits | Identify ports and connections | Adhesive or snap-on |
Best Practice: Always include a minimum bend radius; this allows for the fibers not to be damaged while still allowing efficient signal transfer.
In fiber networks, loopbacks that redirect light and attenuators that demote signals are often underrated but integral elements for diagnostics and simulation purposes.
Accessory | Description | Common Usage |
Fiber Loopback Module | Routes signal back to origin | Optical port testing |
RJ45 Loopback | Test Ethernet ports | Copper testing |
Fixed Attenuator | Reduces signal power by fixed dB | DWDM networks |
Variable Attenuator | Manually adjust loss | Test labs, troubleshooting |
This is common when used to verify design correctness, reliability, or maintenance diagnostics.
Besides the essentials, a couple of extras could really make your patch cord deployment just perfect:
Item | Purpose | Notes |
Fiber Enclosures | Housing for splices/adapters | Wall-mount or rack-mount |
Media Converters | Fiber to Ethernet conversion | Singlemode/multimode compatible |
Transceivers (SFP/SFP+) | Interface with switches/routers | 1G/10G/40G available |
Cleaning Kits | Remove dust/oil from connectors | Includes swabs, IPA, lint-free cloths |
For outdoor or industrial environment, consider the enclosures which are IP-rated and armored fiber patch cables.
Whenever you find yourself in the process of designing a new network, expanding data center or upgrading FTTH solution, the right patch cord accessories are decisive in long-term performance as well as manageability. What fiber patch panels and pigtails consist of along with adapters, loopbacks, and cable organizers form the components that make a professional-level setup possible.
