GCYFXTY Uni-tube Air-Blown Micro Optical Fiber Cable

GCYFXTY

Uni-tube Air-Blown Micro Optical Fiber Cable For FTTx Network

Power system Lighting-prone areas

■ Product Overview:

The cable structure consists of optical fibers housed in a high-modulus plastic loose tube filled with tube-filling compound. Aramid yarn reinforcement is applied outside the loose tube, followed by an extruded grooved sheath. This cable is specifically designed for air-blowing installations in access networks.



■ Key Features:

• Compact size and lightweight: Facilitates easy deployment.

• Tube filling compound: Provides critical fiber protection.

• Grooved sheath design: Enhances air-blowing efficiency.

• Phased blowing installation: Reduces initial investment costs.

• High-speed blowing (up to 50 m/min) and long-distance blowing (up to 1,000 m).

• Replaceable design: Allows cable removal and replacement for future upgrades.

• On-demand branching: Enables micro-duct cutting at any point without disrupting existing cables, minimizing manholes and splice points.



■ Performance Comparison of Air-Blown Micro Cables:

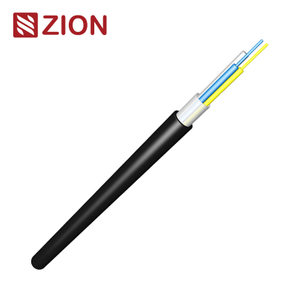

Enhanced Performance Fiber Unit (EPFU):

• Features include small size, lightweight, excellent bending performance, and suitability for indoor installations.

• Blowing performance rated at 3 stars (★★★).

• Primarily used in FTTH (Fiber to the Home) applications.



Uni-tube Air-Blown Micro Cable (GCYFXTY):

• Compact design with lightweight construction, superior tensile strength, and crush resistance.

• Blowing performance rated at 4 stars (★★★★).

• Ideal for power systems and lighting-prone areas.

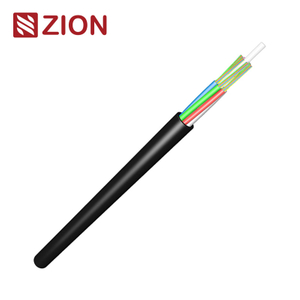

Stranded Loose Tube Air-Blown Micro Cable (GCYFY):

• High fiber density and duct utilization, significantly reducing initial investment costs.

• Blowing performance rated at 5 stars (★★★★★).

• Suitable for FTTH, metropolitan networks, and access networks.



■ Cross Section:

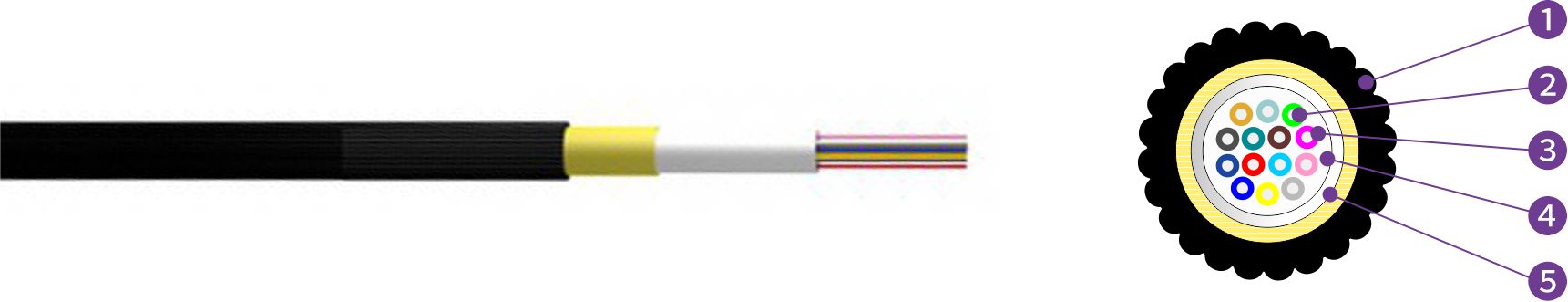

1.  PE Sheath with Groove   2.  Aramid Yarn   3.  Fibress   4.  Tube Filling Compound  5. Loose Tube

■ Key Parameters:

• GCYFXTY-02 G657A2: 2 fibers, diameter 2.3 ± 0.05 mm, weight 4.0 ± 0.1 kg/km, tensile strength 0.15G/0.5G (long/short term), crush resistance 150/450 N/100mm (long/short term).

• GCYFXTY-04 G657A2: 4 fibers, identical dimensions and mechanical properties as GCYFXTY-02.

• GCYFXTY-06 G657A2: 6 fibers, identical dimensions and mechanical properties as GCYFXTY-02.

• GCYFXTY-08 G657A2: 8 fibers, identical dimensions and mechanical properties as GCYFXTY-02.

• GCYFXTY-12 G657A2: 12 fibers, identical dimensions and mechanical properties as GCYFXTY-02.

• GCYFXTY-24 G657A2: 24 fibers, diameter 2.7 ± 0.05 mm, weight 6.5 ± 0.1 kg/km, tensile and crush resistance matching other models.

Note: "G" denotes the weight of 1 km of optical cable.



■ Blowing Characteristics:

2/4/6/8 fibers:

• Compatible with 5.0/3.5 mm ducts.

• Requires blowing pressure of 8 bar (for 500 m) or 10 bar (for 1,000 m).

• Blowing time ranges from 15 to 30 minutes.

12 fibers:

• Compatible with 5.0/3.5 mm ducts.

• Requires blowing pressure of 8 bar (for 500 m) or 10 bar (for 800 m).

• Blowing time ranges from 15 to 30 minutes.



■ Environmental & Application Details:

Temperature Tolerance: Transport/storage at -20°C to +70°C.

■ Applications:

FTTH Networks: Deployed as drop cables for connecting distribution points to end-users.

Backbone/Metropolitan Networks: Optimized for high-efficiency air-blown installations.

Delivery Length: Standard 2,000 m; custom lengths available upon request.
