GDFJAH APL Armored LSZH Sheath Hybrid Optical Fiber sub-unit and Electrical Cable

GDFJAH                                                                                              Hybrid Optical Fiber sub-unit and Electrical Cable APL Armored LSZH Sheath for Distributed Base Station

Introduction:

Tigh buffer fibers are surrouded with a layer of aramid yarns as the strength member.A LSZH inner sheath is extruded on the tight buffered fiber to form an optical sub unit.Then optical sub unit and copper wires are stranded around a non metallic central strength member to form a cable core.The core is armored with laminated aluminum tape.Finally,A LSZH outer sheath is extruded,Other sheath material are available on request.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Optical and electrical hybrid design,solving the problem of power supply and signal transmission
● Providing manageability of power and reducing coordination and maintenance of power supply
● Reduing procurement costs and saving construction costs
● Mainly  applied to local fibre remote for short distance at wireless base stations
● Applicable to Duct aerial installation

Product Series:

1

Hybrid Optical and Electrical Cable
Applied in Access Network

GDTC8S

Self-supporting Aerial PSP

GDTA53

Buired Installation

GDTA,GDTS

Duct or Aerial Installation

2

Hybrid Optical Cable
Applied in Wireless RRU

GDFJAH

 Hybrid Optical Fiber Electrical  APL LSZH

GDFJAHP

 Hybrid Optical Fiber Electrical  APL LSZH

GJYFJH

Sub-unit Aramid yarn LSZH Sheath

GJYWFJH

TBF Aramid LSZH Sheath

GJYXFH

 Multi-core Aramid Yarns Double Sheath

GDFJH

Hybrid Optical and Electrical steel hose

Cross Section:

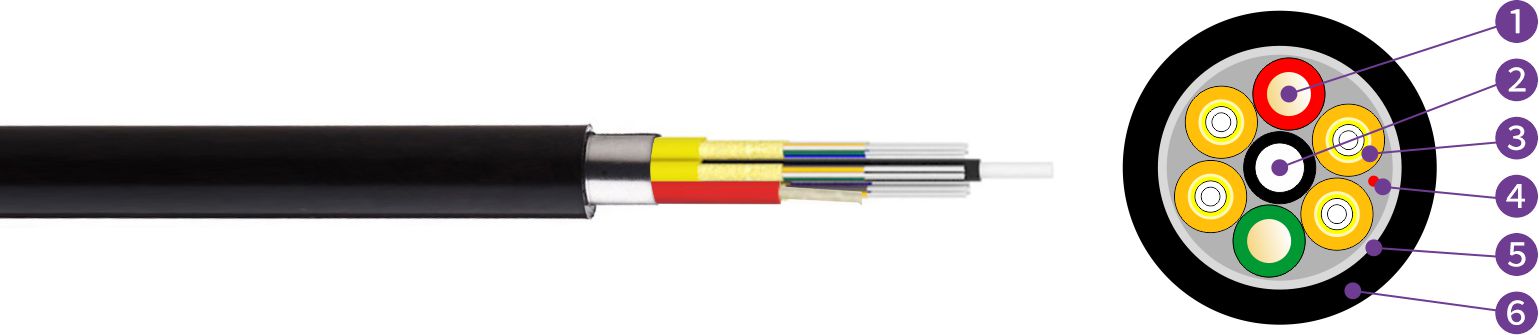

1,Copper Wire  2,Strength Member  3,Optical Sub-unit  4,Ripcord  5,APL  6,LSZH Sheath

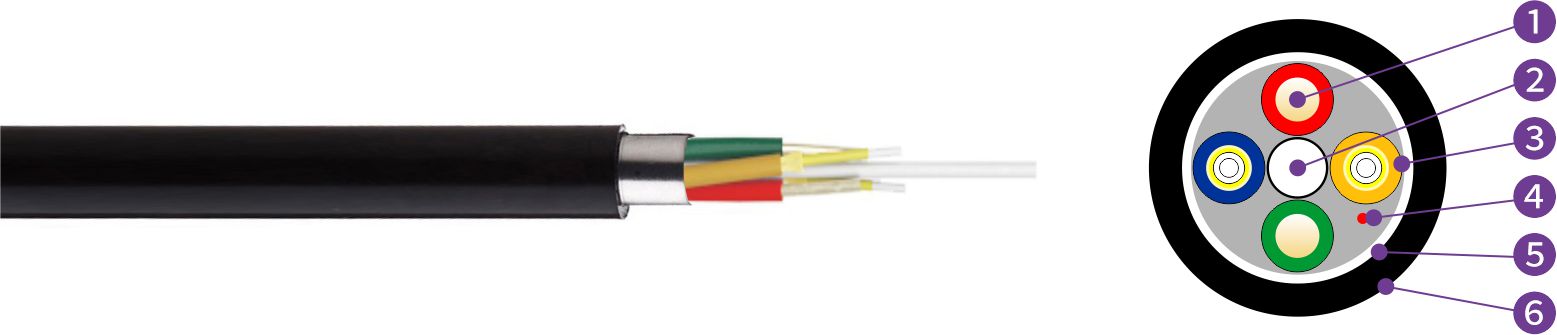

1,Copper Wire  2,Strength Member  3,Optical Sub-unit  4,Ripcord  5,APL  6,LSZH Sheath

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Structure

GDFJAH-2Xn+2×0.75

7.5

80

200/400

500/1000

Structure I

GDFJAH-2Xn+2×1.0

8

88

200/400

500/1000

Structure I

GDFJAH-2Xn+2×1.5

9.6

105

200/400

500/1000

Structure I

GDFJAH-2Xn+2×2.0

10.3

119

200/400

500/1000

Structure I

GDFJAH-2Xn+2×4.0

11.5

159

200/400

500/1000

Structure I

GDFJAH-6Xn+2×0.5

10.5

110

200/400

500/1000

Structure II

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
