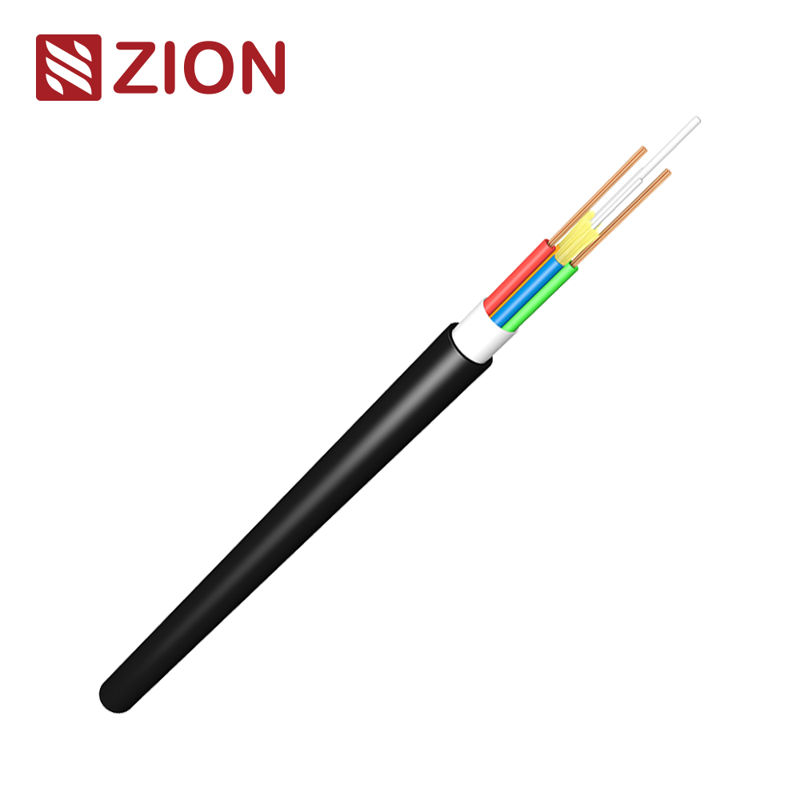

GDFJH Hybrid Optical and Electrical with steel hose Fiber Optic Cable

GDFJH

Hybrid Optical and Electrical with steel hose Fiber Optic Cable

for Distributed Base Station

■ Introduction:

Tight bufferd fibers are surrouded with a helical steel hose and a layer of aramid yarns as the strength member.Then A LSZH sheath is extruded to form an optical sub unit.Optical sub units and copper wires are stranded around a non metallic central strength member to form a cable core,The core is wrapped with water blocking tape.Finally,a LSZH outer sheath is extruded,Other sheath materials are available on request.

■ Features:

• Accurate process control ensuring good mechanical and temperature performances


• Stainless steel hose armor providing better protection to fibers


• All dry hybrid structure,supporting bulk data transmission and power supply for RRU devices


• Mainly  applied to local fibre remote for short distance at wireless base stations

■ Product Series:

• Hybrid Optical and Electrical Cables for Access Networks:

· GDTC8S:

o Type: Self-supporting aerial cable with PSP (Plastic-Supported Steel Tape)

o Application: Suitable for aerial installation in access networks, providing both optical and electrical capabilities with enhanced mechanical strength.

· GDTA53:

o Type: Buried installation cable

o Application: Designed for buried installation, ensuring robust protection for both optical and electrical components, ideal for underground or direct burial use.

· GDTA, GDTS:

o Type: Duct or aerial installation

o Application: These cables are optimized for both ducted and aerial installations, offering flexibility for deployment in different environments.

• Hybrid Optical Cables for Wireless RRU (Remote Radio Unit):

GDFJAH:

o Type: Hybrid optical fiber and electrical cable with APL (Aerial Plastic-Lined) LSZH (Low Smoke Zero Halogen) sheath

o Application: Designed for wireless RRU systems, this cable combines optical fibers for high-speed data transmission with electrical conductors for power delivery, with an LSZH sheath for safety.

GDFJAHP:

o Type: Hybrid optical fiber and electrical cable with APL LSZH sheath

o Application: Similar to GDFJAH, but this version may have additional or slightly different mechanical properties tailored for specific RRU installations.

GJYFJH:

o Type: Sub-unit cable with Aramid yarn and LSZH sheath

o Application: This cable provides high tensile strength and durability, making it suitable for installations where safety and reliability are key, with a focus on protecting the fibers and electrical components.

GJYWFJH:

o Type: TBF (Toughened Fiber) cable with Aramid yarn and LSZH sheath

o Application: Similar to GJYFJH, but offering additional toughness, providing further protection for fiber optic cables in harsh environments.

GJYXFH:

o Type: Multi-core cable with Aramid yarn and double sheath

o Application: Designed for high-density fiber optic networks, this cable uses double sheaths for enhanced protection against environmental factors.

• Steel Hose Hybrid Optical and Electrical Cable:

· GDFJH:

o Type: Hybrid optical and electrical cable with steel hose

o Application: This cable features a steel hose for added mechanical protection, making it highly durable and suitable for environments with high mechanical stress.

■ Cross Section:

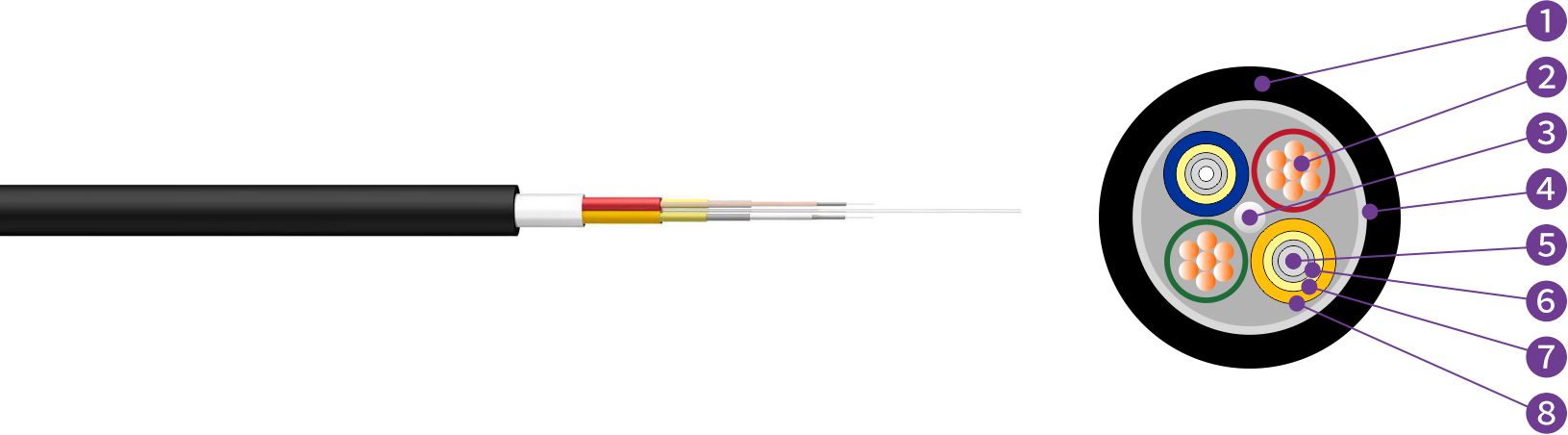

1.Outer Sheath  2.Copper Wire  3.Strength Member  4.Water Blocking Tape  5.Tight Buffered Fibre  6.Helical Steel Hose  7.Aramid Yarn  8.Sub-unit Sheath

■ Technical Characteristics:

• Diameter: The outer diameter is 9.5 mm, with the optical unit having a diameter of 3.0 mm.

• Weight: The cable weighs approximately 110 kg/km.

• Tensile Strength:

· Short-term: 400 N

· Long-term: 800 N

• Crush Resistance:

· Short-term: 500 N/100mm

· Long-term: 1000 N/100mm

• Bending Radius:

· Dynamic: 20 times the outer diameter (20D)

· Static: 10 times the outer diameter (10D)

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃

■ Delivery Length:

Standard length:2000m;Other length availabe
