GDTA53 Double Sheath APL PSP Armored Hybrid Optical Fiber and Electrical Cable

GDTA53                                                                                              Hybrid Optical Fiber and Electrical Cable Double Sheath APL PSP Armored for Distributed Base Station

Introduction:

Single-mode or multimode fibers are housed in loose tubes that are made of high modulus plastic and filled with tube filiing compund,In the center of cable is a metallic strength member,The tubes and copper wires are stranded around the central strength member to form a cable core.The core is filled with cable filling compound and armored with Aluminum Tape,then an PE inner sheath is extruded and armored Corrugated steel tapes.Finally, PE Outer sheath is extruded.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Optical and electrical hybrid design,solving the problem of power supply and signal transmission
● Providing manageability of power and reducing coordination and maintenance of power supply
● Reduing procurement costs and saving construction costs
● Mainly  used to connect BBU,RRU in DC remote power supply system for distributed base station
● Applicable to Duct aerial installation

Product Series:

1

Hybrid Optical and Electrical Cable
Applied in Access Network

GDTC8S

Self-supporting Aerial PSP

GDTA53

Buired Installation

GDTA,GDTS

Duct or Aerial Installation

2

Hybrid Optical Cable
Applied in Wireless RRU

GDFJAH

 Hybrid Optical Fiber Electrical  APL LSZH

GDFJAHP

 Hybrid Optical Fiber Electrical  APL LSZH

GJYFJH

Sub-unit Aramid yarn LSZH Sheath

GJYWFJH

TBF Aramid LSZH Sheath

GJYXFH

 Multi-core Aramid Yarns Double Sheath

GDFJH

Hybrid Optical and Electrical steel hose

Cross Section:

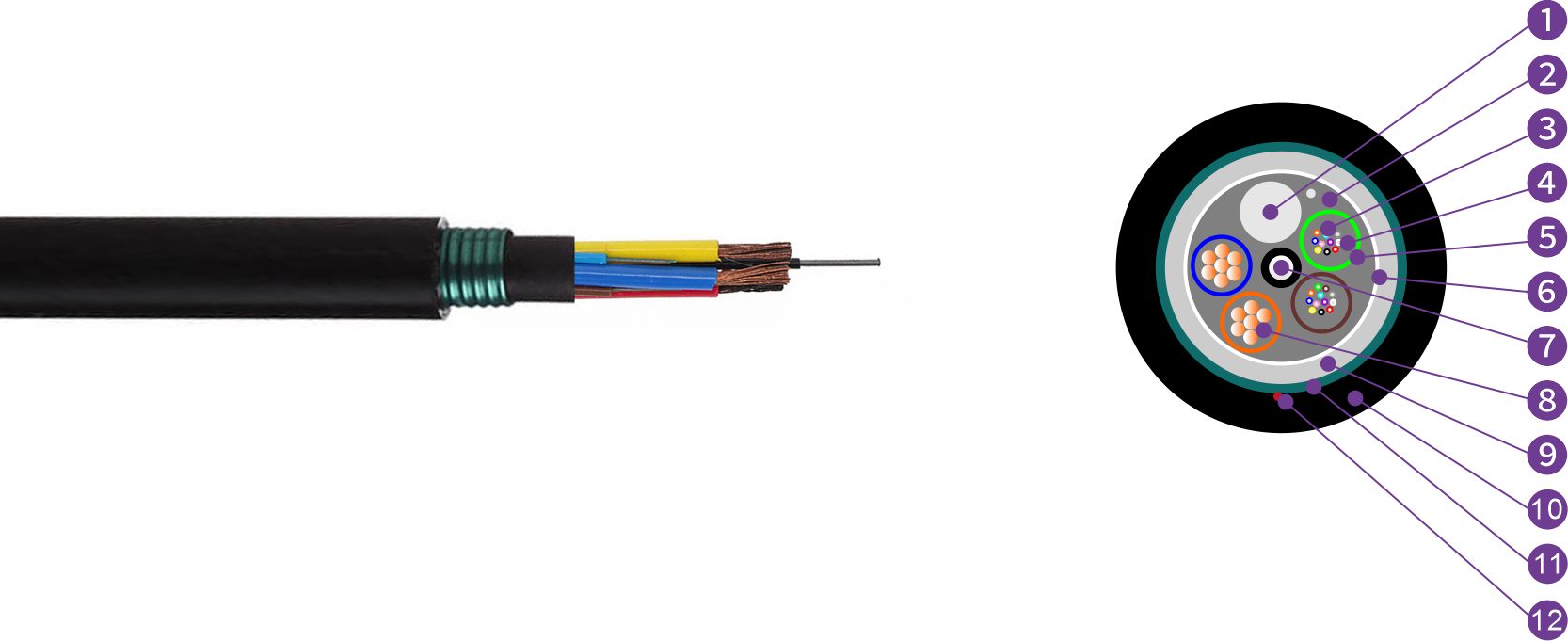

1,Filler  2,Cable Filling Compound  3,Fibre  4,Tube Filling Compound  5,Loose Tube  6,APL  7,Strength Member  8,Copper Wire                9,PE Inner Sheath  10,PE Outer Sheath  11,PSP 12,Ripcord

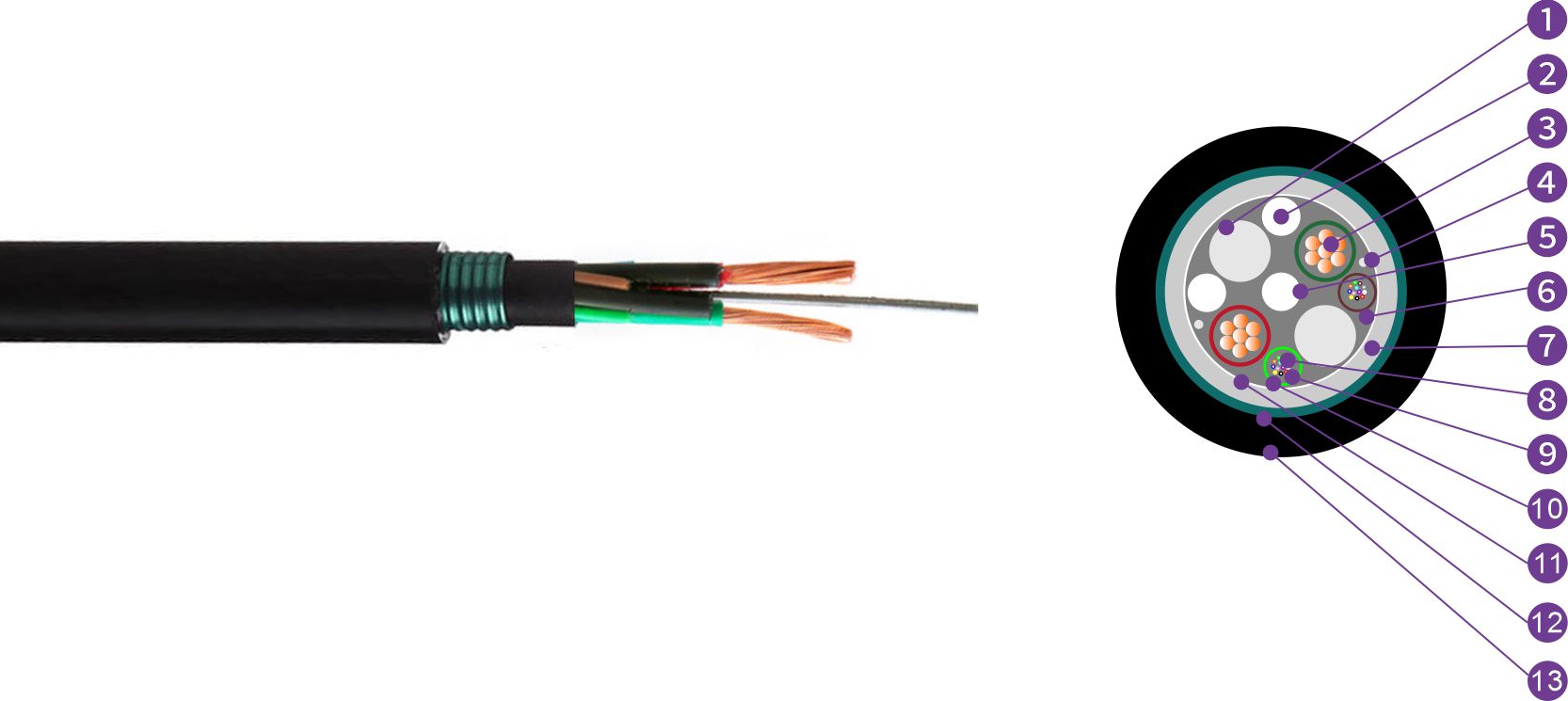

1,Filler  2,Filler  3,Copper Wire  4,Ripcord  5,Strength Member  6,Cable Filling Compound  7,PE Inner Sheath  8,Fibre                      9,Tube Filling Compound  10,Loose Tube  11,APL  12,PSP  13,PE Outer Sheath

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Structure

GDTA53-02-24Xn+2×1.5

15.1

290

1000/3000

1000/3000

Structure I

GDTA53-02-24Xn+2×2.5

15.5

312

1000/3000

1000/3000

Structure I

GDTA53-02-24Xn+2×4.0

18.2

358

1000/3000

1000/3000

Structure II

GDTA53-02-24Xn+2×5.0

18.6

390

1000/3000

1000/3000

Structure II

GDTA53-02-24Xn+2×6.0

19.9

435

1000/3000

1000/3000

Structure II

GDTA53-02-24Xn+2×8.0

20.8

478

1000/3000

1000/3000

Structure II

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
