GJYFJH Sub-unit Aramid yarn LSZH Sheath Fiber Optic Cable

GJYFJH

Sub-unit Aramid yarn LSZH Sheath Fiber Optic Cable for

Distributed Base Station

■ Introduction:

Tigh buffer fibers are surrouded with a layer of aramid yarns as the strength member.A LSZH inner sheath is extruded on the tight buffered fiber to form an optical sub unit.Then optical sub unit and fillers are stranded into a cable core.Finally,A LSZH outer sheath is extruded,Other sheath material are available on request.

■ Features:

• Accurate process control ensuring good mechanical and temperature performances


• Excellent crush resistance and flexibility


• Small size and light weight,supporting bulk data transmission


• Reduing procurement costs and saving construction costs


• Mainly applied to horizontal and vertical cabling wireless base station,applicable to FTTA

■ Product Series:

Hybrid Optical and Electrical Cables for Access Networks

• GDTC8S: Self-supporting Aerial PSP (Pre-Stretched Pole)

• GDTA53: For Buried Installation

• GDTA, GDTS: For Duct or Aerial Installation

Hybrid Optical Cables for Wireless Remote Radio Units (RRU)

• GDFJAH: Hybrid Optical Fiber Electrical, APL LSZH (Low Smoke Zero Halogen)

• GDFJAHP: Hybrid Optical Fiber Electrical, APL LSZH (with additional features, likely for higher performance or specific environmental conditions)

• GJYFJH: Sub-unit Aramid Yarn LSZH Sheath (providing robust mechanical protection)

• GJYWFJH: TBF Aramid LSZH Sheath (potentially a more advanced version with additional materials for impact protection)

• GJYXFH: Multi-core Aramid Yarns Double Sheath (enhanced durability through multi-core yarns and double sheathing)

• GDFJH: Hybrid Optical and Electrical Steel Hose (combining optical and electrical cables within a strong steel hose for high-performance needs)

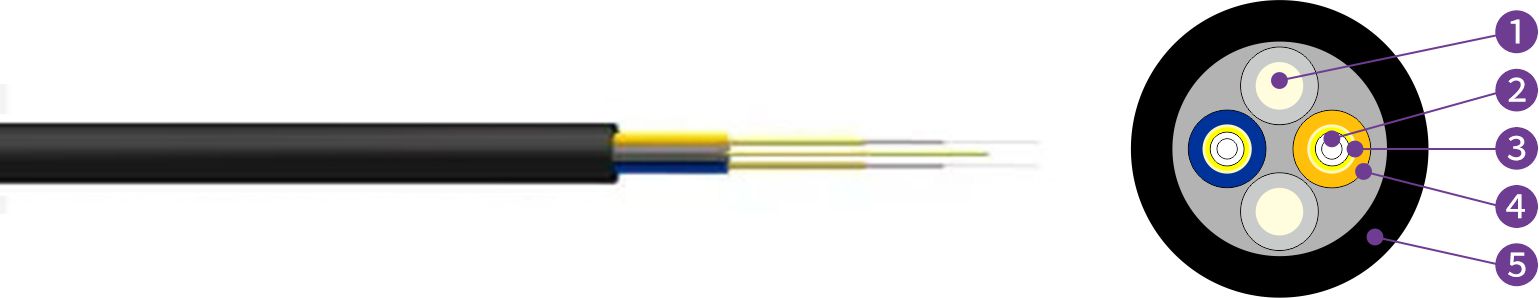

■ Cross Section:

1. Strength Filler  2. Tight Buffered Fibre  3. Aramid Yarn   4. Sub-unit Sheath  5. Outer Sheath

■ Technical Characteristics:

Diameter: 7 mm

Weight: 42.3 kg/km

Tensile Strength (Long/Short Term): 200 N / 400 N

Crush Resistance (Long/Short Term): 500 N / 1000 N per 100 mm

Bending Radius (Dynamic/Static): 20D / 10D

Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

■ Delivery Length:

 Standard length:1000m;Other length availabe
