GJYXFH Multi-core Fibers Aramid Yarns Double Sheath Optic Cable

GJYXFH                                                                                            Multi-core Fibers Aramid Yarns Double Sheath Optic Cable for Distributed Base Station

Introduction:

Optical fibers are surrouded with a layer of aramid yarns as the strength member.Then A LSZH sheath is extruded and another layer of aramid yarns is places outside the inner sheath, Finally a LSZH outer sheath is extruded.The strength  members can be made of other high strength yarns and Other sheath material are available on request.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Excellent crush resistance and flexibility
● Small size and light weight,supporting bulk data transmission
● Mainly  applied to horizontal and vertical cabling wireless base station,applicable to FTTA

Product Series:

1

Hybrid Optical and Electrical Cable
Applied in Access Network

GDTC8S

Self-supporting Aerial PSP

GDTA53

Buired Installation

GDTA,GDTS

Duct or Aerial Installation

2

Hybrid Optical Cable
Applied in Wireless RRU

GDFJAH

 Hybrid Optical Fiber Electrical  APL LSZH

GDFJAHP

 Hybrid Optical Fiber Electrical  APL LSZH

GJYFJH

Sub-unit Aramid yarn LSZH Sheath

GJYWFJH

TBF Aramid LSZH Sheath

GJYXFH

 Multi-core Aramid Yarns Double Sheath

GDFJH

Hybrid Optical and Electrical steel hose

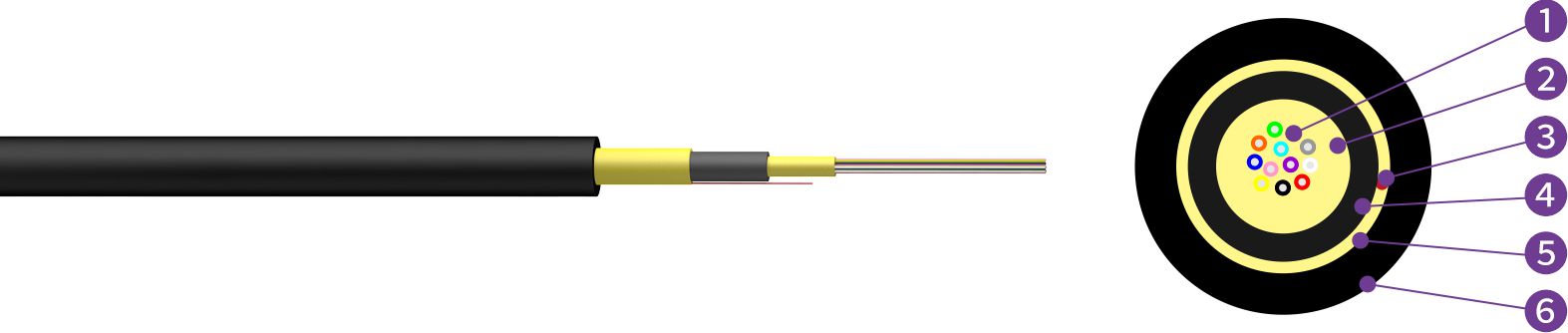

Cross Section:

1,Fiber  2,Aramid Yarn   3,Ripcord  4,InnerSheath  5,Aramid Yarn  6,Outer Sheath

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending radius
Dynamic/static
mm

GJYXFH-2Xn

7.0(2.8mm Inner)

38.3

200/400

500/1000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
