HELLOSIGNAL 150/150 CY

HELLOSIGNAL 150 150 CY

HELLOSIGNAL 150 150 CY.

Application

HELLOSIGNAL® 150 is an internationally approved, 600V multi-conductor cable.
It has UL & CSA AWM and
coolant, and chemical resistance. HELLOSIGNAL® 150 CY is a shielded version
with an inner PVC jacket and tinned copper braid shield.

Recommended Applications

Control and power on industrial machinery; food & beverage; processing & pharmaceutical equipment; machinery for export to Europe

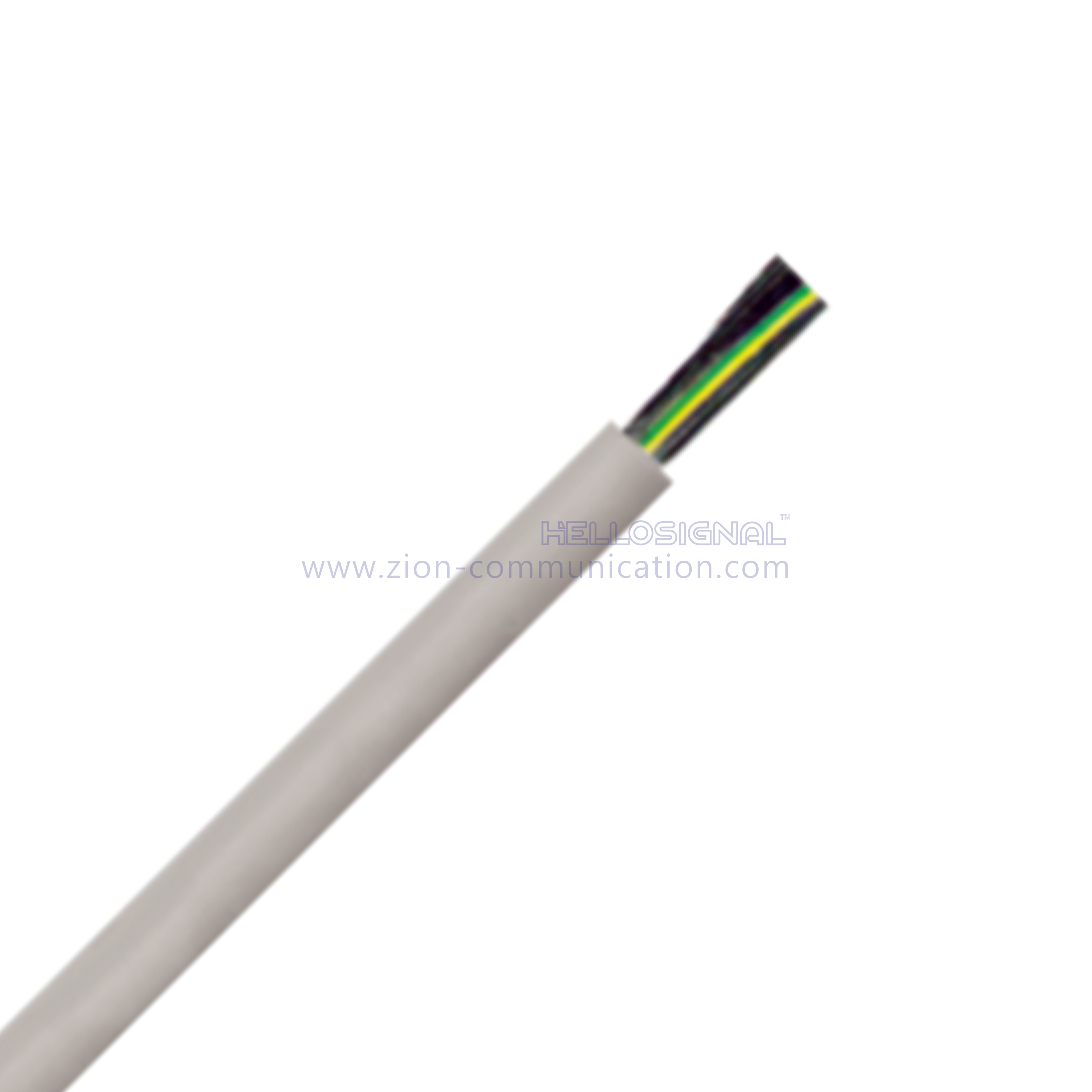

Unshielded Construction

Conductors: Finely stranded bare copper

Insulation: PVC

Jacket: Specially formulated PVC; gray

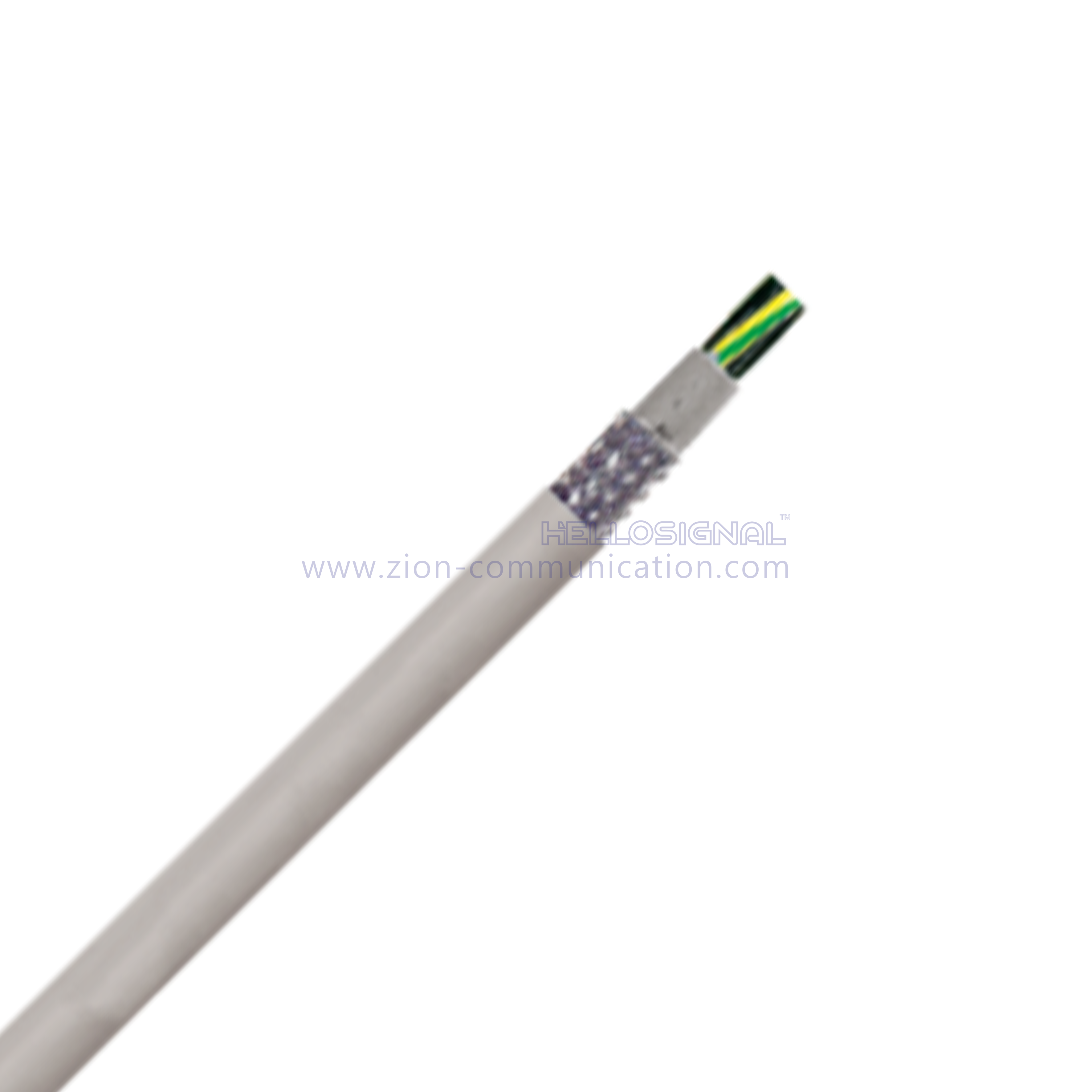

Shielded Construction

Conductors: Finely stranded bare copper

Insulation: PVC

Shielding: PVC inner jacket; tinned copper braid (85% coverage)

Jacket: Specially formulated PVC; gray

Application Advantage

• Industrial grade PVC jacket (Oil Res I & II)
• International approvals: UL, CSA,
• Very flexible pressure-extruded jacket for easy installation
• Number-coded conductors for easy identification & wiring

Technical data

 Minimum Bend Radius

for installation :  4 x cable diameter

for shielded    :  6 x cable diameter

 Temperature Range

for stationary use:

UL/CSA:

  40°C to +90°C

  40°C to +70°C

for flexible use:

UL/CSA:

  5°C to +90°C

  5°C to +70°C

Technical data

 Nominal Voltage

UL/CSA:

600V

300/500V

Test Voltage

3000V

Conductor Stranding

Class 5 fine wire

Color Code

B lack with white numbers, plus green/yellow ground

 Approvals

UL:

AWM 2587 & 21098 (Oil)
plus green/yellow ground

Attributes:


UL Oil Res I/II
NFPA 79

NFPA 79

Canada:

CSA AWM I/II A/B FT1

Additional:

< HAR> H05VVC4V5-K (shielded)

CE & RoHS

150 Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

20 AWG (0.50 mm²)

7141200

3

0.244

10

42

7141201

4

0.268

13

46

7141202

5

0.291

17

59

7141203

7

0.354

23

80

7141204

12

0.437

39

133

7141205

18

0.559

58

220

7141206

25

0.630

81

256

19 AWG (0.75 mm²)

7141210

3

0.264

15

51

7141211

4

0.283

20

56

7141212

5

0.319

25

76

7141213

7

0.390

34

97

7141214

12

0.472

58

165

7141215

18

0.567

87

7141216

25

0.673

121

313

18 AWG (1.00 mm²)

7141220

3

0.276

20

53

7141221

4

0.307

26

67

7141222

5

0.339

33

89

7141223

7

0.409

46

114

7141224

12

0.504

78

192

7141225

18

0.594

117

272

7141226

25

0.709

162

383

150 Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

16 AWG (1.50 mm²)

7141230

3

0.319

29

74

7141231

4

0.350

39

97

7141232

5

0.394

49

113

7141233

7

0.484

68

151

7141234

12

0.594

117

243

7141235

18

0.701

175

348

7141236

25

0.846

242

491

14 AWG (2.50 mm²)

7141240

3

0.390

49

114

7141241

4

0.421

65

141

7141242

5

0.476

81

173

7141243

7

0.571

113

229

7141244

12

0.697

194

390

7141245

18

0.843

291

571

7141246

25

1.016

404

784

150 CY Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

18 AWG (1.00 mm²)

7141250

3

0.374

52

97

7141251

4

0.398

54

121

7141252

5

0.437

64

136

7141253

7

0.516

80

183

16 AWG (1.50 mm²)

7141255

3

0.413

57

107

7141256

4

0.445

64

142

7141257

5

0.496

82

162

7141258

7

0.587

97

205

14 AWG (2.50 mm²)

7141260

3

0.465

81

164

7141261

4

0.516

115

198

7141262

5

0.575

138

245

7141263

7

0.681

162

322

Order Informations

Marking

HELLOSIGNAL 150/150 CY XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
