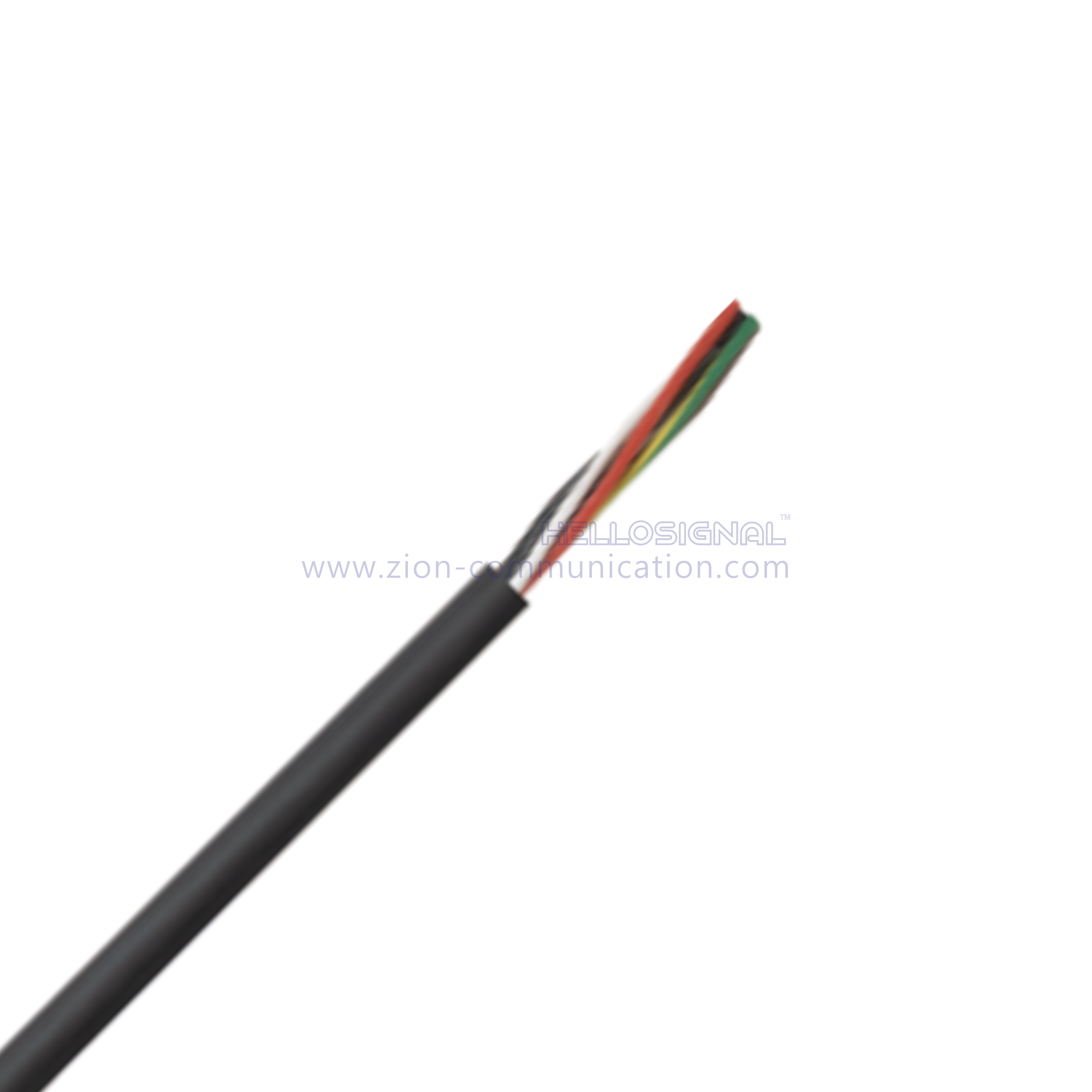

HELLOSIGNAL POWER MULTI

HELLOSIGNAL POWER MULTI

Application

KING-TONE® POWER MULTI is a multi-purpose power cable with cordage,
tray, and NEC Class 1 Div. 1 (flexible use only) approvals.

Recommended Applications

Power cord for equipment; paint booths; appliances; factory installations;
any power hook-up in the plant

Unshielded Construction

Conductors:  Finely stranded tinned copper

Insulation: TPE

Jacket: Polyurethane; yellow

Shielded Construction

Conductors: Finely stranded bare copper

Insulation: Specially formulated PVC

Jacket: Specially formulated thermoplastic polymer; black

Application Advantage

•  UL & CSA STOOW cordage approval
•  UL TC-ER & CSA TC approval
•  One cable does the job of three
• Durable jacket for long performance life

Technical data

 Minimum Bend Radius

for installation :  4 x cable diameter

for shielded    :  8 x cable diameter

 Temperature Range

UL/CSA TC    : -25°C to +90°C

for flexible use    :  - 25°C to +105°C

for stationary use : -40°C to +105°C


Technical data

 Nominal Voltage

600V

Test Voltage

2000V

Conductor Stranding

Class 5 fine wire*

*  18 AWG meets only the Class 5 cross section and DC resistance










Technical data

    Color Code

3c: Black, white, green/yellow

4c:Black, white, red, green/yellow

 5c:Black, white, red, brown,
      green/yellow

7c & higher:Black with white numbers,

                    plus green/yellow ground

 Approvals

UL:




TC-ER per UL 1277
UL Oil Res I/II

STOOW per UL 62

Attributes:

UL Oil Res I/II

75°C Wet; 90°C Dry

Sunlight Resistant

Direct Burial

NFPA 79

                    NEC

Class 1 Division 1 & 2 per

NEC Article 501

Canada:

c(UL) CIC/TC FT4

c(UL) STOOW

CSA AWM I/II A/B FT4

Additional:

CE & RoHS










Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)



18 AWG (1.00 mm²)

7142000

3

0.371

20

62



7142001

4

0.399

26

71


7142002

5

0.471

33

82



16 AWG (1.50 mm²)

7142005

3

0.399

29

75



7142006

4

0.430

39

88


7142007

5

0.507

49

104


7142008

7

0.544

68

132



7142009

12

0.719

117

225


7142010

18

0.824

175

295




7142011

25

0.966

242

401




14 AWG (2.50 mm²)

7142015

3

0.541

49

93



7142016

4

0.584

65

112


7142017

5

0.663

81

132


12 AWG (4.00 mm²)

7142020

3

0.631

78

126




7142021

4

0.681

104

156




7142022

5

0.739

129

192




10 AWG (6.00 mm²)

7142025

3

0.676

117

229




7142026

4

0.732

155

271




8 AWG (10.00 mm²)

7142030

3

0.840

194

430




7142031

4

0.943

258

566




Order Informations

Marking

HELLOSIGNAL POWER MULTI XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
