HELLOSIGNAL CLASSIC 110/110 CY

HELLOSIGNAL CLASSIC 110 110 CY HELLOSIGNAL CLASSIC 110 110 CY......

Application

HELLOSIGNAL® CLASSIC 110 is a number-coded multi-conductor power and control cable
for use in all electrical equipment in dry, damp, or wet conditions. It is a European-style cable,
conforms to CE, and is available unshielded or shielded.

Recommended Applications

Control systems; assembly lines; control panels; data processing equipment; European machinery

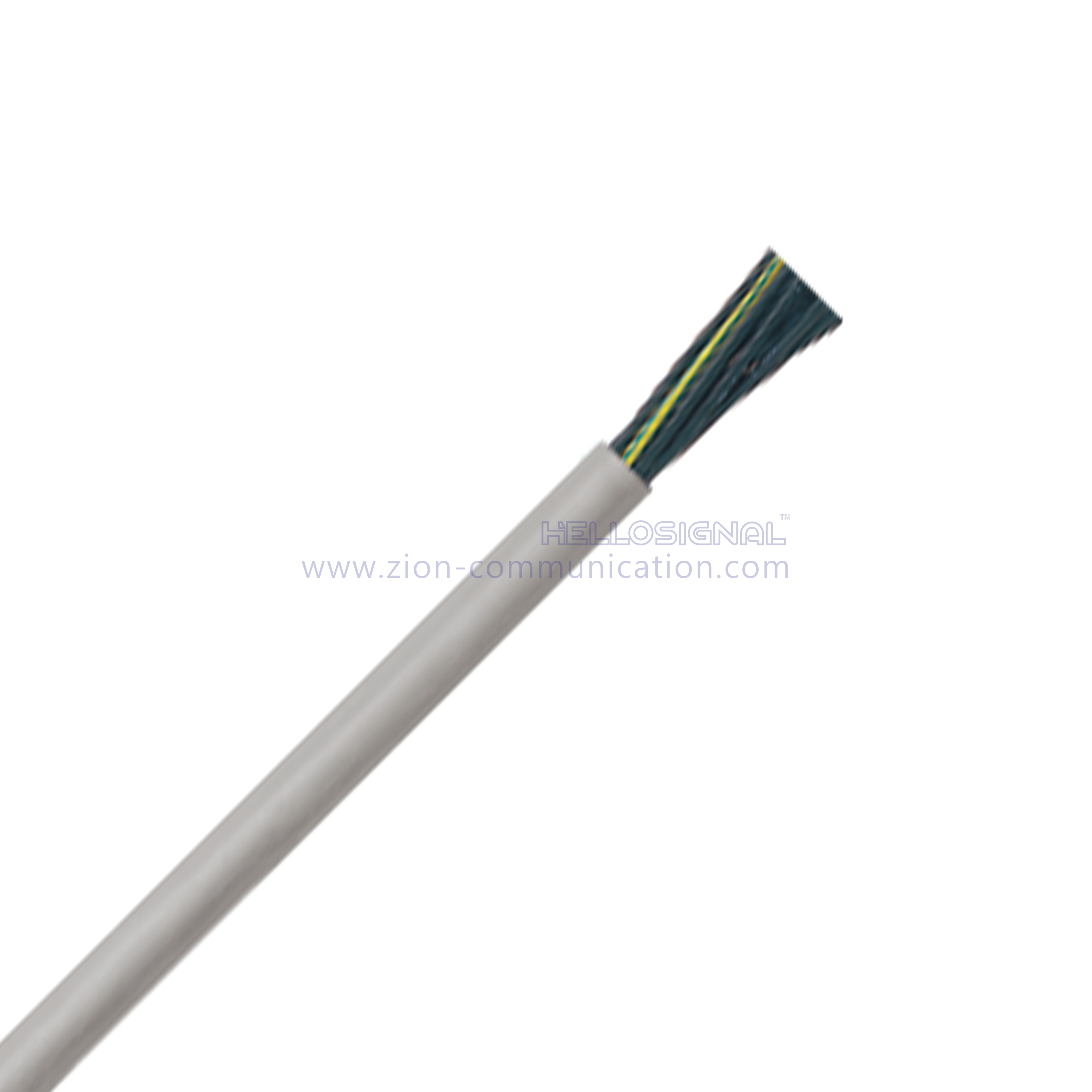

Unshielded Construction

Conductors: Finely stranded bare copper

Insulation: PVC

Jacket: PVC; gray

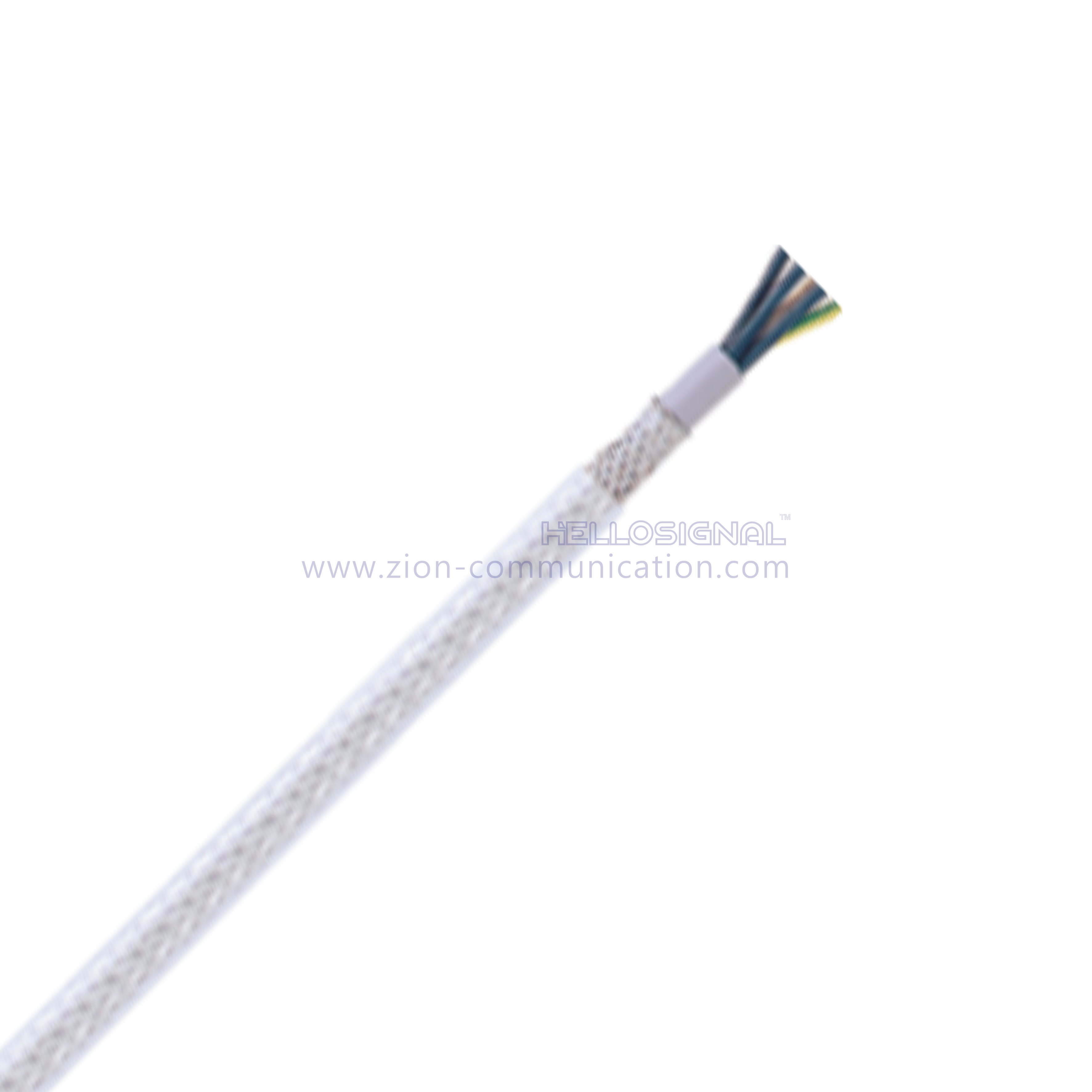

Shielded Construction

Conductors: Finely stranded bare copper

Insulation: PVC

Shielding: Gray PVC inner jacket; tinned copper braid (85% coverage)

Jacket: PVC; transparent

Application Advantage

•  Common European control cable
•  Conforms to CE standards
•  Available with inner jacket and tinned copper braid for EMI & RFI protection
•  Pressure-extruded jacket for improved flexibility

Technical data

Minimum Bend Radius

for installation :  4 x cable diameter

shielded    :  6 x cable diameter

Temperature Range

for flexible use    : -5°C to +70°C


for stationary use    : -40°C to +80°C

Technical data

     Nominal Voltage

300/500V

Test Voltage

4000V

Conductor Stranding

Class 5 fine wire

Color Code

Black with white numbers,

plus green/yellow ground

Approvals

Based on VDE 7030

CE & RoHS

110 Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

20 AWG (0.50 mm²)

7142400

2

0.189

6

24

7142401

3

0.201

10

28

7142402

4

0.224

13

36

7142403

5

0.244

16

42

7142404

7

0.264

23

54

7142405

12

0.350

39

88

7142406

18

0.413

58

126

7142407

25

0.488

81

175

7142408

35

0.571

113

239

7142409

52

0.681

168

347

7142410

65

0.772

210

433

7142411

80

0.831

258

524

7142412

100

0.929

323

655

18 AWG (1.00 mm²)

7142420

2

0.244

13

36

7142421

3

0.236

19

44

7142422

4

0.256

26

53

7142423

5

0.280

32

63

7142424

7

0.315

45

85

7142425

12

0.413

77

138

7142426

18

0.500

116

215

7142427

25

0.579

161

274

7142428

34

0.673

219

370

7142429

41

0.740

265

444

7142430

50

0.811

323

536

7142431

65

0.929

419

694

7142432

80

0.996

516

841

7142433

100

1.114

645

1048

110 Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

16 AWG (1.50 mm²)

7142440

2

0.248

19

46

7142441

3

0.264

29

56

7142442

4

0.283

39

70

7142443

5

0.319

48

86

7142444

7

0.350

68

112

7142445

12

0.472

116

188

7142446

18

0.567

174

274

7142447

25

0.665

242

376

7142448

34

0.764

329

501

7142449

41

0.839

397

602

7142450

50

0.925

484

732

7142451

65

1.051

629

940

14 AWG (2.50 mm²)

7142460

2

0.295

32

68

7142461

3

0.319

48

89

7142462

4

0.350

65

110

7142463

5

0.394

81

134

7142464

7

0.437

113

179

7142465

12

0.583

194

299

7142466

18

0.701

290

436

7142467

25

0.819

403

598

7142468

34

0.961

548

812

7142469

50

1.157

806

1179

12 AWG (4.00 mm²)

7142470

3

0.390

77

135

7142471

4

0.425

103

167

7142472

5

0.476

129

198

7142473

7

0.528

181

274

10 AWG (6.00 mm²)

7142475

3

0.461

116

194

7142476

4

0.512

155

245

7142477

5

0.571

194

300

7142478

7

0.630

281

403

110 Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

8 AWG (10 mm²)

7142479

4

0.638

258

397

6 AWG (16 mm²)

7142480

4

0.740

413

731

4 AWG (25 mm²)

7142481

4

0.925

645

1063

2AWG (35 mm²)

7142482

4

1.039

903

1415

7142483

5

1.165

1129

1771

110 CY Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

20 AWG (0.50 mm²)

7142500

3

0.287

31

56

7142501

4

0.311

37

67

7142502

5

0.331

44

75

7142503

7

0.35

54

89

7142504

12

0.445

93

136

7142505

18

0.524

105

194

7142506

25

0.598

168

254

18 AWG (1.00 mm²)

7142510

3

0.323

44

75

7142511

4

0.343

52

87

7142512

5

0.374

60

103

7142513

7

0.402

76

124

7142514

12

0.524

126

206

7142515

18

0.61

192

288

7142516

25

0.686

261

366

16 AWG (1.50 mm²)

7142520

2

0.335

44

79

7142521

3

0.35

56

91

7142522

4

0.378

67

110

7142523

5

0.406

84

126

7142524

7

0.445

100

156

7142525

12

0.583

188

264

7142526

18

0.667

261

362

7142527

25

0.791

360

501

110 CY Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

14 AWG (2.50 mm²)

7142530

3

0.406

98

129

7142531

4

0.445

112

157

7142532

5

0.496

134

190

7142533

7

0.547

194

249

12 AWG (4 mm²)

7142535

4

0.528

159

233

7142536

5

0.579

188

278

10 AWG (6 mm²)

7142537

4

0.622

214

326

8 AWG (10 mm²)

7142538

4

0.748

375

494

6 AWG (16 mm²)

7142539

4

0.874

540

934

Order Informations

Marking

HELLOSIGNAL CLASSIC 110/110 CY XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
