HELLOSIGNAL CLASSIC 130 H BK135 CH BK

HELLOSIGNAL CLASSIC 130 H BK135 CH BK

 HELLOSIGNAL CLASSIC 130 H BK135 CH BK..

Application

HELLOSIGNAL® CLASSIC 130 H BK/135 CH BK is a low smoke, zero halogen
(LSZH) multi-conductor power and control cable. It is for use in all electrical equipment in dry
or damp conditions. It is UV and weather resistant and comes in shielded and unshielded versions.

Recommended Applications

Public buildings; airports; railway stations; amusement rides; areas where human safety is a concern

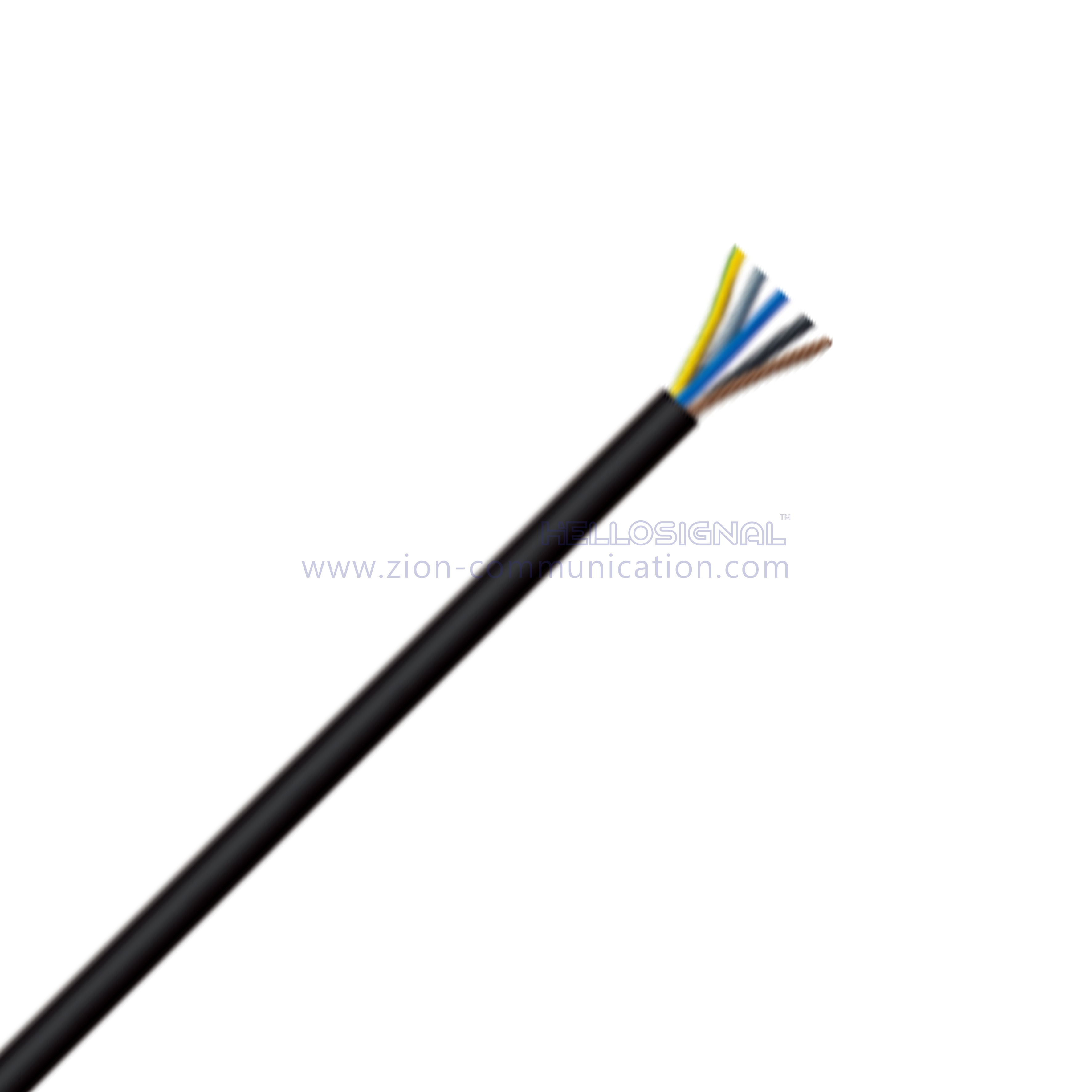

Unshielded Construction

Conductors: Finely stranded bare copper

Insulation: Halogen-free

Jacket: Halogen-free; black

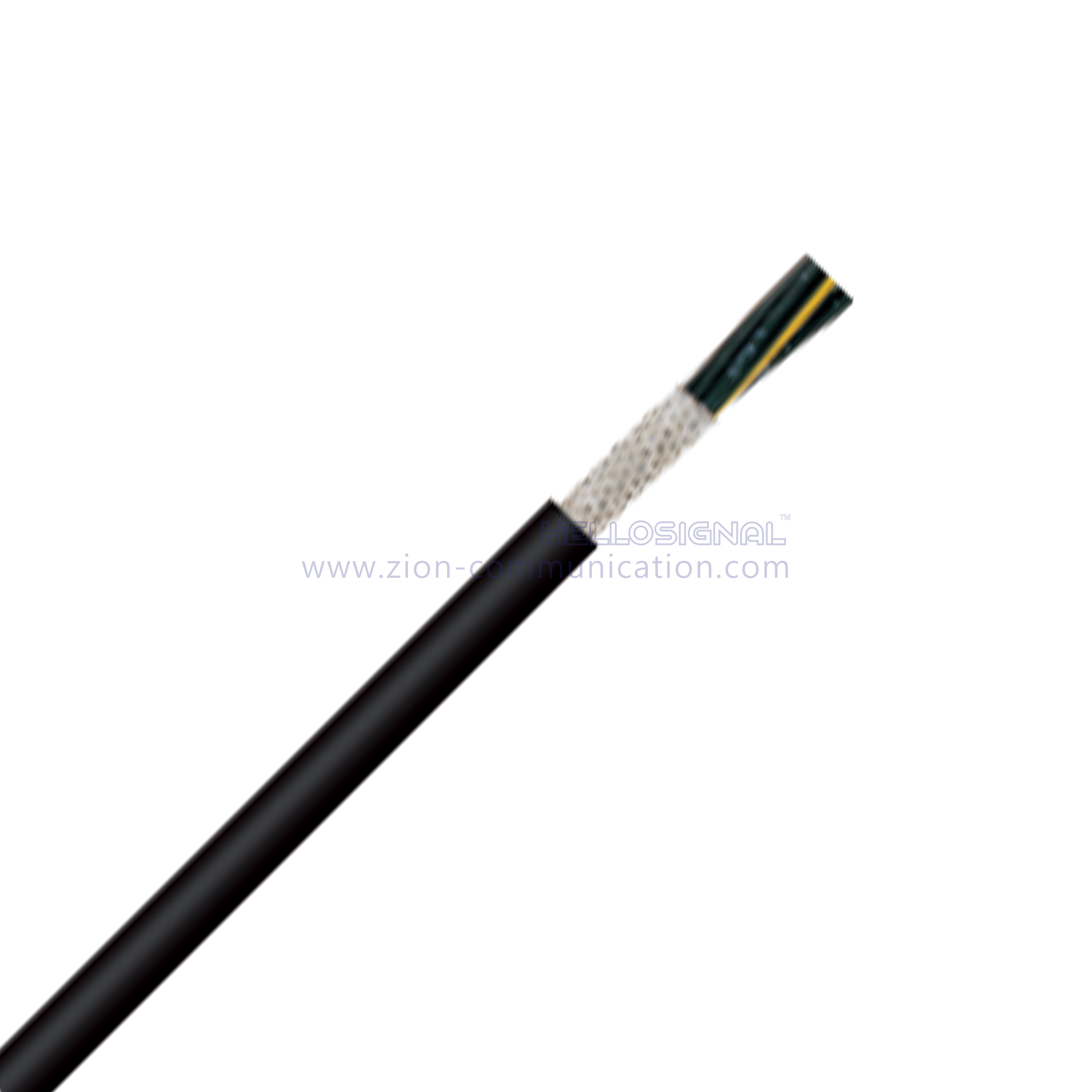

Shielded  Construction

Conductors: Finely stranded bare copper

Insulation: Halogen-free

Shielding: Foil tape; tinned copper braid (85% coverage)

Jacket: Halogen-free; black

Application Advantage

• Low smoke, zero halogen (LSZH)
• Flame retardant
• Highly flexible
• UV-resistant jacket

Technical data

 Minimum Bend Radius

4 x cable diameter

     Temperature Range

for flexible use : 25°C to +70°C (UL: +75°C)





for stationary use : 40°C to +80°C (UL: +75°C)

     Nominal Voltage

1000V

Test Voltage

4000V

Conductor Stranding

Class 5 fine wire

Technical data

Color Code

up to 5c : VDE 0293-308: Chart 6, page 673

6c & higher : Black with white numbers,

Approvals

UL: AWM 21156

Attributes: Sunlight Resistant

                 NFPA 79

Additional: CE & RoHS

                 LS acc. to IEC 61034-2

                 HF acc. to IEC 60754-1

                 Corrosiveness acc. to IEC 60754-2

130 H BK Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

18 AWG (1.00 mm²)

7143200

2

0.339

13

72

7143201

3

0.355

19

83

7143202

4

0.378

26

97

7143203

5

0.410

32

112

7143204

7

0.437

45

138

7143205

12

0.552

77

211

7143206

18

0.634

116

288

7143207

25

0.733

161

382

16 AWG (1.50 mm²)

7143210

2

0.378

19

92

7143211

3

0.398

26

108

7143212

4

0.426

39

128

7143213

5

0.461

48

149

7143214

7

0.496

68

185

7143215

12

0.634

116

287

7143216

18

0.741

174

401

7143217

25

0.855

242

537

14 AWG (2.50 mm²)

7143220

2

0.426

32

124

7143221

3

0.445

48

147

7143222

4

0.481

65

176

7143223

5

0.524

81

206

7143224

7

0.567

113

262

7143225

12

0.737

194

419

7143226

18

0.867

290

591

7143227

25

1.017

403

814

12 AWG (4.00 mm²)

7143230

3

0.496

77

195

7143231

4

0.540

103

236

7143232

5

0.587

129

280

10 AWG (6 mm²)

7143235

3

0.548

116

253

7143236

4

0.595

155

311

7143237

5

0.662

194

376

8 AWG (10 mm²)

7143240

4

0.737

258

509

7143241

5

0.816

323

615

6 AWG (16 mm²)

7143245

4

0.839

413

719

7143246

5

0.930

516

871

4 AWG (25 mm²)

7143247

4

1.032

645

1096

135 CH BK Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

18 AWG (1.00 mm²)

7143250

2

0.370

27

81

7143251

3

0.386

34

94

7143252

4

0.410

42

111

7143253

5

0.441

51

128

7143254

6

0.469

65

155

7143255

12

0.591

114

242

7143256

18

0.682

160

332

7143257

25

0.780

212

432

16 AWG (1.50 mm²)

7143260

2

0.410

36

100

7143261

3

0.429

47

119

7143262

4

0.457

58

140

7143263

5

0.493

70

163

7143264

7

0.528

92

202

7143265

12

0.682

160

327

7143266

18

0.796

239

464

7143267

25

0.910

319

614

135 CH BK Product List

Item No.

Number of
Conductors

Nominal Outer(in)

Copper.weight (lbs/mft)

Approx.weight (lbs/mft)

14 AWG (2.50 mm²)

7143270

2

0.457

53

132

7143271

3

0.447

71

163

7143272

4

0.512

90

197

7143273

5

0.556

106

230

7143274

7

0.607

151

310

7143275

12

0.792

258

482

7143276

18

0.922

369

679

7143277

25

1.080

512

921

12AWG (4.00 mm²)

7143280

3

0.528

113

220

7143281

4

0.579

142

268

7143282

5

0.626

168

317

10AWG (6.00 mm²)

7143285

3

0.587

156

278

7143286

4

0.634

201

349

7143287

5

0.701

239

408

8 AWG (6.00 mm²)

7143290

4

0.792

330

562

7143291

5

0.863

394

669

6 AWG (16 mm²)

7143295

4

0.887

494

778

7143296

5

0.985

597

946

4 AWG (25 mm²)

7143297

4

1.095

757

1131

Order Informations

Marking

HELLOSIGNAL PUR S 17/PUR S 27 XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
