HELLOSIGNAL Hybrid electronic control cable

▉ Application

This cable apply to wiring for intelligent system of industrial robots. And it apply to intelligent
control system of integrated electric cabinet and the system of control cabine.It has
good performance of resistant to interference.

▉ Cable Construction

Conductor:flexible ultra-fine stranded copper wirer

Insulation:Special-thermoplastic TPE mixture

insulation color:one is yellow/green insulated wire,

                   others are white insulated wire print black font

Shield: high strength tinned copper braid

Jacket: high abrasion and heat resistant PVC jacket;black

▉ Product Feature

Fire resistance meets FT1&IEC60332-1

Good mechanical properties;Good oil resistant

Good capability of electric insulation and resistant to chemicals

High quality screen

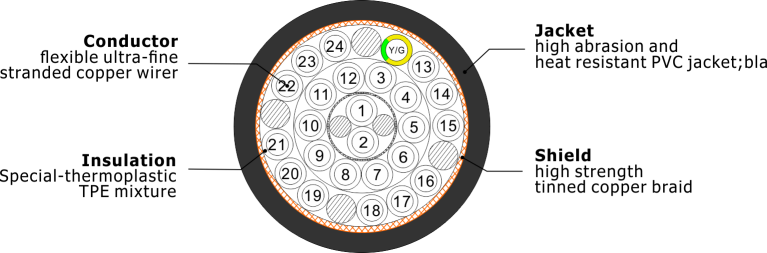

▉ Cross Section

▉ Technical data

Temperature range

Bend:  -30℃ to 80℃

Static: -50℃ to 80℃

Rated voltage

UL：600V

IEC/VDE： 450V/750V

Insulation resistance

20℃≥100M ohm/km

Min bending radius

Fixed:    5D(D=cable diameter)

Test voltage

（core/core） 4000V/min

（core/shied）3500V/min

Torsion angle

≤±180°

▉ Product List

Item No.

Spec.(core*Nominal cross-section)mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7147096

23*1.0mm²+（2*1.0mm²）C

16.5

220

355

▉ Order Informations

Marking

HELLOSIGNAL Hybrid electronic control cable XXXFT/M

Package

500FT/PULL BOX, 1000FT/Wooden Spool,Pallet …

Delivery time

100M/Reel, 300M/Wooden Spool

Brand

HELLOSIGNAL® OR OEM
