MULTI BUS hybrid cable

Application

This cable apply to wiring for intelligent system of industrial robots. And it apply to
intelligent control system of complete equipments, integrated installation
of intelligent home and integrated wiring system of intelligent plant.

Cable Construction

Conductor: flexible ultra-fine stranded copper wirer

Insulation: Special-thermoplastic TPE mixture

Filler: special material of filler

Shield: high strength tinned copper braid

Jacket: high abrasion and heat resistant PVC jacket;purple

Product Feature

Fire resistance meets FT1&IEC60332-1

Good mechanical properties;High quality screen

Good oil resistant

Good capability of electric insulation and resistant to chemicals

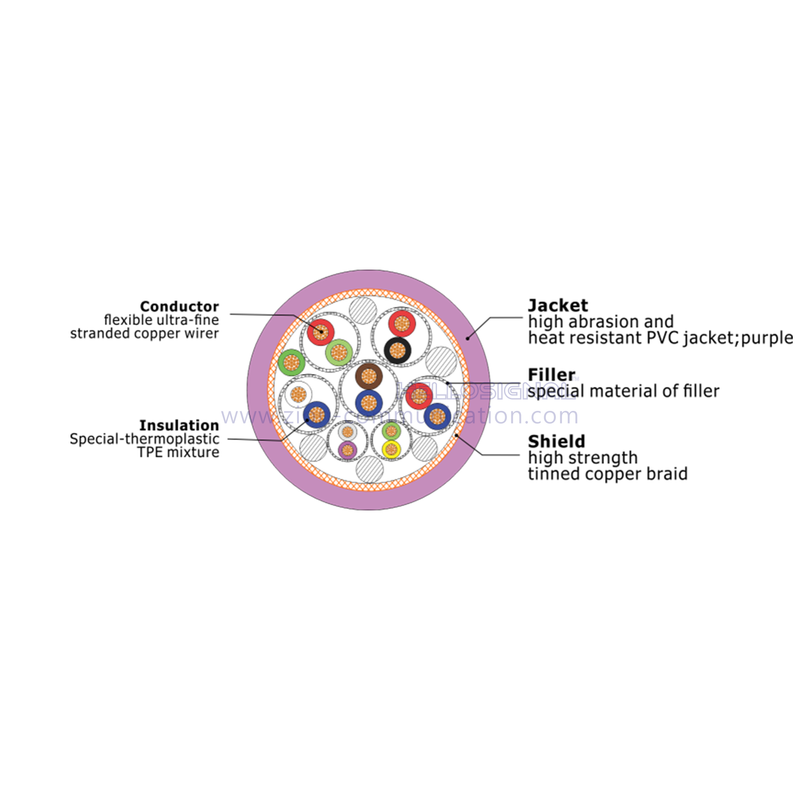

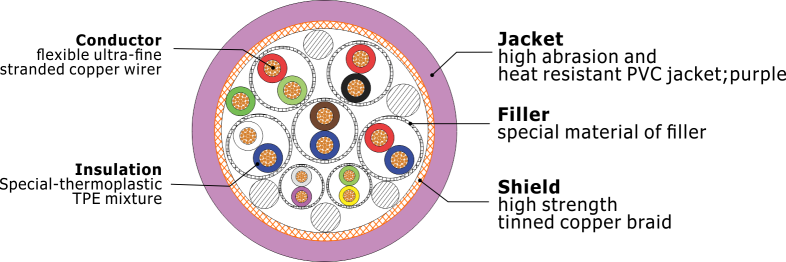

Cross Section

 MULTI BUS hybrid cable

Technical data

Temperature range

Bend:   -30 to 80

Static:  -50 to 80

Rated voltage

30V

IEC/VDE   MAX350V

Insulation resistance

20≥100M ohm/km

Min bending radius

Fixed 5D(D=cable diameter)

Moving: 12D(D=cable diameter)

Test voltage

core/core 1500V/min

core/shied1000V/min

Characteristic impedance

2PX0.25mm²(interbus):100±15Ω(f=1~10MHz)

2PX0.34mm²(profibus):150±15Ω(f=3~20MHz)

2X0.34mm²(DeviceNet):120±15Ω(f=500kHz~1MHz)

Product List

Item No.

Spec.(core*Nominal
cross-section)mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7147080

Interbus(2*0.25mm²)+Devicenet(2*0.34mm²)         +(2*1.0mm²)+1.0mm²

210.5

65

135

7147081

Interbus(2P*0.25mm²)+Devicenet(2P*0.34mm²)           +(2P*1.0mm²)+profibus(2*0.34mm²)+1.0mm²

214.5

130

270

Order Informations

Marking

HELLOSIGNAL MULTI BUS hybrid cable XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
