HD40
hellosignal
7102133
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102133 | ||
Construction Parameters: | ||
Inner Conductor | 0.42mm Cu | |
Dielectric | 1.9mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 3.6mm PVC | |
Power Wire Conductor | 2x(32×0.19mmCU ) | |
Power wire Diameter of insulation | 2.2mmPVC(Red,Black) | |
Jacket | 7.4×6.0mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 129.2 Ω/km | |
Capacitance | 77 ±3 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.82 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 7.4×6.0mm | |

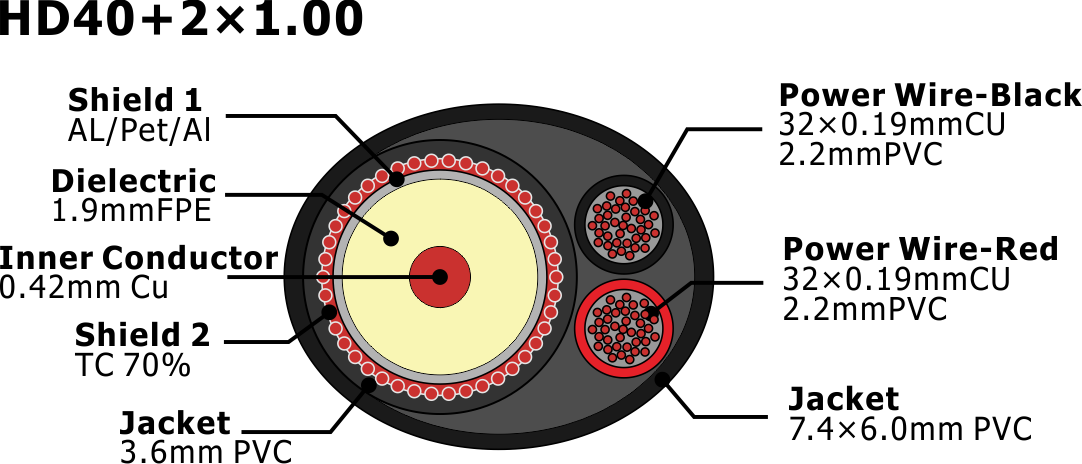

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 1.00 | 3.05 |
50 | 3.14 | 9.59 |
100 | 4.44 | 13.55 |
300 | 7.69 | 23.45 |
450 | 9.41 | 28.71 |
865 | 13.05 | 39.80 |
1000 | 14.03 | 42.79 |
1750 | 18.56 | 56.60 |
2150 | 20.57 | 62.73 |
2500 | 22.17 | 67.63 |
3000 | 24.29 | 74.09 |
Order Informations: | ||
Marking | HELLOSIGNAL HD40+2×1.00 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102133 | ||
Construction Parameters: | ||
Inner Conductor | 0.42mm Cu | |
Dielectric | 1.9mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 3.6mm PVC | |
Power Wire Conductor | 2x(32×0.19mmCU ) | |
Power wire Diameter of insulation | 2.2mmPVC(Red,Black) | |
Jacket | 7.4×6.0mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 129.2 Ω/km | |
Capacitance | 77 ±3 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.82 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 7.4×6.0mm | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 1.00 | 3.05 |
50 | 3.14 | 9.59 |
100 | 4.44 | 13.55 |
300 | 7.69 | 23.45 |
450 | 9.41 | 28.71 |
865 | 13.05 | 39.80 |
1000 | 14.03 | 42.79 |
1750 | 18.56 | 56.60 |
2150 | 20.57 | 62.73 |
2500 | 22.17 | 67.63 |
3000 | 24.29 | 74.09 |
Order Informations: | ||
Marking | HELLOSIGNAL HD40+2×1.00 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
HD40+2×1.00
