HD60
hellosignal
7102135
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102135 | ||
Construction Parameters: | ||
Inner Conductor | 0.60mm Cu | |
Dielectric | 2.8mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 4.5mm PVC | |
Power Wire Conductor | 2x(24×0.19mmCU ) | |
Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | |
Jacket | 8.1×6.7mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.82 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 8.1×6.7mm | |

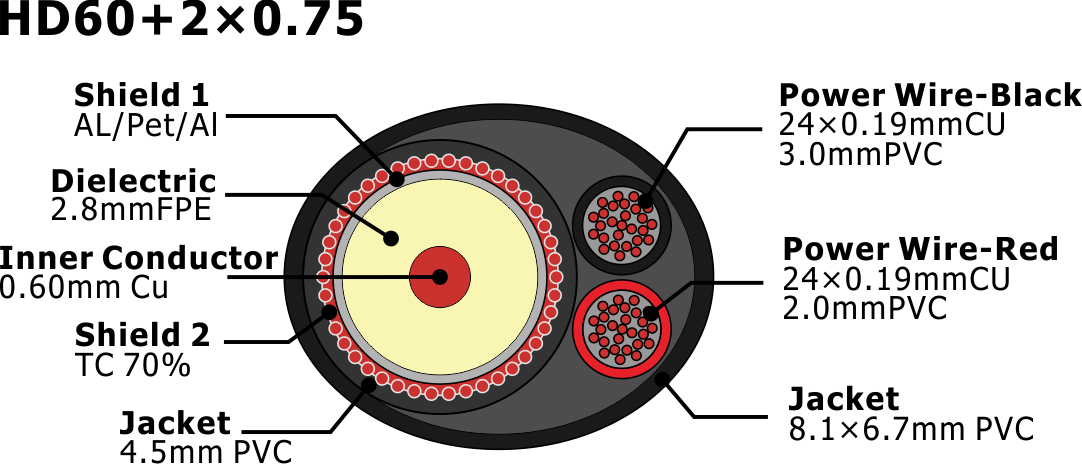

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.80 | |
5 | 2.80 | |
10 | 3.90 | |
50 | 7.90 | |
100 | 11.10 | |
200 | 15.10 | |
400 | 21.80 | |
700 | 29.80 | |
900 | 34.40 | |
1000 | 36.00 | |
Order Informations: | ||
Marking | HELLOSIGNAL HD60+2×0.75 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102135 | ||
Construction Parameters: | ||
Inner Conductor | 0.60mm Cu | |
Dielectric | 2.8mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 4.5mm PVC | |
Power Wire Conductor | 2x(24×0.19mmCU ) | |
Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | |
Jacket | 8.1×6.7mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.82 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 8.1×6.7mm | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.80 | |
5 | 2.80 | |
10 | 3.90 | |
50 | 7.90 | |
100 | 11.10 | |
200 | 15.10 | |
400 | 21.80 | |
700 | 29.80 | |
900 | 34.40 | |
1000 | 36.00 | |
Order Informations: | ||
Marking | HELLOSIGNAL HD60+2×0.75 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
HD60+2×0.75
